DirectOut DANTE.DANTE.SRC A Slot
DirectOut DANTE.DANTE.SRC A Slot
In stock
Couldn't load pickup availability

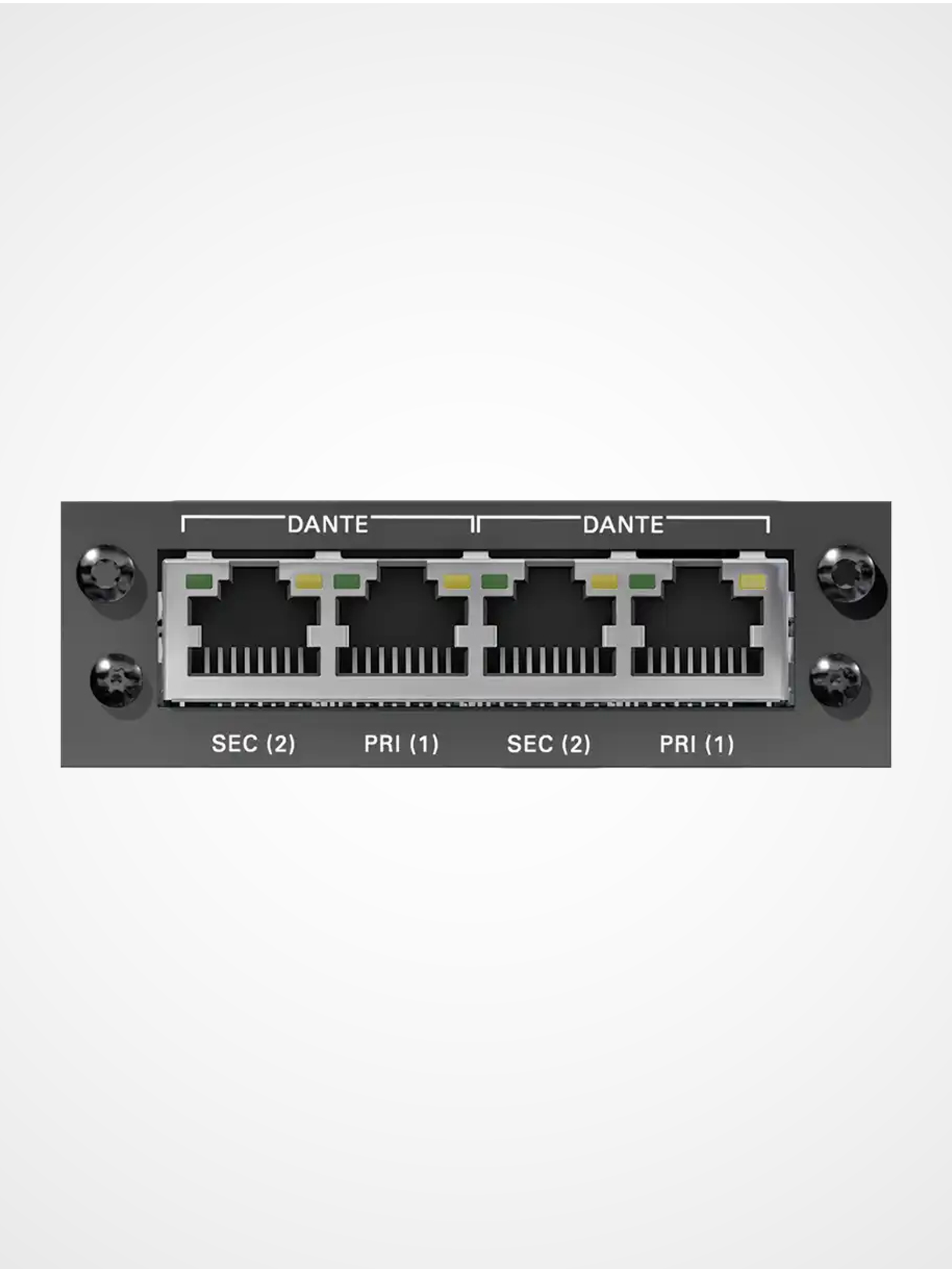

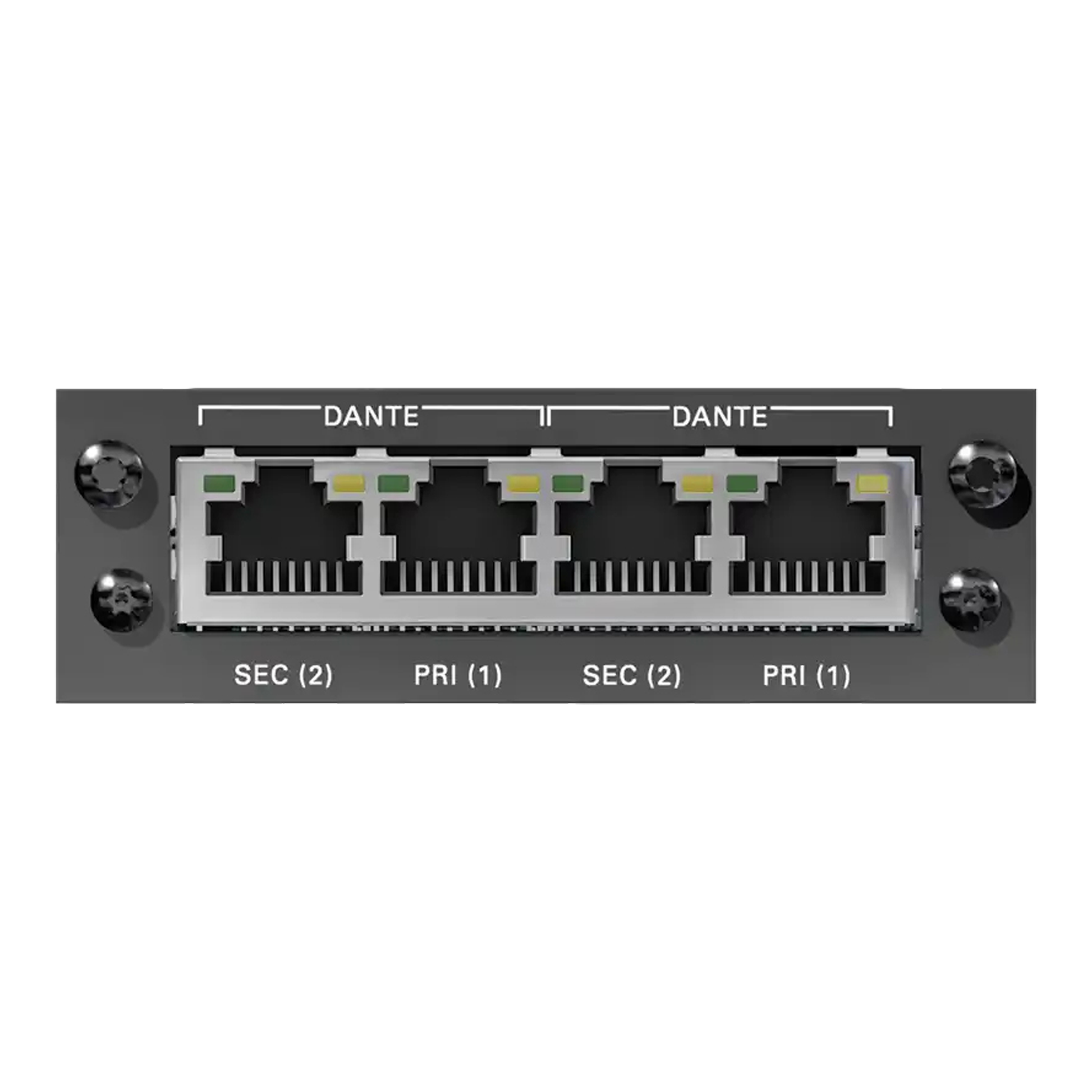

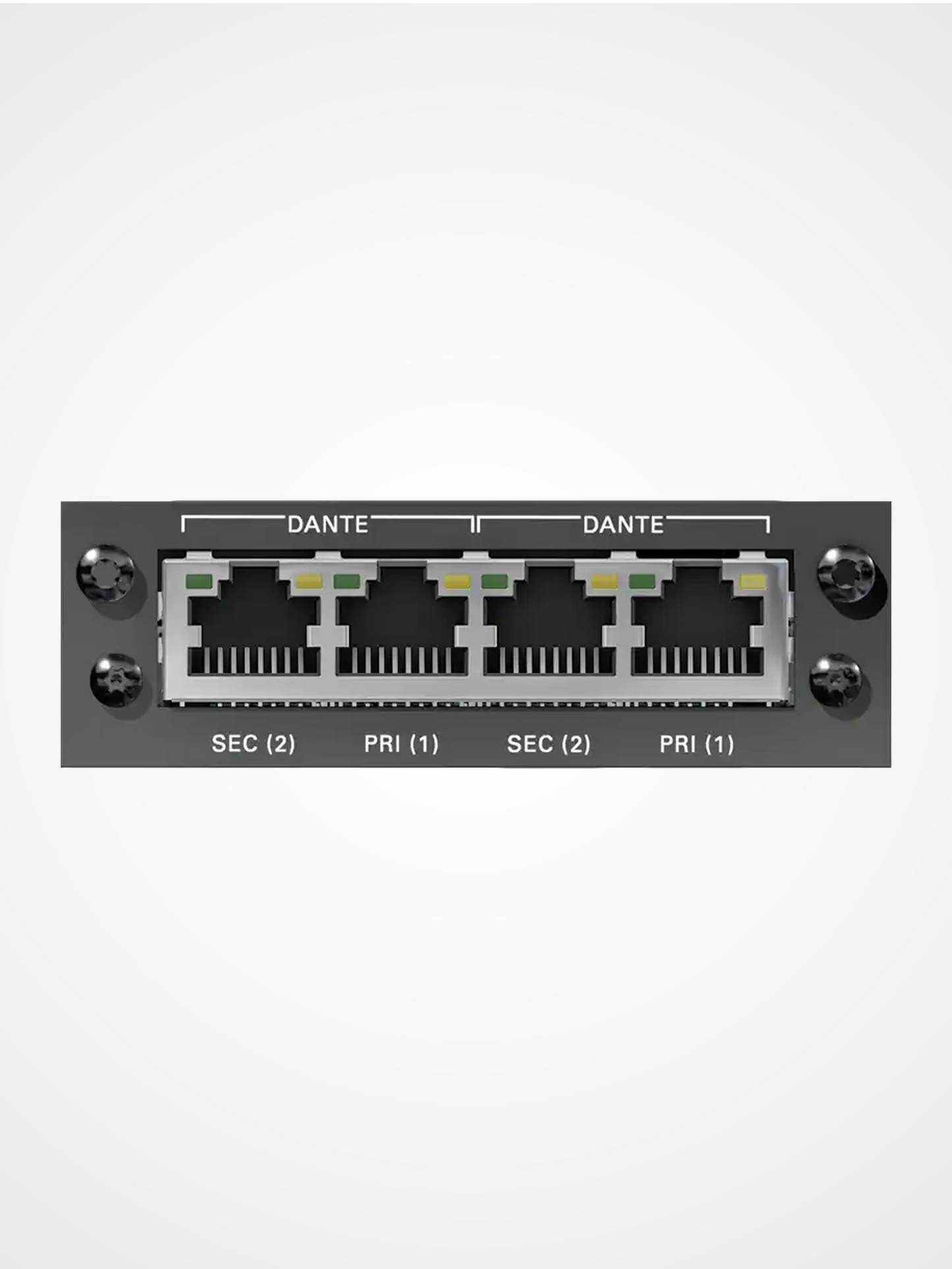

DANTE.DANTE.SRC.IO is a dual network audio module for the PRODIGY Series and MAVEN.A to interface with 2 x 64 channels of Dante streams.
One module, two audio engines
Hosting two Brooklyn 3 boards, the module offers 2 x 64 channels of Dante input and output, resulting in 128 channels on a single module in the A Slot format. It can also be connected to two different Dante environments with 64 channels each.
Sample Rate Conversion
Individual HD SRC for bi-directional sample rate conversion is on board as a standard.
The two audio network boards can be operated at different sample rates.
Dual network modules ensure a seamless connection across clock boundaries and different audio protocols on a single module.
Stream Redundancy
There are 2 x 2 independent network interfaces to connect each protocol via a second stream (primary/secondary).
The amount of audio channels is reduced at higher sample rates - 2 x 32 channels @ 2 FS or 2 x 16 channels @ 4 FS.
Dante is an audio networking technology from Audinate.
Collapsible content
Technical Specs
Key features Dante
- 2 x 32 streams
- 2 x 64 channels (1 FS), 2 x 32 channels (2 FS), 2 x 16 channels (4 FS) - Dante
- Sample rate 44.1 kHz up to 192 kHz
- Sample rate conversion (HD SRC on board)
- Stream redundancy‚ primary/secondary
- 2 x Switches configurable (Primary / Secondary)
- Ethernet layer 3 ('Audio over IP')
- 2 x 2 RJ45 gigabit ethernet
- Remote control via Dante Controller, browser and globcon, DDM ready
NOTE: DNA modules are not supported by Lawo HOME.
Case Studies
FAQ
What is the difference between single network and dual network A Slot modules?
Single network A Slot modules provide one audio network interface, while dual network modules combine two networking technologies in one card, such as Dante-to-Milan or Dante-to-RAVENNA. Dual network modules are ideal for bridging different audio ecosystems and supporting hybrid workflows.
Which DIRECTOUT devices support A Slot modules?
A Slot modules are supported across several DIRECTOUT smart audio platforms, including PRODIGY.MP, PRODIGY.MX, PRODIGY.MC, and MAVEN.A. The number of available A Slots varies by hardware model.
What is the purpose of SRC in DIRECTOUT module names?
SRC stands for Sample Rate Conversion. Modules with SRC functionality include integrated high-definition sample rate conversion, enabling stable interoperability between devices running on different clock domains or sample rates.
What is the maximum channel count for A Slot modules?
Depending on the module type, A Slot modules can support up to 256 audio channels. Certain high-capacity modules, such as MADI4.IO and RAVENNA modules with optional licensing, offer expanded channel capabilities.
Which audio networking protocols are supported by DIRECTOUT A Slot modules?
DIRECTOUT A Slot modules support major professional audio networking standards including Dante, RAVENNA, AES67, ST 2110, Milan/AVB, and SoundGrid. This flexibility enables seamless integration into modern IP-based audio infrastructures.
