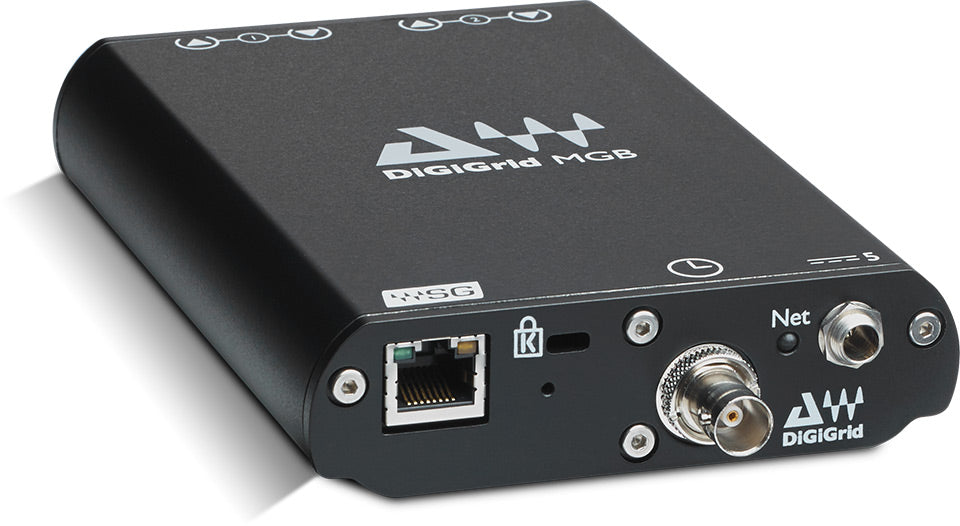

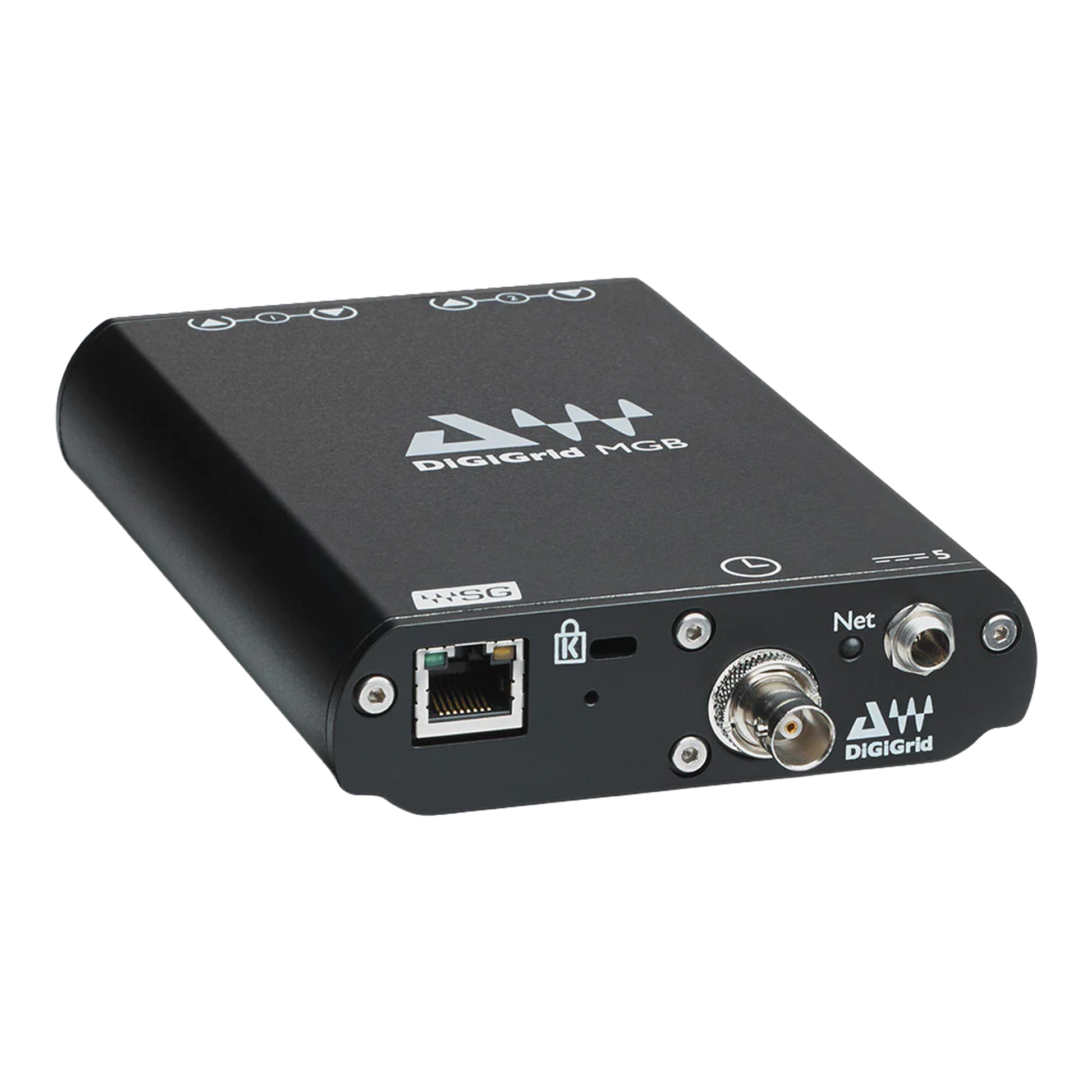

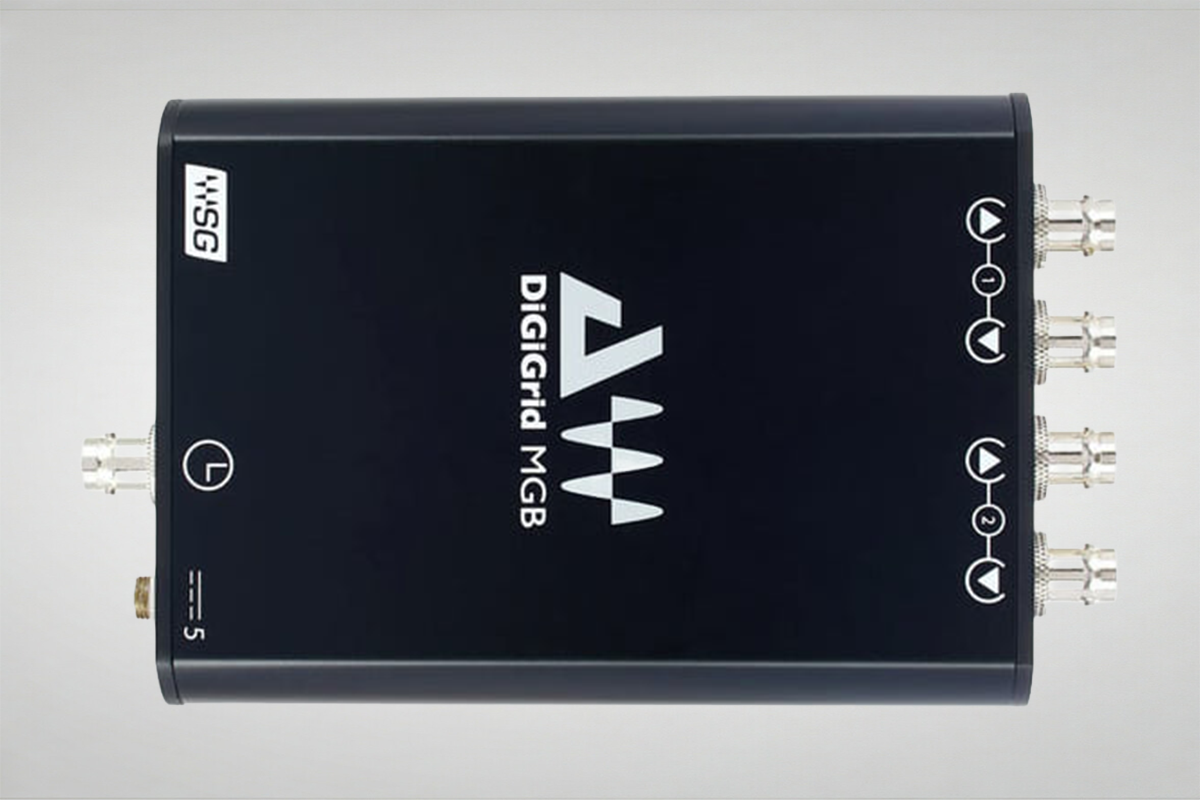

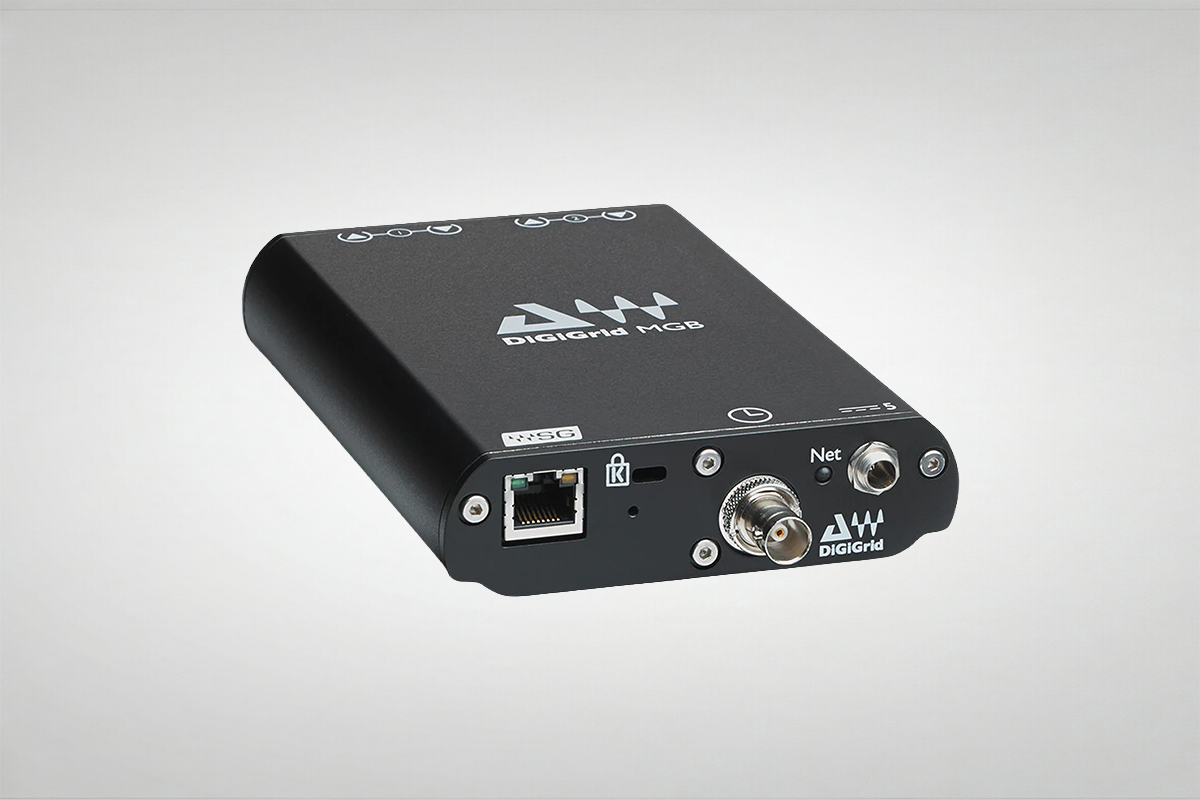

DiGiGrid MGB MADI to SoundGrid Interface for LV1 & DAW Workflows
The DiGiGrid MGB is a compact, high-performance MADI-to-SoundGrid interface, allowing you to connect any MADI-enabled device directly to the Waves SoundGrid network. Whether you’re working in live sound, broadcast, or studio recording, the MGB delivers reliable, ultra-low-latency performance in a portable form factor.
Perfect for integrating MADI I/O into a Waves eMotion LV1 Classic system, the MGB also functions as a recording and playback interface with your DAW using the SoundGrid QRec driver ideal for capturing multi-channel performances or virtual soundchecks.
With up to 128 channels at 48kHz, or 64 channels at 96kHz, the MGB is an ideal solution for professionals who need compact, dependable MADI connectivity with the flexibility of SoundGrid.
Key Features:
• MADI to SoundGrid interface — up to 128 channels at 48kHz / 64 at 96kHz
• Ideal for connecting MADI devices to Waves LV1 Classic setups
• Record and play back directly to/from a DAW using the QRec driver
• Ultra-low latency audio networking and plugin processing
• Single BNC MADI input with Word Clock I/O
• Rugged, compact form factor — perfect for portable rigs and flypacks
• Works with SoundGrid Studio ASIO/Core Audio drivers Mac and PC
• Compatible with SoundGrid DSP servers for real-time plugin processing*
*SoundGrid DSP server required for real-time processing (sold separately)
Available now from Nifty Audio, the UK’s exclusive DiGiGrid and Waves distributor. Next day delivery across the UK.
Collapsible content
Technical Specs
Package Contents

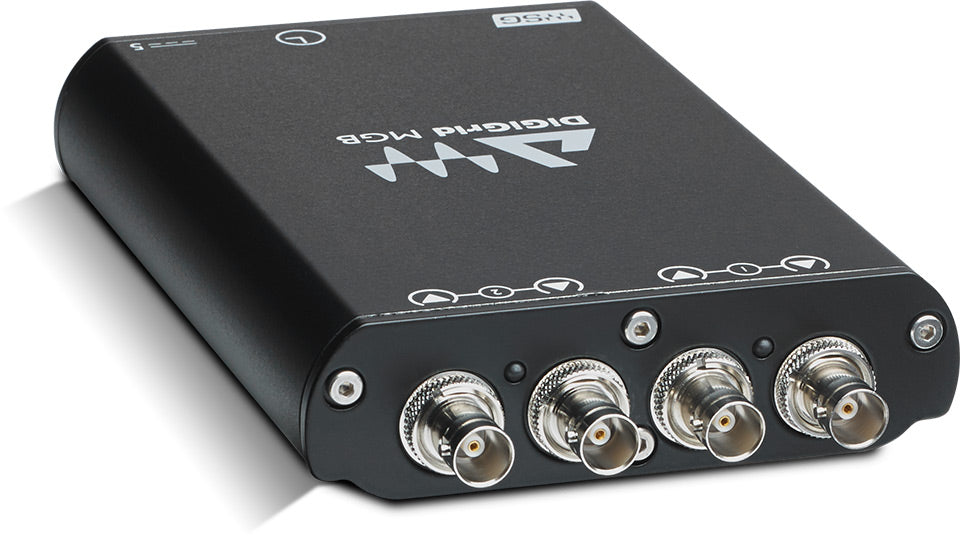

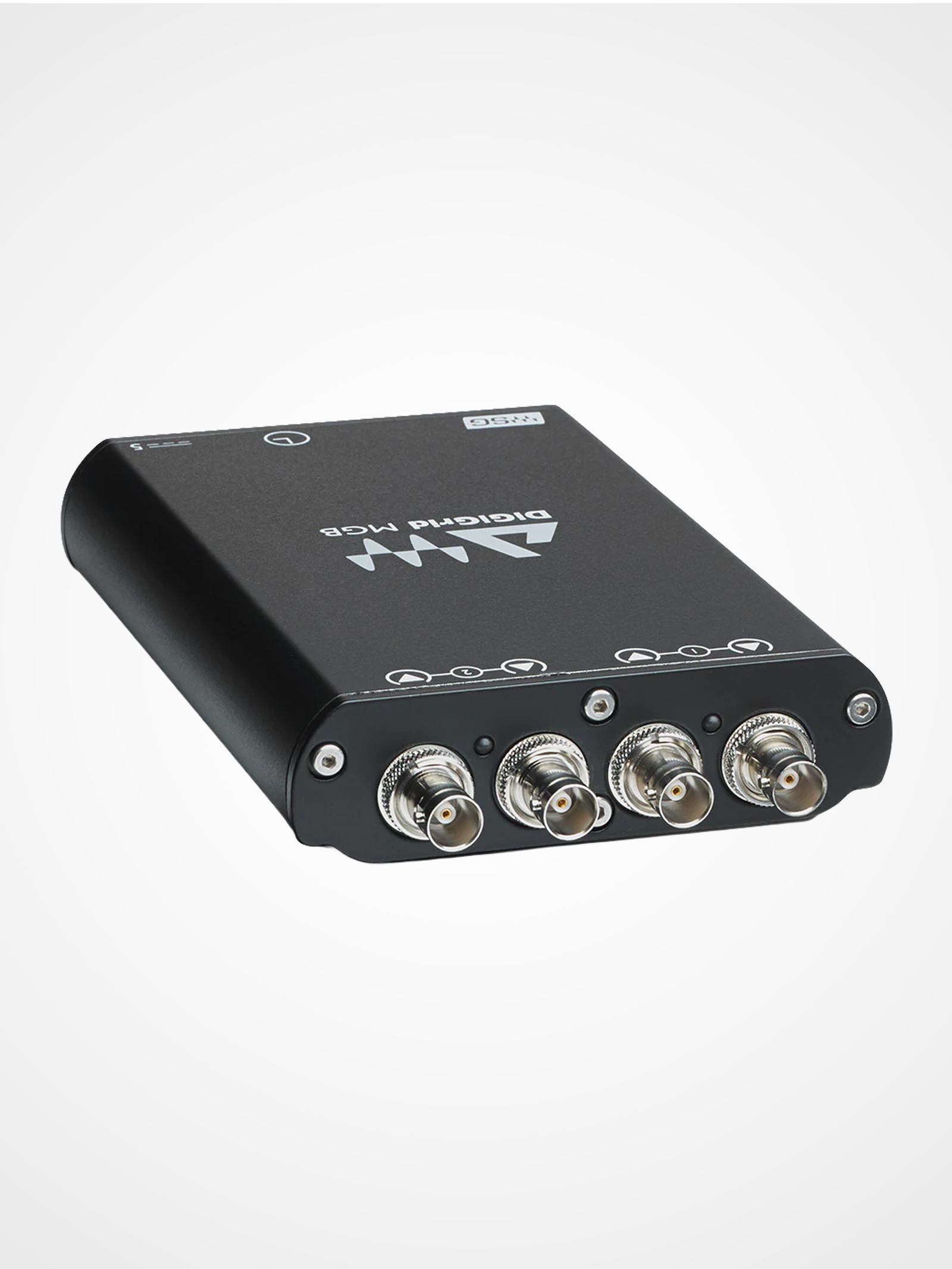

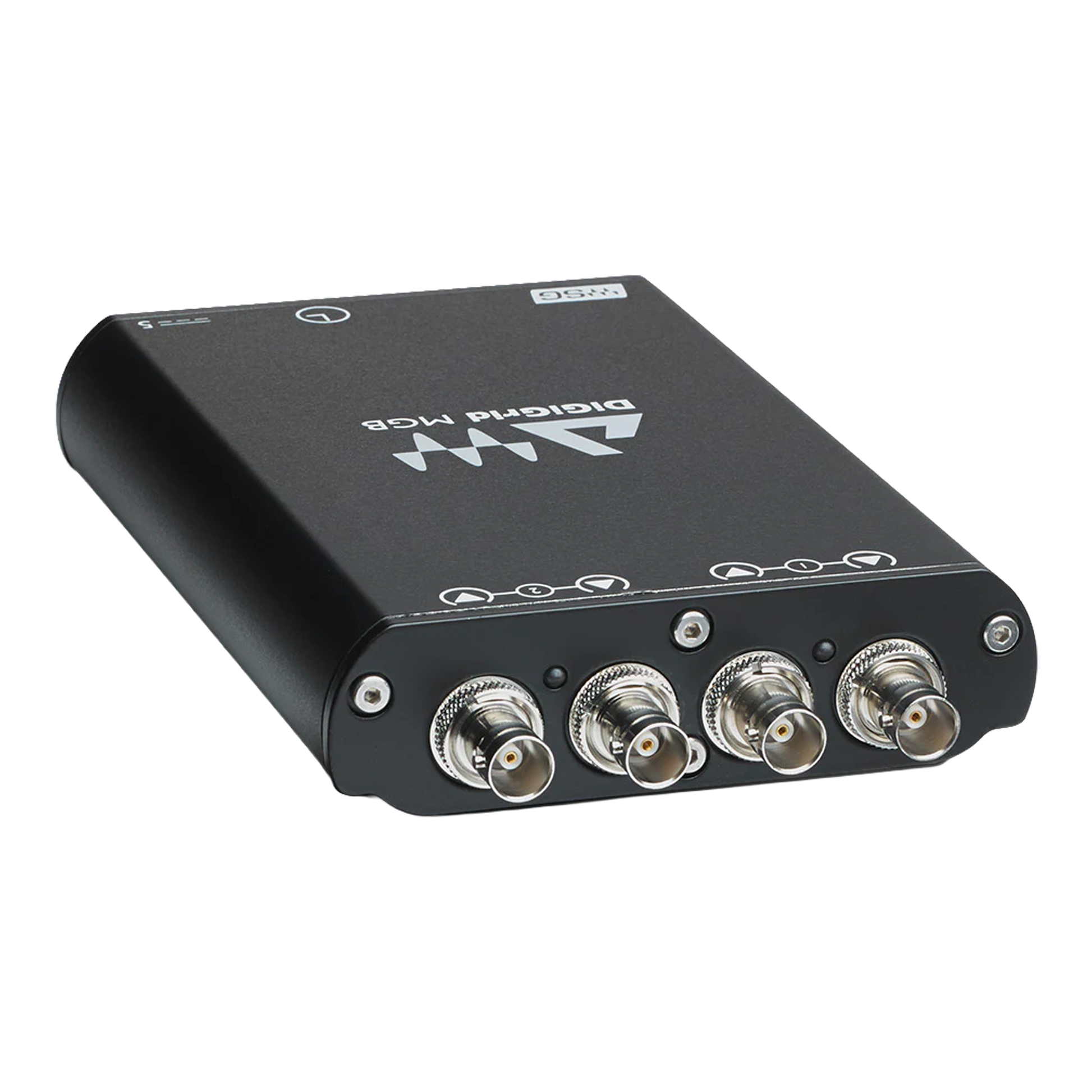

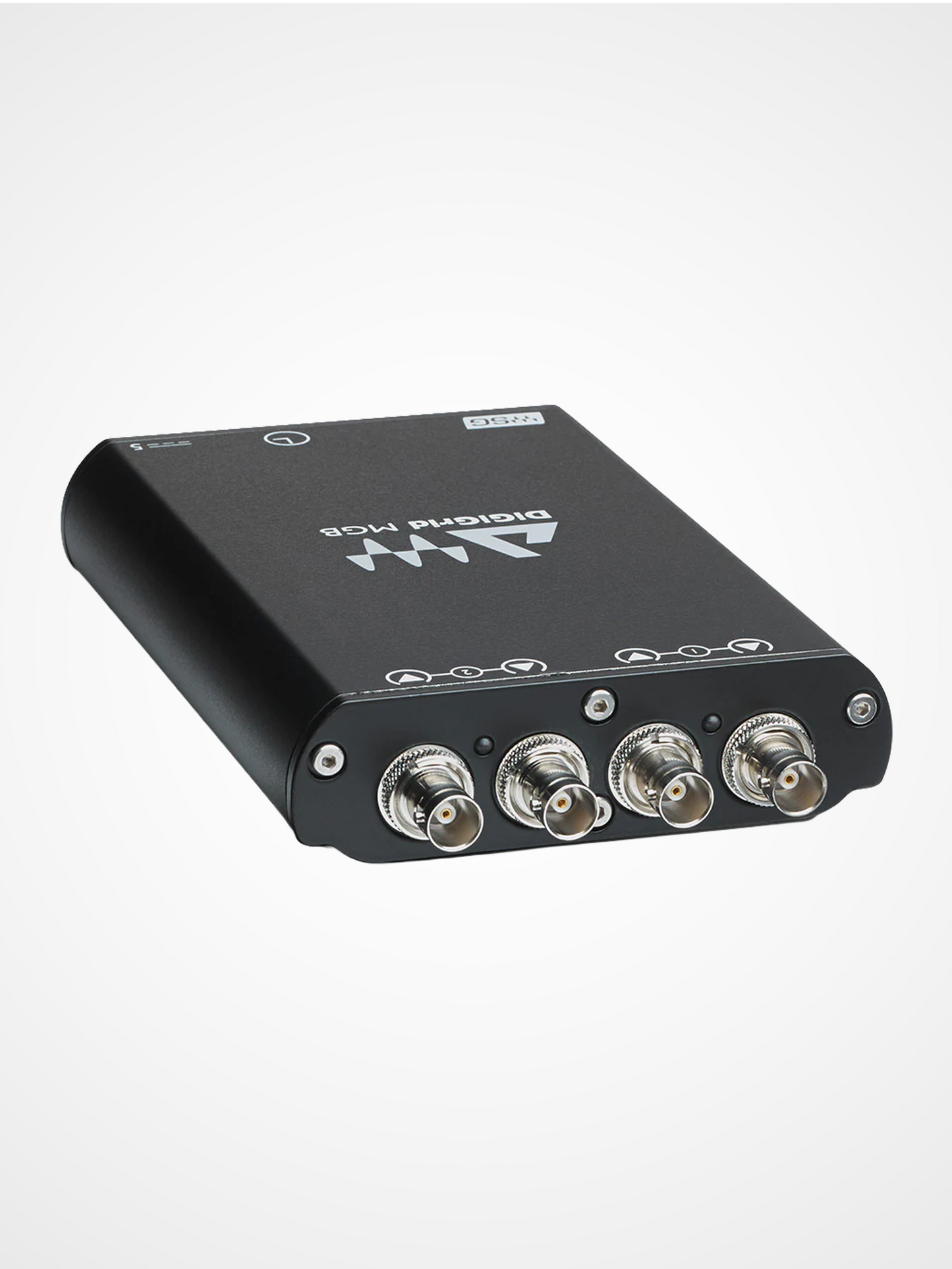

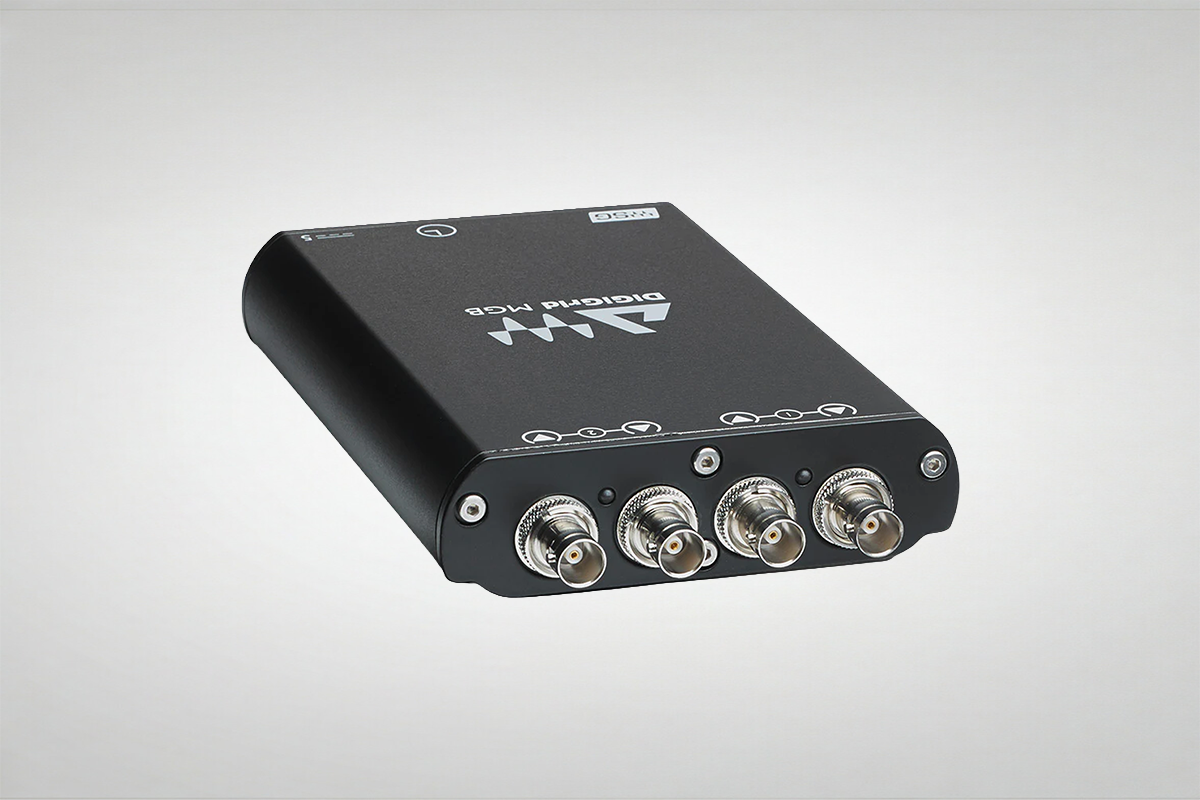

- MADI Coaxial I/O (BNCs)
- Supported sample rates: 44.1, 48, 88.2, 96 kHz
- 112/128 channel I/O @ 48kHz
- 56/64 channel I/O &commat 96kHz
- Support for 64chn and 56chn modes
- Support for double wire (48k frame) and single wire (96k frame) &commat 96kHz
- Clock Synchronisation via (in fallback order): Word Clock input, MADI (port A), SoundGrid (SoE), Internal 1 SoundGrid port (RJ45)
- Reset switch
Package Contents
MGB unit
Universal power adaptor with interchangeable plugs (UK, US, EU, AU) (100-240V)
Ethernet cable: Cat 5e (2 meters)
Registration card
Dimensions
Width: 10.6 cm / 4.17 inches
Height: 14.82 cm / 5.83 inches
Depth: 2.9 cm / 1.14 inches
Device Weight: 0.4 kg / 0.88 lbs
Case Studies
FAQ
How many channels does the MGB support?
The MGB supports:
- Up to 128 channels at 44.1/48 kHz
- Up to 64 channels at 88.2/96 kHz
This allows it to handle large-format live and broadcast consoles over a single interface.
What is the latency of the DiGiGrid MGB?
The MGB operates with extremely low latency of approximately 0.8 ms when used within a properly configured SoundGrid system. This makes it suitable for live sound and broadcast workflows where real-time processing is required.
What can the DiGiGrid MGB be used for?
The MGB is typically used in:
- Live concert and touring systems
- Broadcast and OB truck setups
- Recording and virtual soundcheck workflows
- Studio systems requiring MADI expansion
It is designed for professional environments where MADI needs to integrate into networked audio systems.
Can the MGB record to multiple systems at the same time?
Yes. The MGB can record to two computers simultaneously, allowing workflows such as:
- Primary recording + backup recording
- Live capture + virtual soundcheck
- Parallel DAW sessions
Can the MGB be used with any MADI console?
Yes. The MGB is designed to connect any standard coaxial MADI device into a SoundGrid network, making it compatible with a wide range of digital consoles and stage systems.
