DirectOut AN8.IO C Slot

Name: DirectOut AN8.IO C Slot
Brand: DirectOut
SKU: DOAIO0029
Price: 744.00 GBP
Availability: InStock

£744.00

Tax included. Shipping calculated at checkout.

Ready to ship

More Information

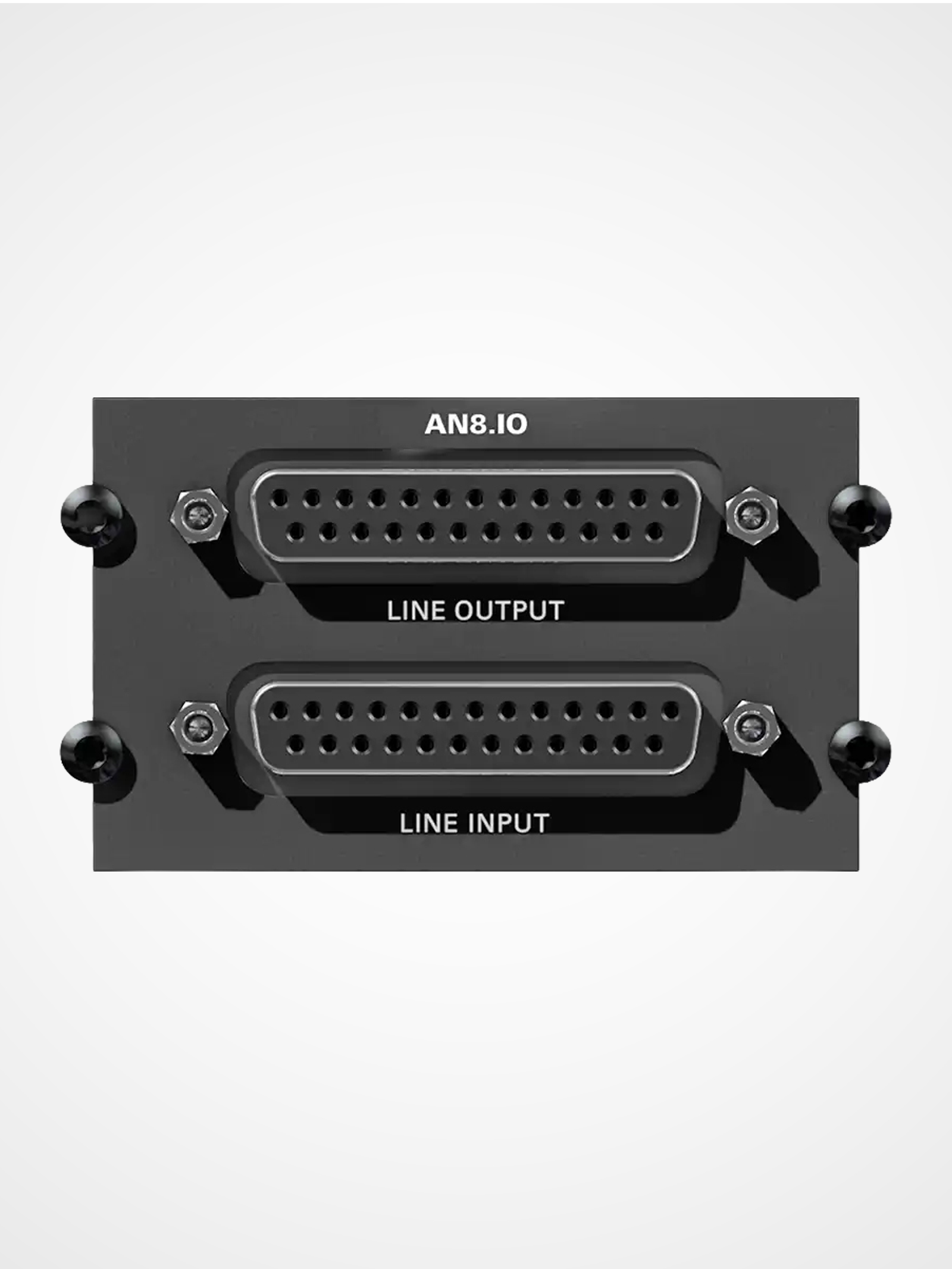

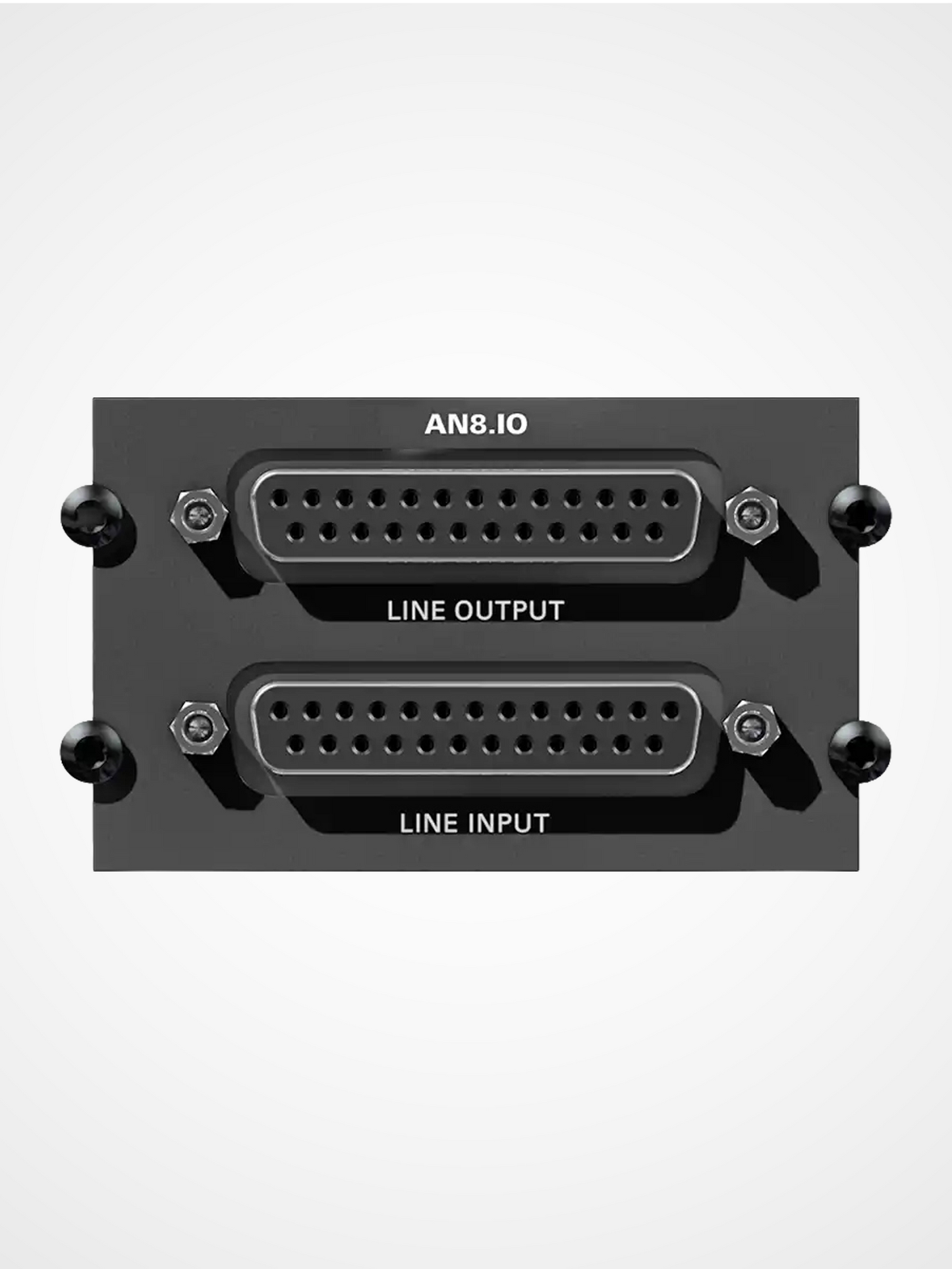

AN8.IO is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A.

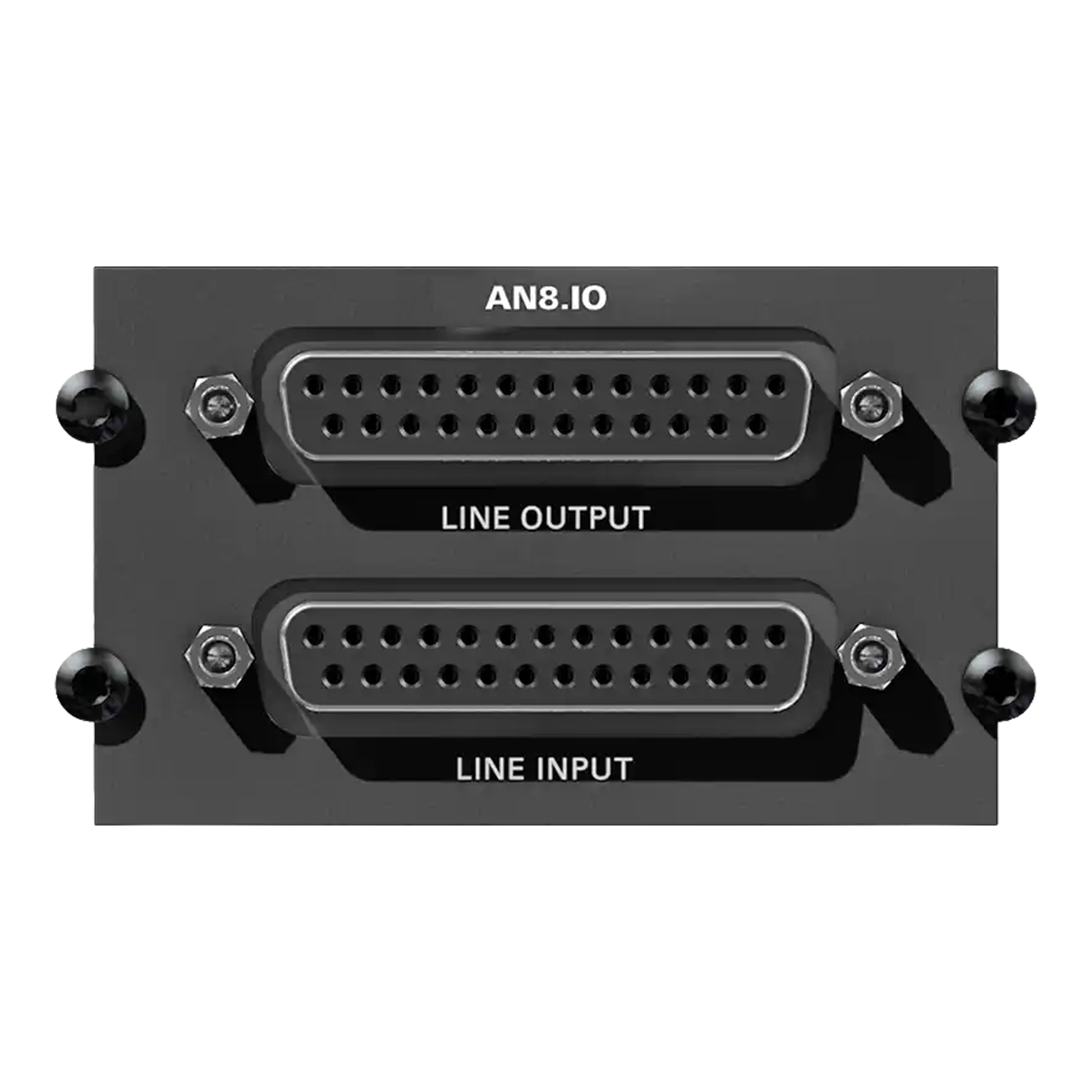

Eight analog audio input and output channels are interfaced via two DSUB-25 connectors.

The line inputs and outputs are balanced and the reference level can be adjusted to either +15 / +18 or +24 dBU via jumper - individually per channel and per input or output.

8 channels line input/output
reference levels +15 / +18 / +24 dBu via jumper

A/D

SNR: < -117,6 dB RMS (20 Hz - 20 kHz) / -119,9 dB(A)
THD @ -1 dBFS: < -119 dB
Frequency response: < -0,15 dB (10 Hz) / -0,15 dB (20 kHz)

D/A

SNR: -116,8 dB RMS (20 Hz - 20 kHz) / -119,5 dB(A)
THD @ -1 dBFS: -109 dB
Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz)
2 x DSUB-25 connector (input/output)*, according to AES59

* suitable cabling to connect with BREAKOUT is available

FAQs

C Slot modules are supported by several DIRECTOUT smart audio platforms, including:
PRODIGY.MP
PRODIGY.MC
MAVEN.A
Yes. DIRECTOUT C Slot modules are widely used in broadcast, live touring, recording studios, theatres, and installed AV systems where reliable, high-quality analog and digital audio conversion is essential.
Yes. DIRECTOUT smart audio platforms allow C Slot modules to operate alongside A Slot network audio modules such as Dante, RAVENNA, Milan/AVB, and SoundGrid for hybrid audio infrastructures.
Yes. Users can populate multiple C Slots within compatible platforms to expand microphone inputs, line-level connectivity, or AES3 channels as production requirements grow.
