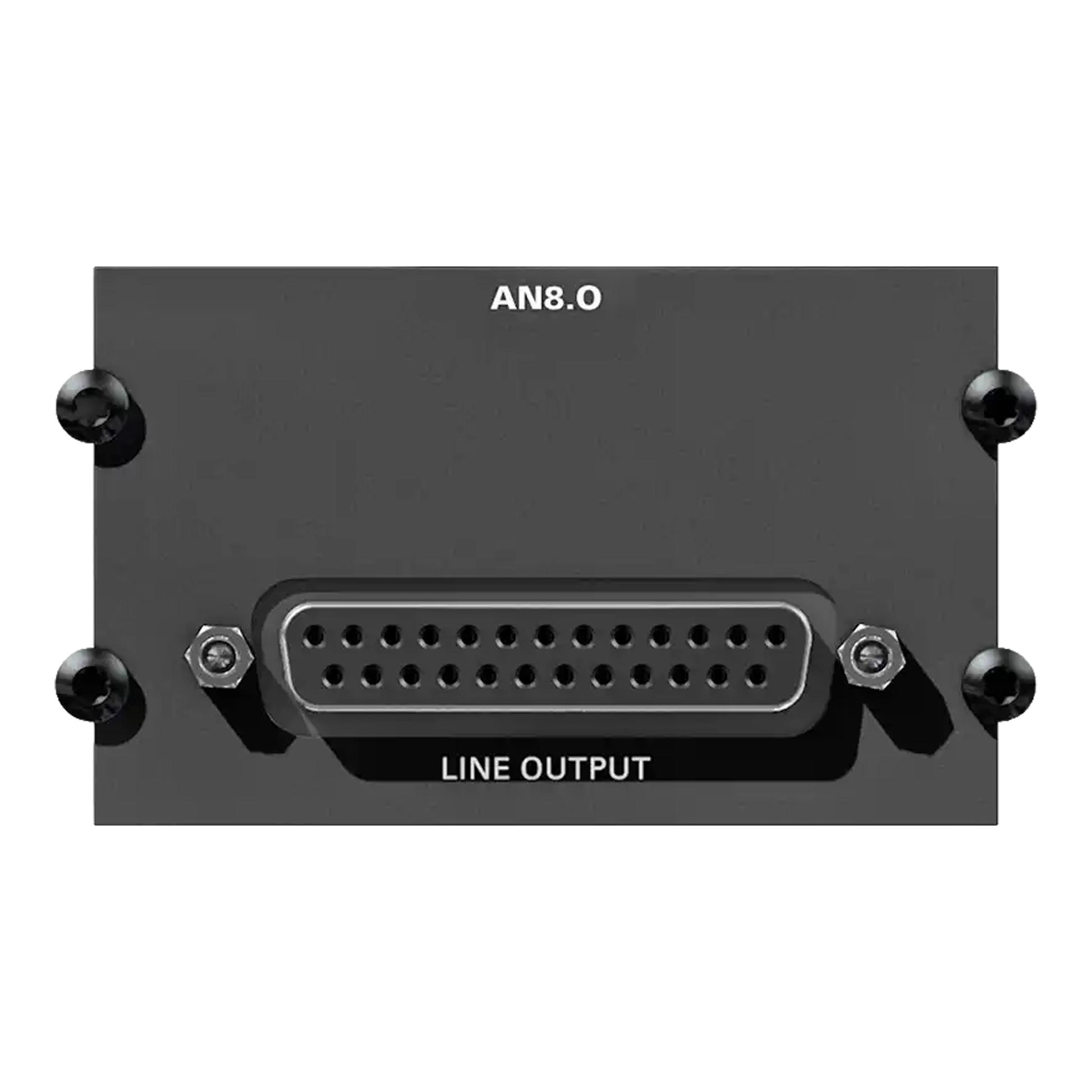

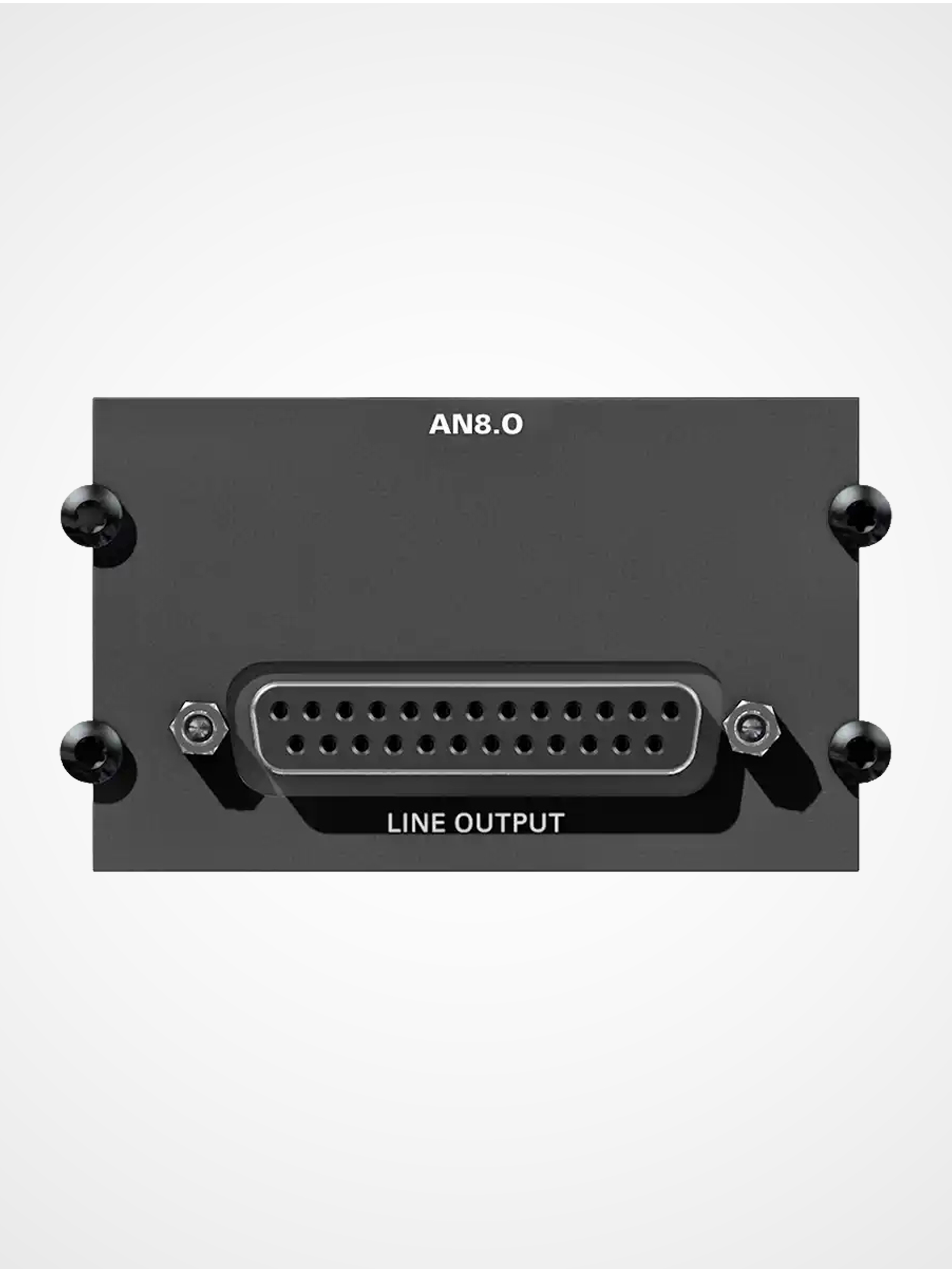

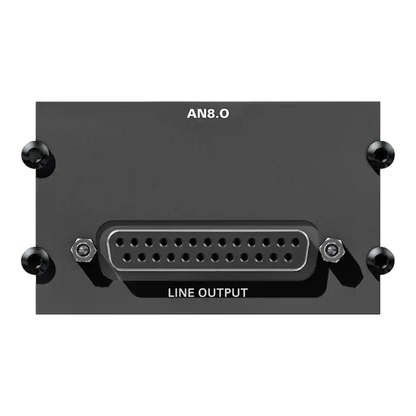

DirectOut AN8.O C Slot

• 8 channels line output
• reference levels +15 / +18 / +24 dBu via jumper
• SNR: -116,8 dB RMS (20 Hz - 20 kHz) / -119,5 dB(A) THD @ -1 dBFS: -109 dB
• Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz)
• 1 x DSUB-25 connector (output)*, according to AES59

* suitable cabling to connect with BREAKOUT is available

Which DIRECTOUT platforms support C Slot modules?

C Slot modules are supported by several DIRECTOUT smart audio platforms, including:

• PRODIGY.MP
• PRODIGY.MC
• MAVEN.A

Are DIRECTOUT C Slot modules suitable for broadcast and live production?

Yes. DIRECTOUT C Slot modules are widely used in broadcast, live touring, recording studios, theatres, and installed AV systems where reliable, high-quality analog and digital audio conversion is essential.

Can C Slot modules be combined with network audio modules?

Yes. DIRECTOUT smart audio platforms allow C Slot modules to operate alongside A Slot network audio modules such as Dante, RAVENNA, Milan/AVB, and SoundGrid for hybrid audio infrastructures.

Are DIRECTOUT C Slot modules scalable?

Yes. Users can populate multiple C Slots within compatible platforms to expand microphone inputs, line-level connectivity, or AES3 channels as production requirements grow.
