Focused and deliberate, the ANDIAMO is a high-end AD/DA converter built for clarity at scale. Thirty-two channels of analogue I/O meet a flexible digital core, allowing signals to move seamlessly between analogue, MADI, and networked environments.
Housed in a compact 1U form, it brings the sonic character of the Prodigy platform into a more streamlined device, without losing precision. Routing, control, and redundancy are handled quietly in the background, keeping the system stable and the workflow uninterrupted.
Adaptable by design, ANDIAMO is less about fixed configuration and more about choosing the right connection for the system it supports.
Key Features
32-channel high-end AD/DA conversion (analogue ↔ digital)
Dual MADI I/O via SFP for flexible digital connectivity
Optional network audio integration (Dante, RAVENNA/AES67, SoundGrid)
Up to 288 channels with combined analogue, MADI, and network audio
globcon remote control with per-channel routing and level management
Redundant power supplies and network paths for reliable operation
EARS™ automatic redundancy switching for uninterrupted audio

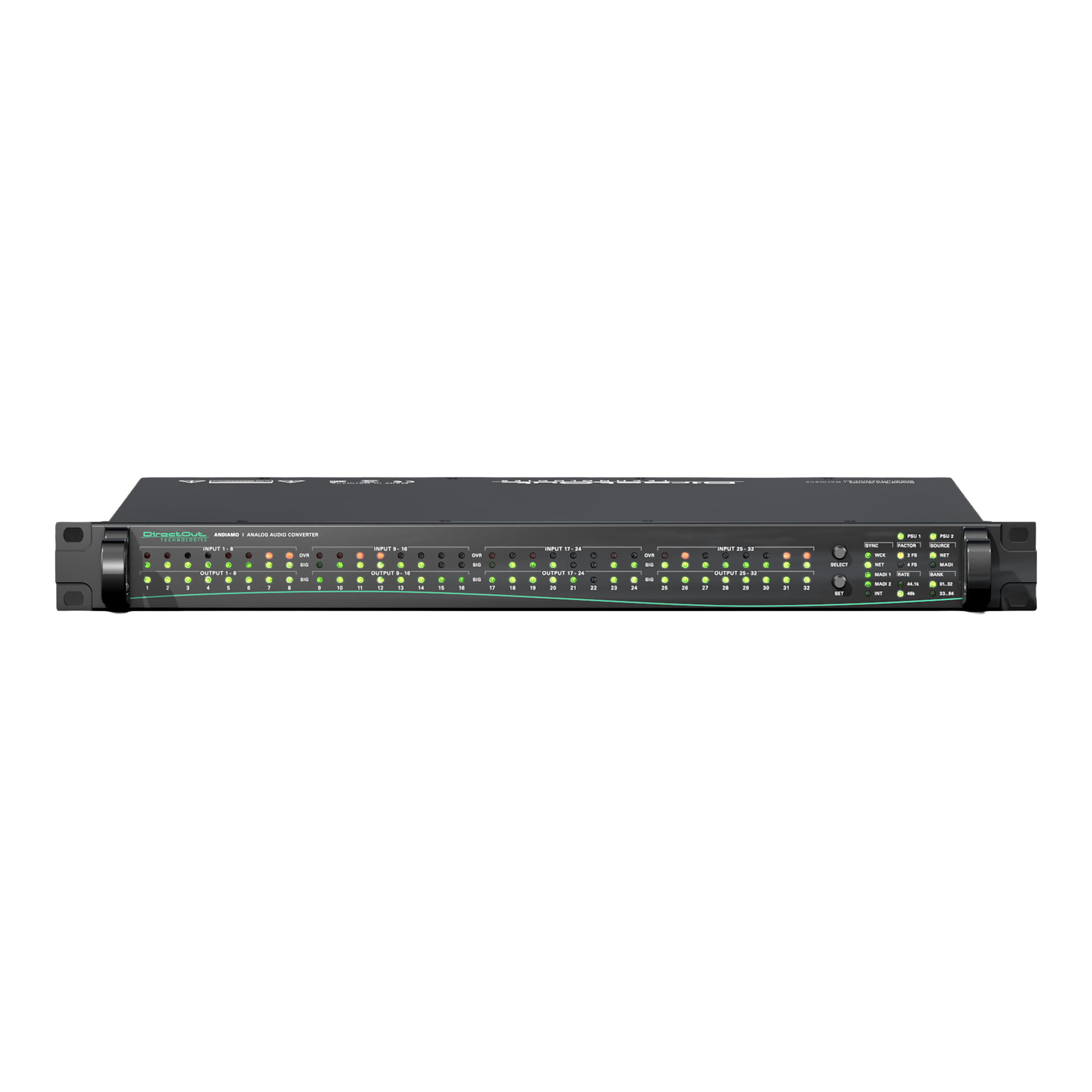

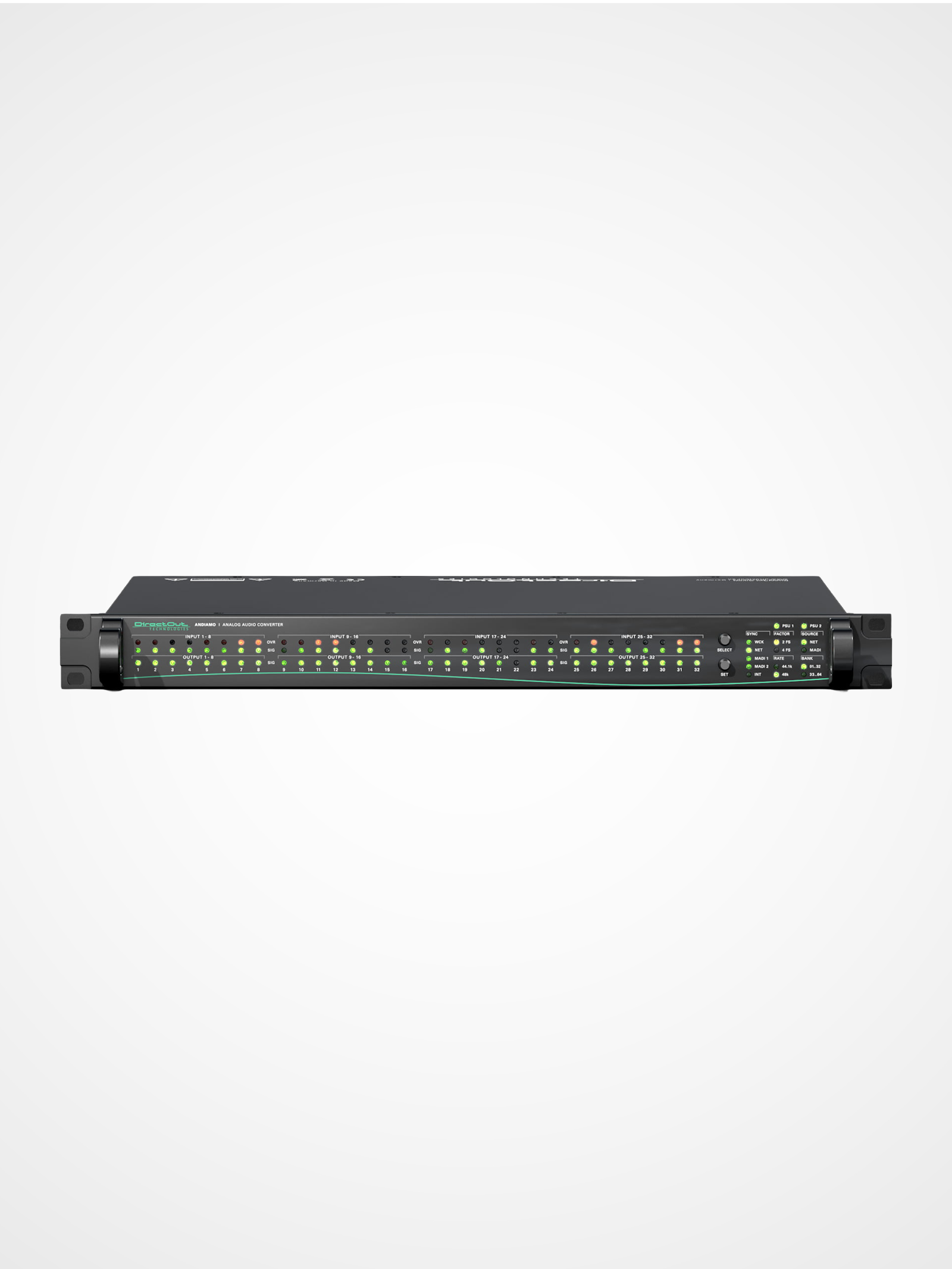

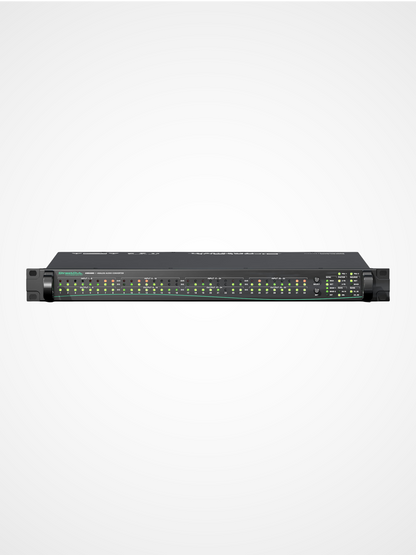

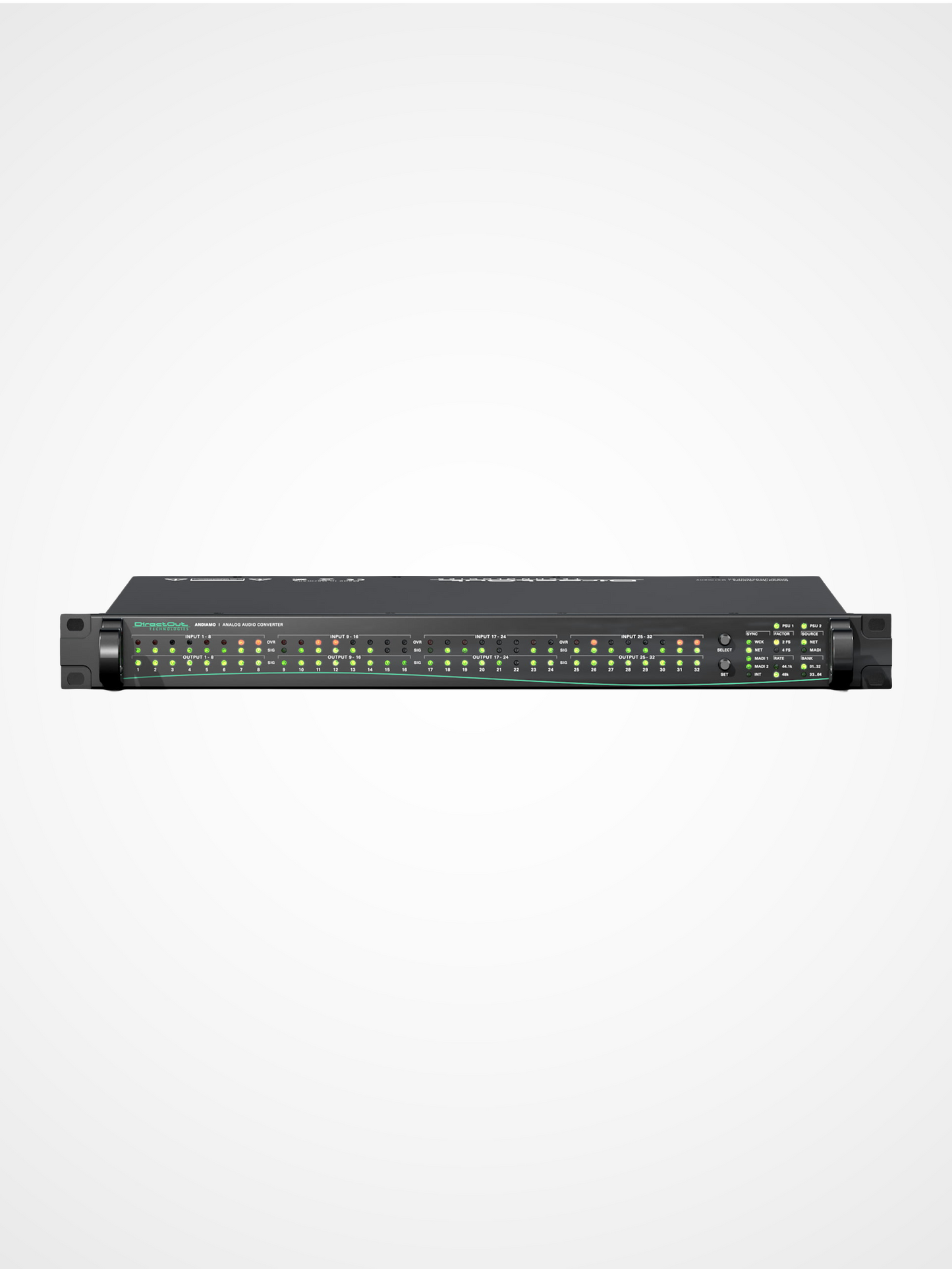

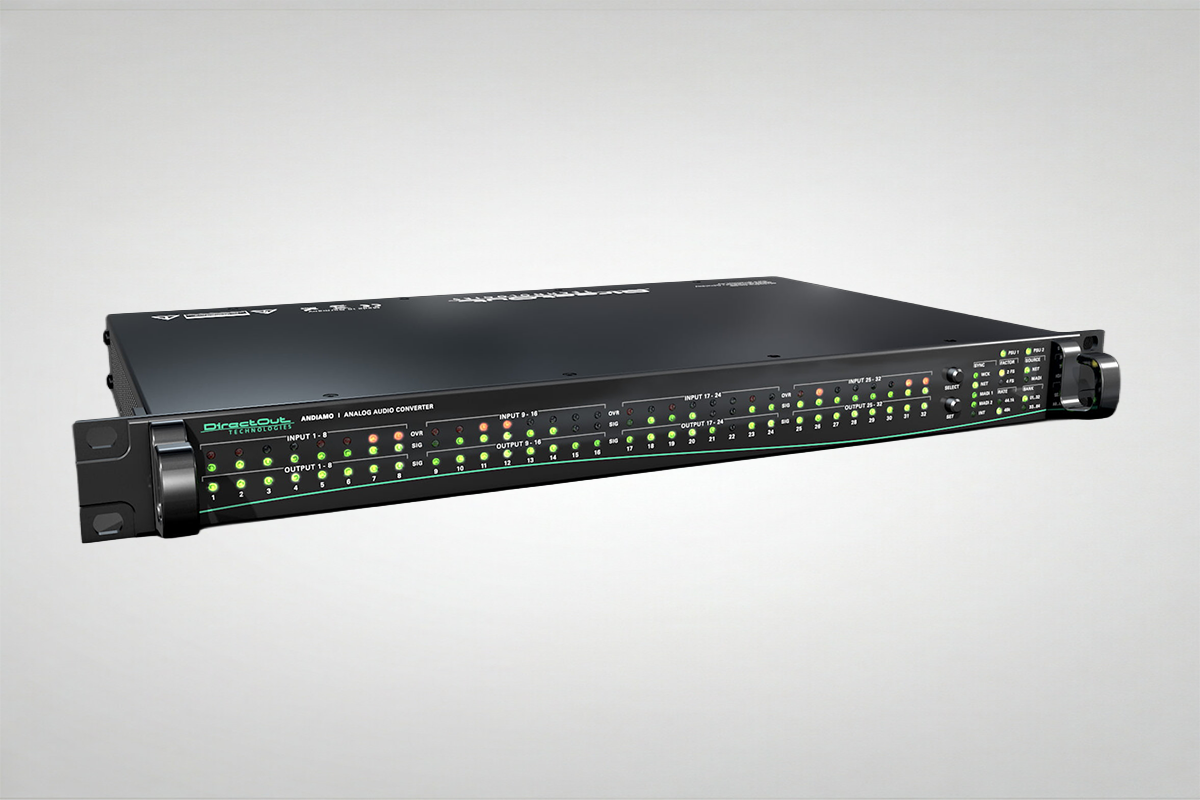

Compact 1RU chassis for touring, broadcast, and installation use
Standard Version
The standard ANDIAMO is built around MADI as its primary format.
Uses dual MADI connections for stable, point-to-point audio transport
Ideal for traditional digital infrastructures and touring systems
Network audio can be added later via optional modules
A fixed, dependable foundation well suited to established MADI workflows.
Collapsible content
Technical Specs

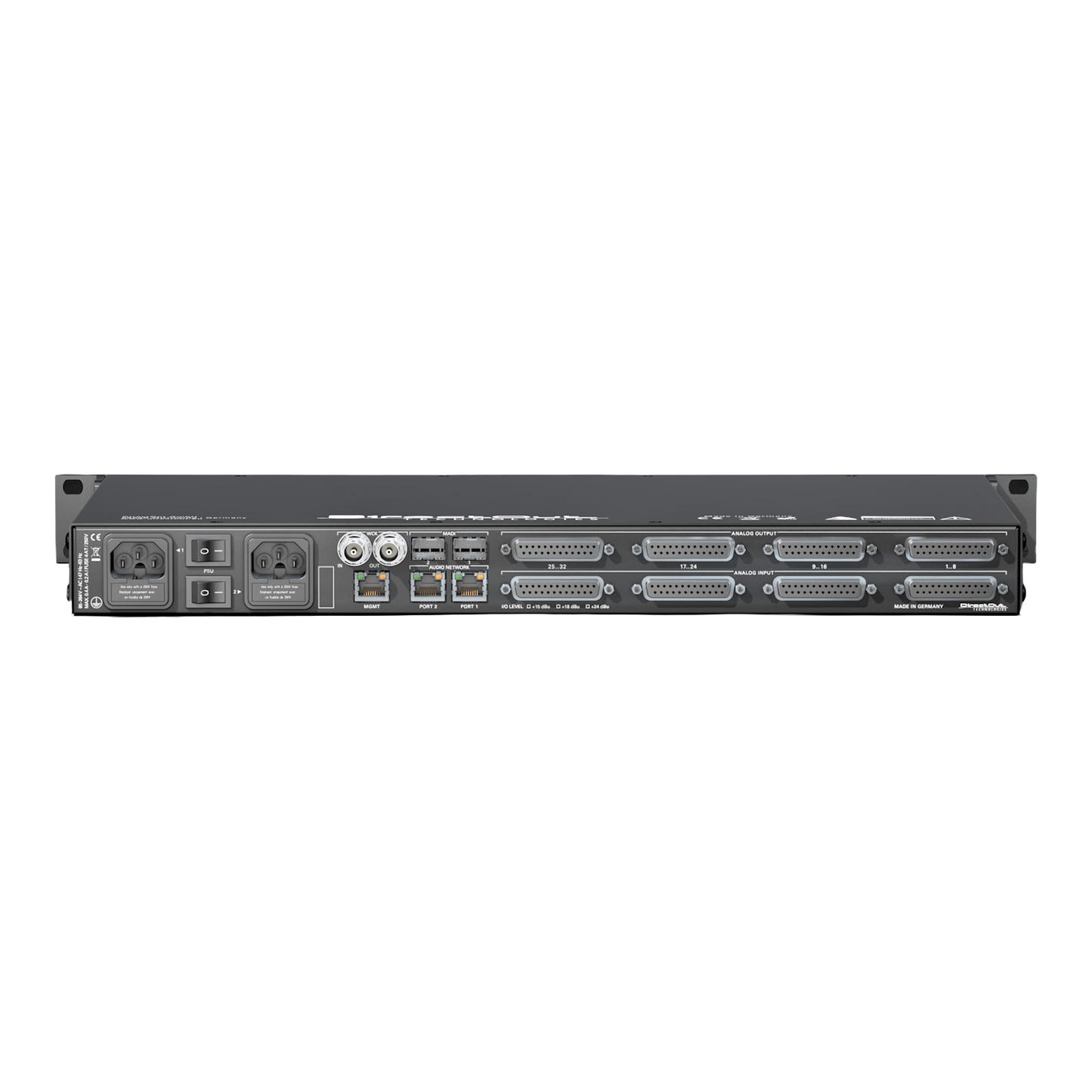

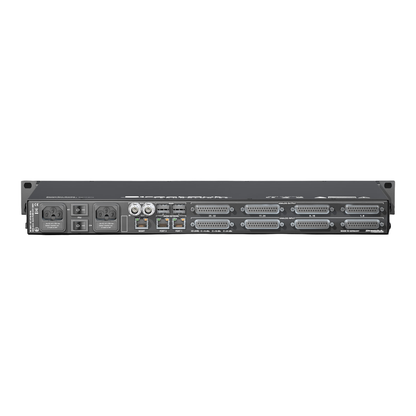

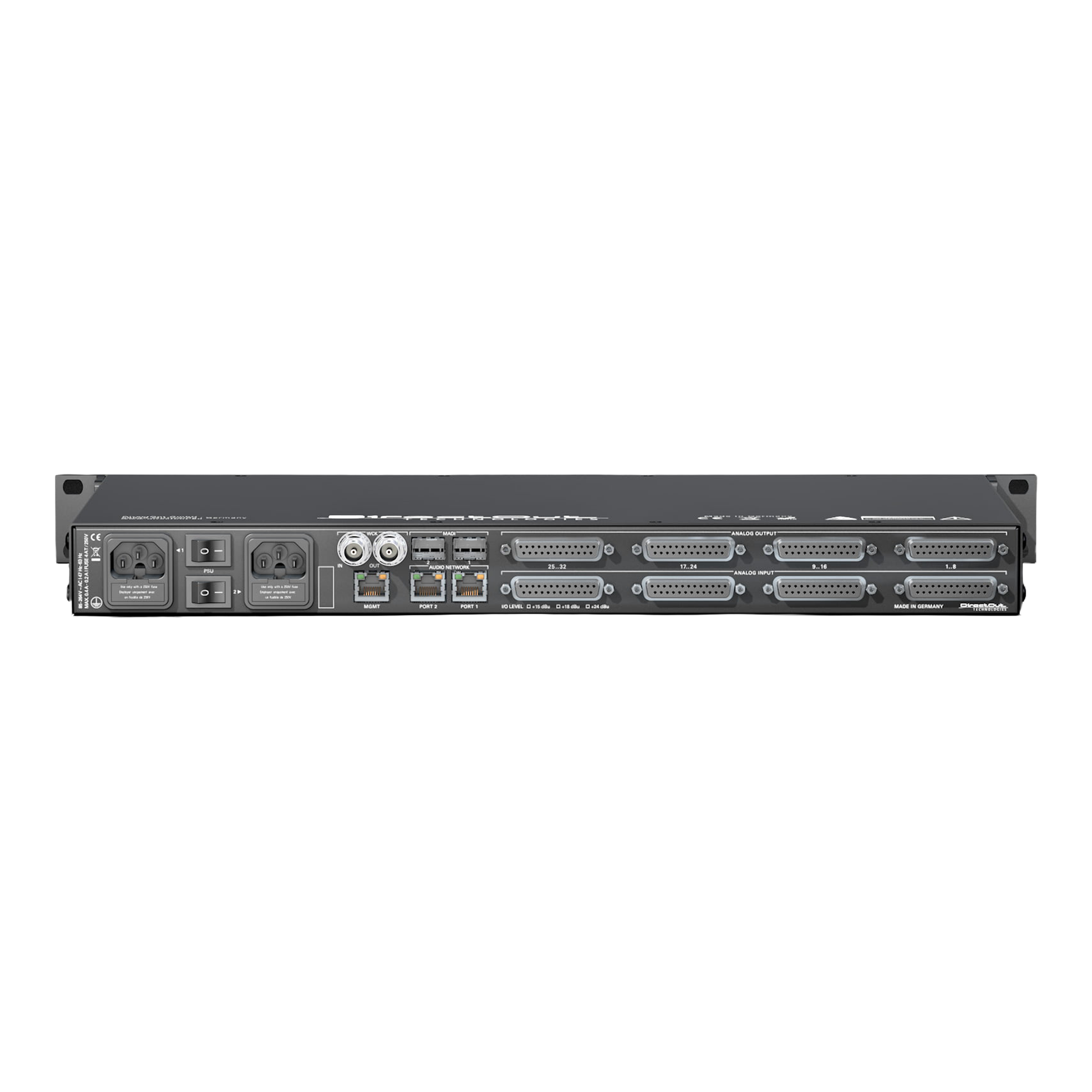

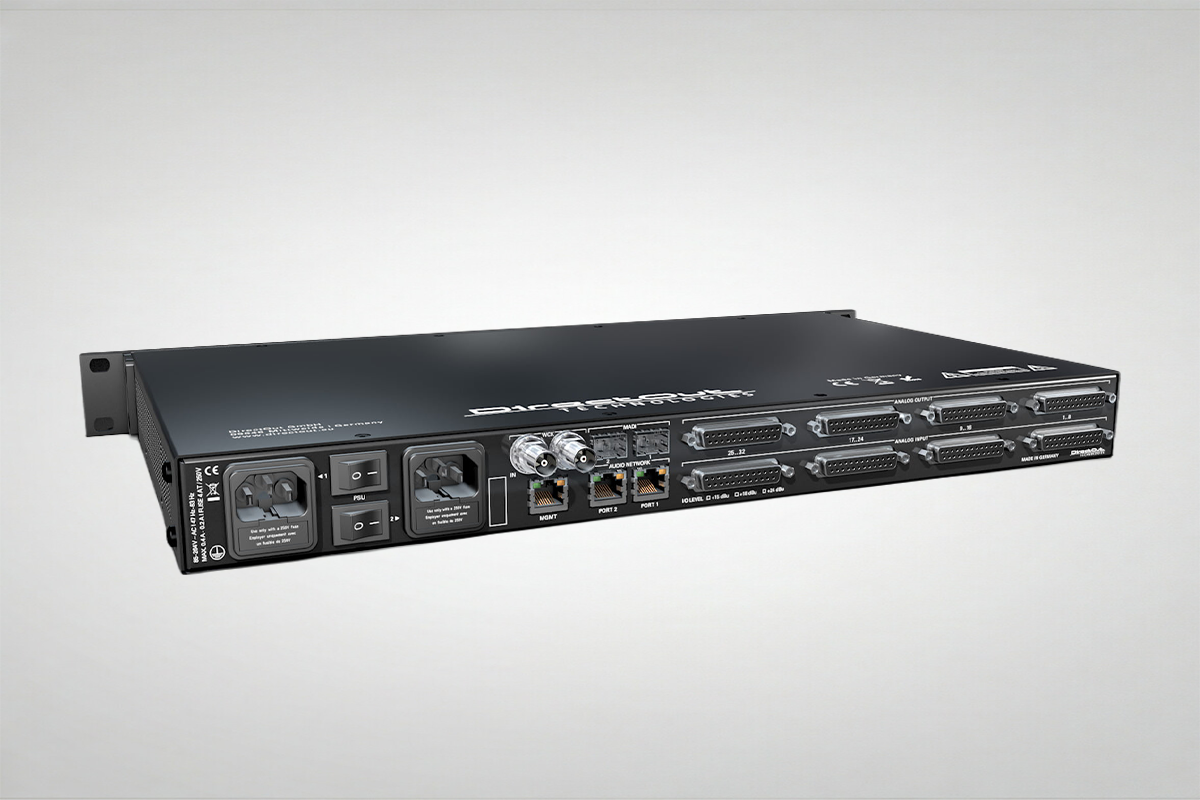

Interfaces
- MADI ports (I/O):
- 2 × SFP (empty cage, no transceiver)
- Network:
- 2 × RJ45 (1 Gbit/s) – audio network
- 1 × RJ45 (1 Gbit/s) – management
- Analog (I/O):
- 8 × DSUB-25 (balanced), AES59 compliant
- Note: SFP MADI transceivers available from DirectOut
Digital
- Sample rates:
- 44.1, 48, 88.2, 96, 176.4, 192 kHz (±12.5%)
- MADI formats:
- 48k / 96k frame56 / 64 channelS/MUX
- Optional Audio network options:
- RAVENNA (128 channels @ 1 FS)
- Dante (64 channels @ 1 FS)
- AVB/MILAN (128 channels @ 1 FS)
- SoundGrid (128 channels @ 1 FS)
Analog
- Analog level (I/O):+24 dBu+15 or +18 dBu available on request
A/D (Analog-to-Digital)
- SNR:-117.6 dB RMS (20 Hz – 20 kHz)-119.9 dB(A)
- THD @ -1 dBFS:-119 dB
- Frequency response:-0.15 dB (10 Hz)-0.15 dB (20 kHz)
D/A (Digital-to-Analog)
- SNR:-119.5 dB RMS (20 Hz – 20 kHz)-122.5 dB(A)
- THD @ -1 dBFS:-112 dB
- Frequency response:-0.5 dB (10 Hz)-0.15 dB (20 kHz)
Sync
- Word clock (I/O):2 × coaxial BNC (75 Ω switchable)
Communication
- Remote software:
- globcon (Windows & macOS)
Global
- Power supply:2 × 84–264 V AC
- 47–63 Hz
- Safety class 1, phase-redundant
- Dimensions:
- Width: 19" (483 mm)
- Height: 1 RU (44.5 mm)
- Depth: 10" (254 mm)
- Weight:Approx. 4 kg
Case Studies
FAQ
Which audio formats and protocols are supported?
ANDIAMO supports:
- MADI (via dual SFP ports)
- Optional RAVENNA / AES67
- Optional Dante
- Optional SoundGrid
This allows seamless integration into both traditional digital audio systems and modern audio-over-IP workflows.
How does the ANDIAMO handle redundancy?
ANDIAMO is designed for mission-critical environments and includes:
- Dual MADI ports for seamless redundancy
- Dual network ports for redundant audio-over-IP operation
- EARS™ automatic failover switching
- Dual redundant power supplies
These features ensure uninterrupted operation in live and broadcast applications.
How is the ANDIAMO controlled and configured?
The system is controlled via:
- globcon control software (Windows/macOS)
- Dedicated Ethernet port for remote management
- Front-panel controls for quick access to key functions
This allows both detailed system configuration and simple on-device operation.
Is the ANDIAMO suitable for touring and playback systems?
Yes. Its 1U form factor, high channel density, and robust redundancy features make it ideal for touring playback rigs and live production systems where space, reliability, and sound quality are critical.
Is the ANDIAMO suitable for audio-over-IP (AoIP) Broadcast systems?
Yes. With optional network modules, ANDIAMO supports AES67 and Dante, and is compatible with SMPTE ST 2110 workflows, making it suitable for modern broadcast and IP-based audio infrastructures.
Can I mix ANDIAMO versions in the same system?
Yes. All ANDIAMO models are designed to integrate into larger hybrid systems, and can be combined using format bridging (for example via MADI, Dante, or AES67 gateways depending on configuration).
In practice, many systems use a combination:
- MADI units for console and stage connectivity
- Dante or Ravenna units for network distribution
- SoundGrid units for dedicated live processing workflows
Because all variants share the same 32-channel AD/DA platform and globcon control ecosystem, they can operate side-by-side within larger DirectOut infrastructures without compromising workflow consistency.
