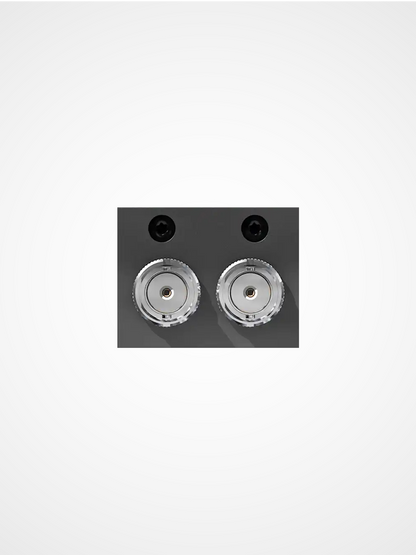

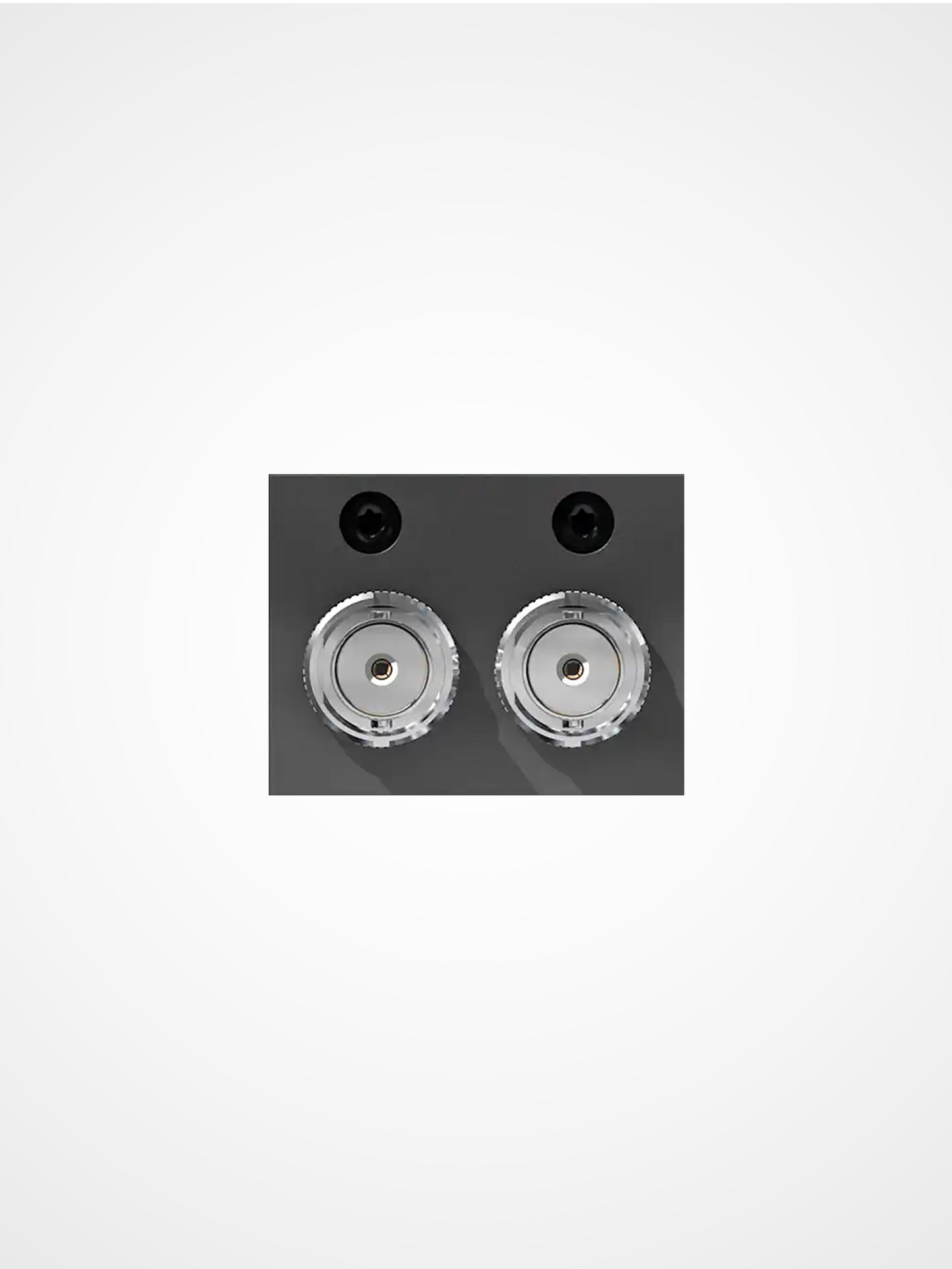

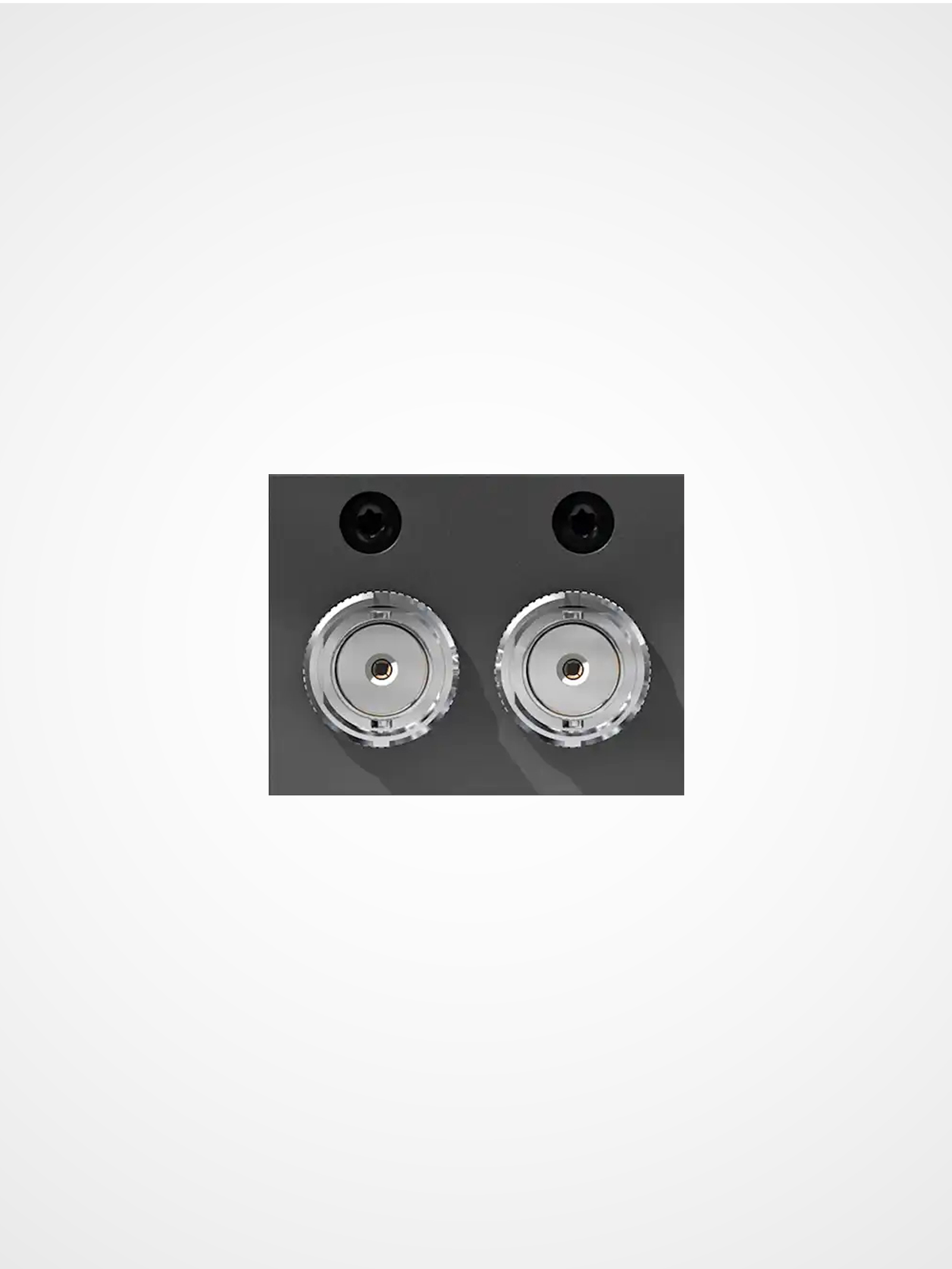

• DirectOut BNC.IO B Slot single-port MADI module with coaxial BNC connections for 64-channel professional audio networking in live sound and broadcast systems
1 2

DirectOut BNC.IO B Slot

DirectOut BNC.IO B Slot

£312.00
£260.00 exVAT.
£312.00
£260.00 exVAT.
Sale Sold out

In stock

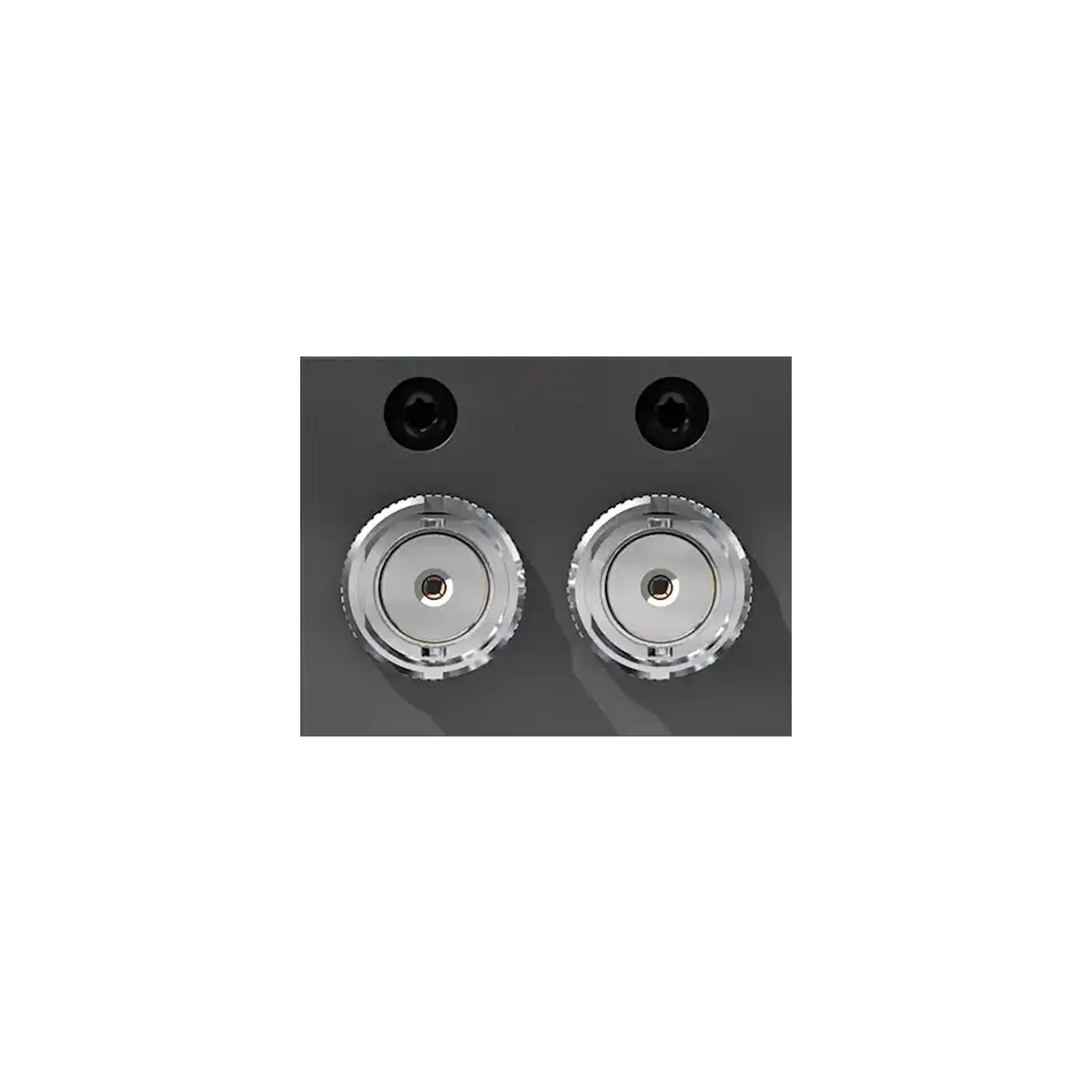

BNC.IO is a single-port MADI module for the PRODIGY Series.

The MADI port connects 64 audio channels of digital input and output signals via two coaxial connectors (75 Ω).

The amount of audio channels is reduced at higher sample rates - 32 channels @ 2 FS or 16 channels @ 4 FS.

The transmission via coaxial cable typically allows connections of up to 100 m depending on the quality of the cabling and the sender / receiver device.

The PRODIGY Series offers low latency sample rate conversion (FastSRC™) for input and output.

View full details

Technical Specs

  • 64 channels (1 FS), 32 channels (2 FS), 16 channels (4 FS)
  • Sample Rate 44.1 kHz up to 192 kHz
  • Sample rate conversion (FastSRC™ in PRODIGY Series)
  • 48k / 96kFrame
  • 56 / 57 / 64 channel mode
  • AES10 compliant
  • 2 x BNC socket, coaxial 75 Ω (input/output)

Case Studies

FAQ

Which DIRECTOUT platforms support B Slot modules?

B Slot modules are supported by several DIRECTOUT platforms including:

  • PRODIGY.MP
  • PRODIGY.MC
  • PRODIGY.MX

The number of available B Slots depends on the hardware model.

How many channels do DIRECTOUT B Slot modules support?

All DIRECTOUT B Slot modules support up to 64 channels of MADI audio per module, compliant with the AES10 MADI standard.

What is the difference between A Slot and B Slot modules?

A Slot modules support audio networking, USB, and multi-port MADI with higher channel capacities, while B Slot modules are dedicated single-port MADI interfaces with 64-channel operation. B Slot modules are optimized for compact and reliable MADI expansion.

Can B Slot modules be combined with audio network modules?

Yes. DIRECTOUT smart audio platforms allow users to combine B Slot MADI modules with A Slot network audio modules such as Dante, RAVENNA, Milan, and SoundGrid for hybrid audio workflows.
