DirectOut BREAKOUT

DirectOut BREAKOUT

£360.00
£300.00 exVAT.
£360.00
£300.00 exVAT.
Sale Sold out

In stock

The BREAKOUT Series is a range of adaptor boxes available in different variants to extend the coverage of the ANDIAMO series.

They are equipped with XLR or BNC connectors on the front panel and DSUB-25 connectors on the rear panel. Audio signals are carried passively between the front and rear panels.

The small form factor and angle brackets also allow for mounting the devices on the back of an ANDIAMO unit.

  • BREAKOUT.AN8 - analog input / output, 8 channels
  • BREAKOUT.AN16I - analog input, 16 channels
  • BREAKOUT.AN16O - analog output, 16 channels
  • BREAKOUT.AES - digital input / output, 8 AES ports (16 channels)
  • BREAKOUT.AESid - digital input / output, 16 AESid ports (32 channels)
View full details

Technical Specs

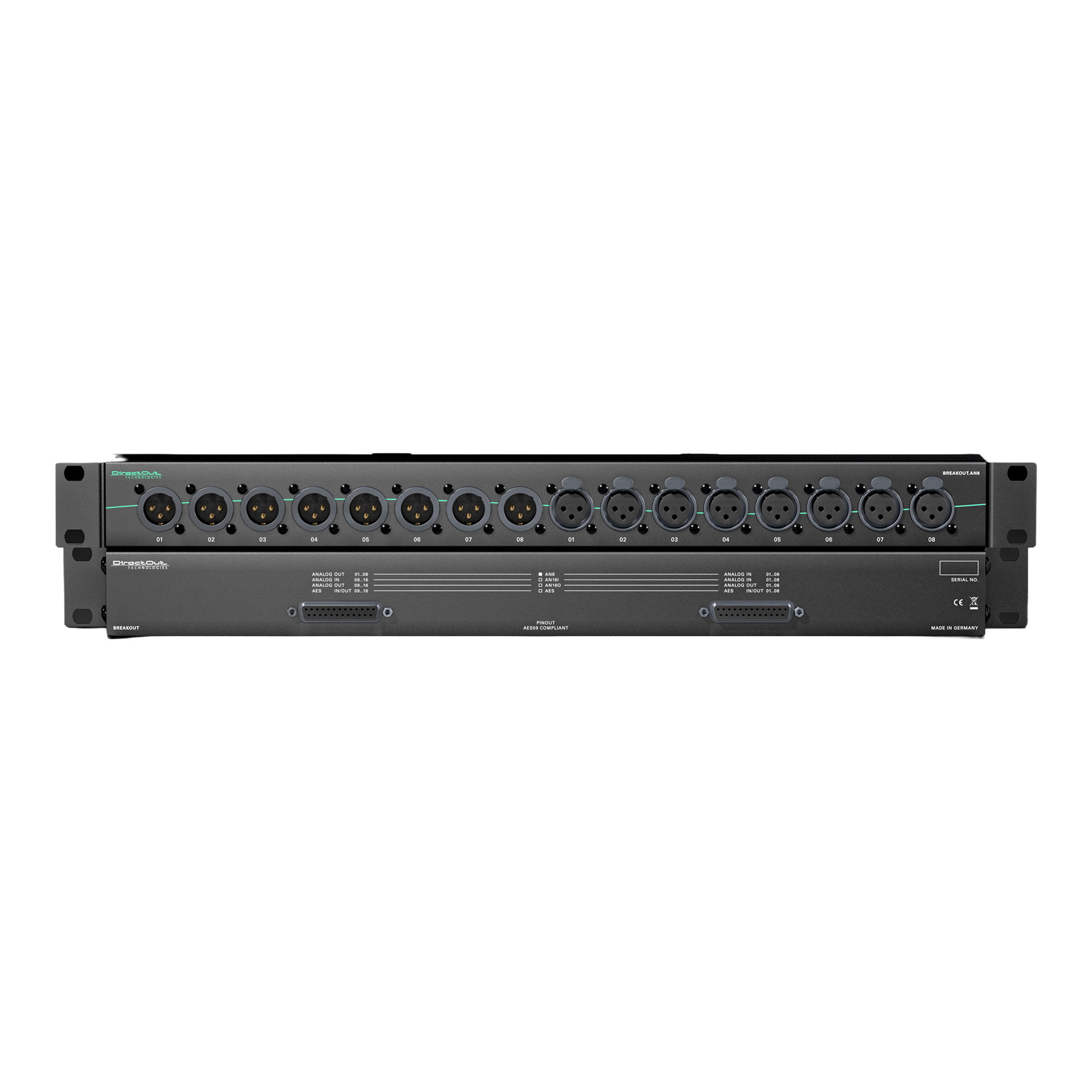

BREAKOUT.AN8

Front8 x XLR connector male8 x XLR connector femaleRear2 x DSUB-25, AES59 compliant

BREAKOUT.AN16I

Front16 x XLR connector femaleRear2 x DSUB-25, AES59 compliant

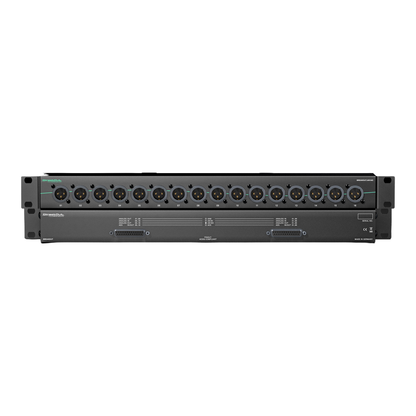

BREAKOUT.AN16O

Front16 x XLR connector maleRear2 x DSUB-25, AES59 compliant

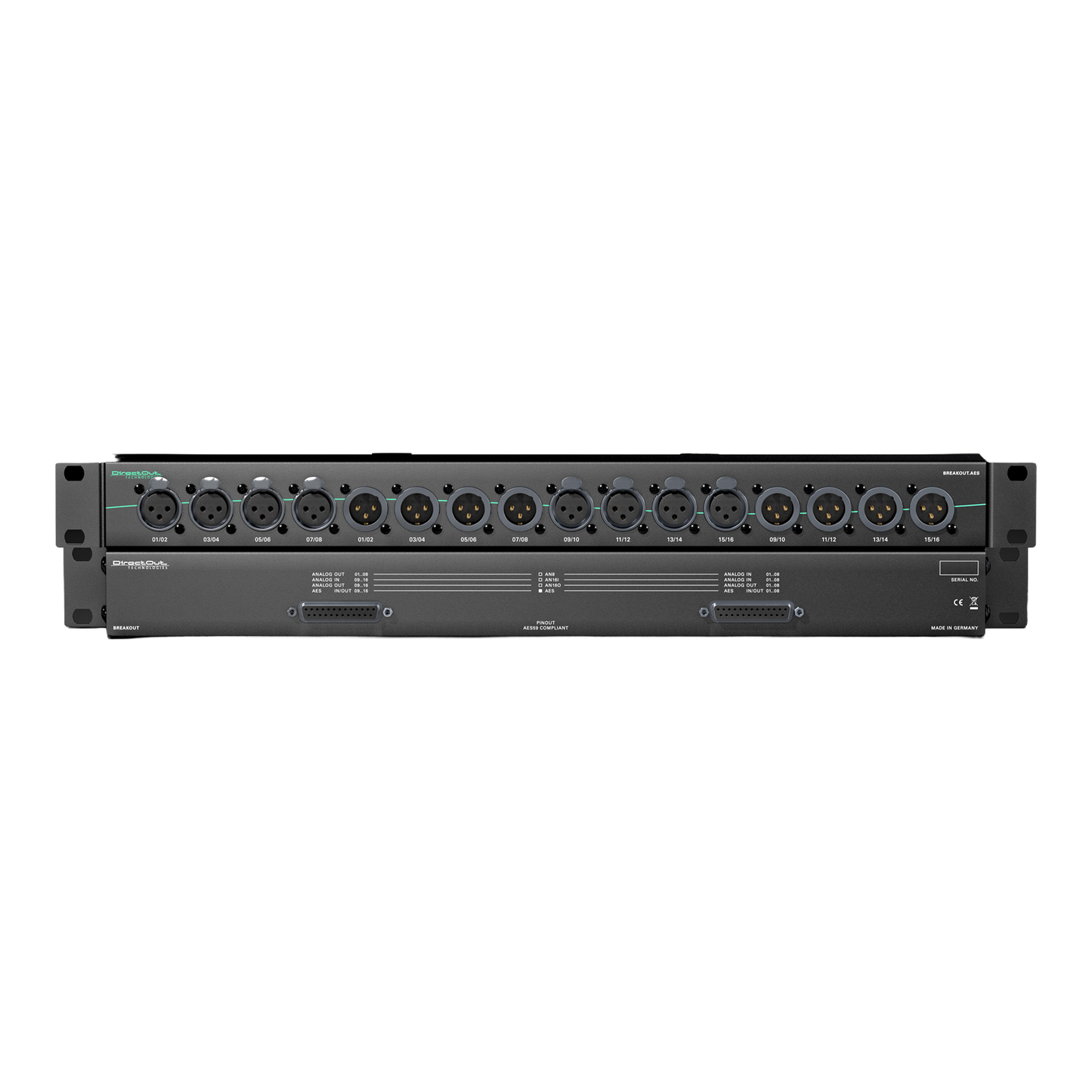

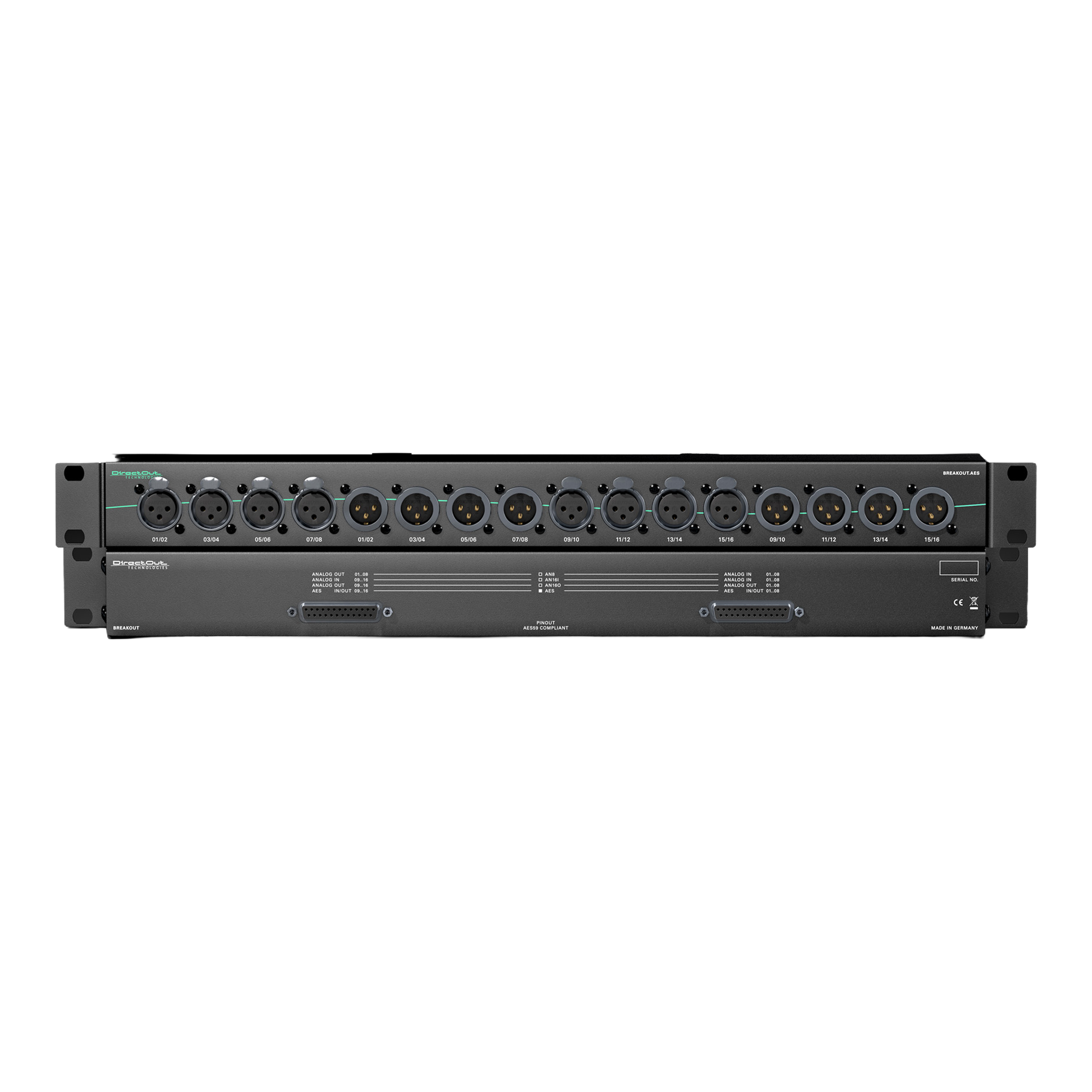

BREAKOUT.AES

Front8 x XLR connector male, 110 Ω*8 x XLR connector female, 110 Ω*Rear2 x DSUB-25, AES59 compliant

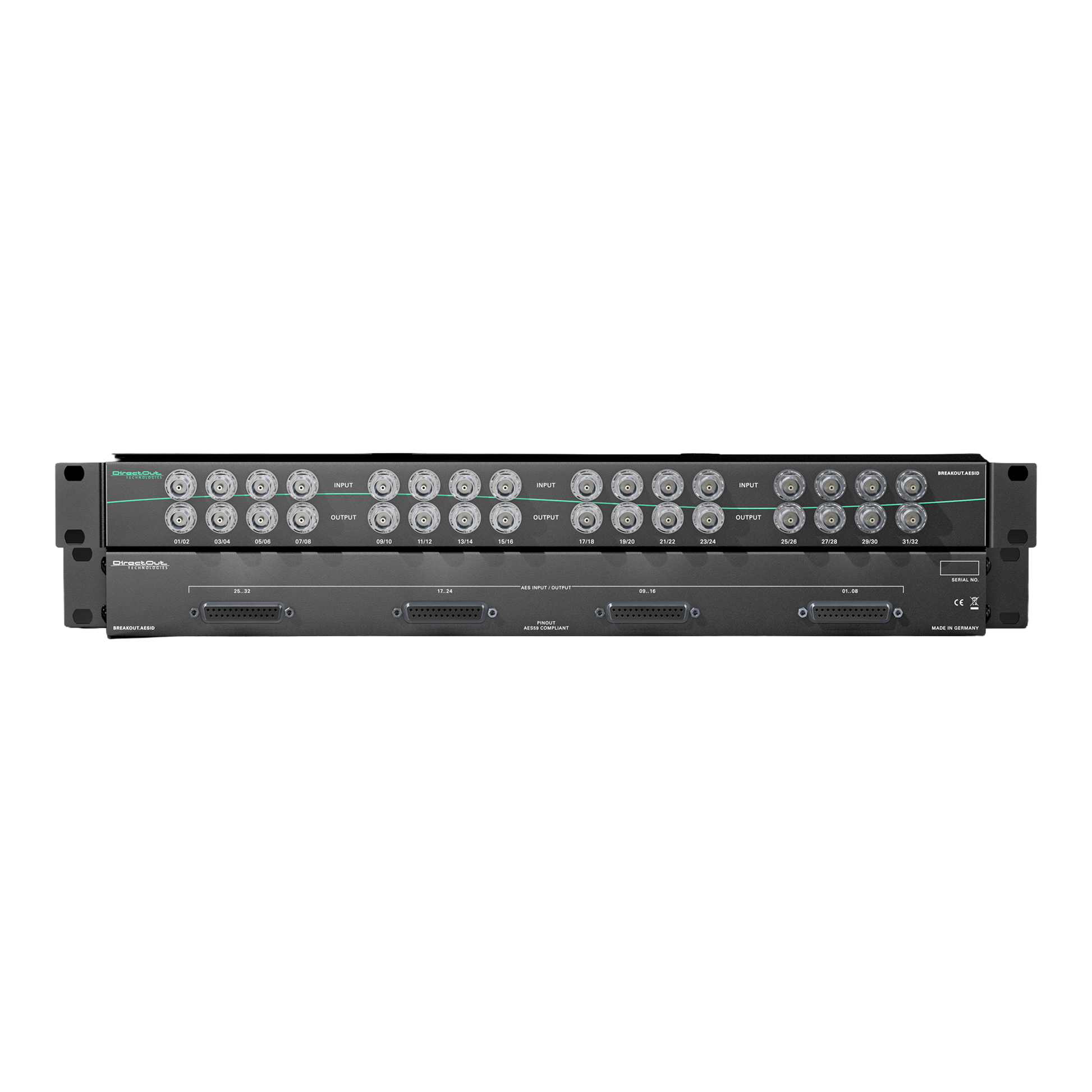

BREAKOUT.AESid

Front32 x coaxial BNC, 75 Ω*, unbalancedRear4 x DSUB-25, AES59 compliant, 110 Ω*, balanced

GLOBAL

Width19" (483 mm)Height1 RU (44.5 mm)Depth65 mm

ACCESSORY

DSUB-25 patch cable

NOTES* Impedance and level are adapted according the specific format.

AES3: 110 Ω, 2-7 Vp-p < > AES3id: 75 Ω, 1 Vp-p

Case Studies

FAQ

What equipment is compatible with DirectOut BREAKOUT boxes?

DirectOut BREAKOUT units are primarily designed for use with DirectOut ANDIAMO series interfaces, including:

  • ANDIAMO 2
  • ANDIAMO 2.AD
  • ANDIAMO 2.DA
  • ANDIAMO MC
  • ANDIAMO AES
  • ANDIAMO XT

Are DirectOut BREAKOUT boxes suitable for studio installations?

Yes. The BREAKOUT Series is widely used in professional recording studios, broadcast facilities and post-production environments because it simplifies cable management and provides easy front-panel audio access.

Are DirectOut BREAKOUT boxes suitable for broadcast applications?

Yes. BREAKOUT units are commonly used in broadcast and OB truck installations where reliable and organised audio routing is essential.
