DirectOut MADI2.BNC.SRC A Slot
DirectOut MADI2.BNC.SRC A Slot
In stock
Couldn't load pickup availability

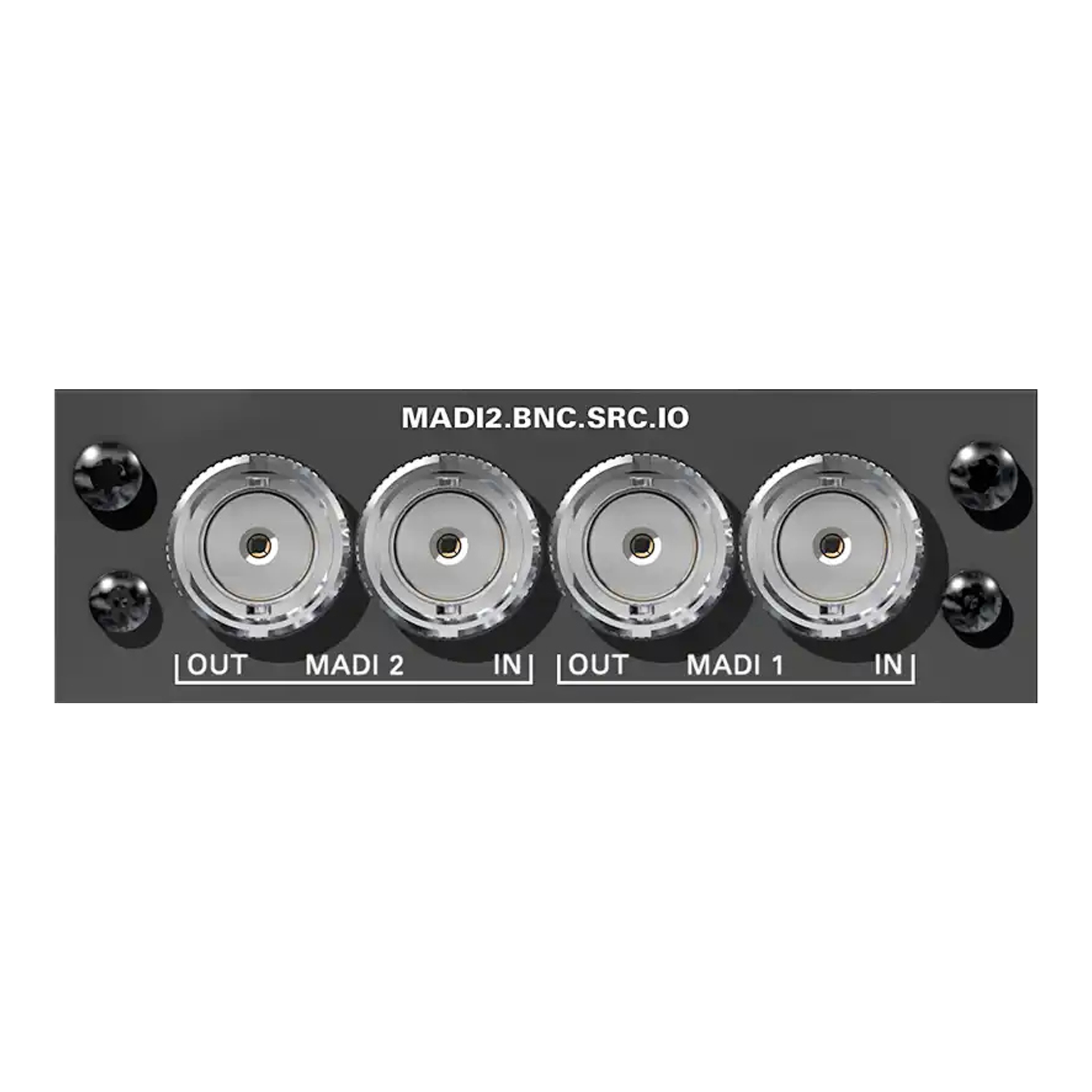

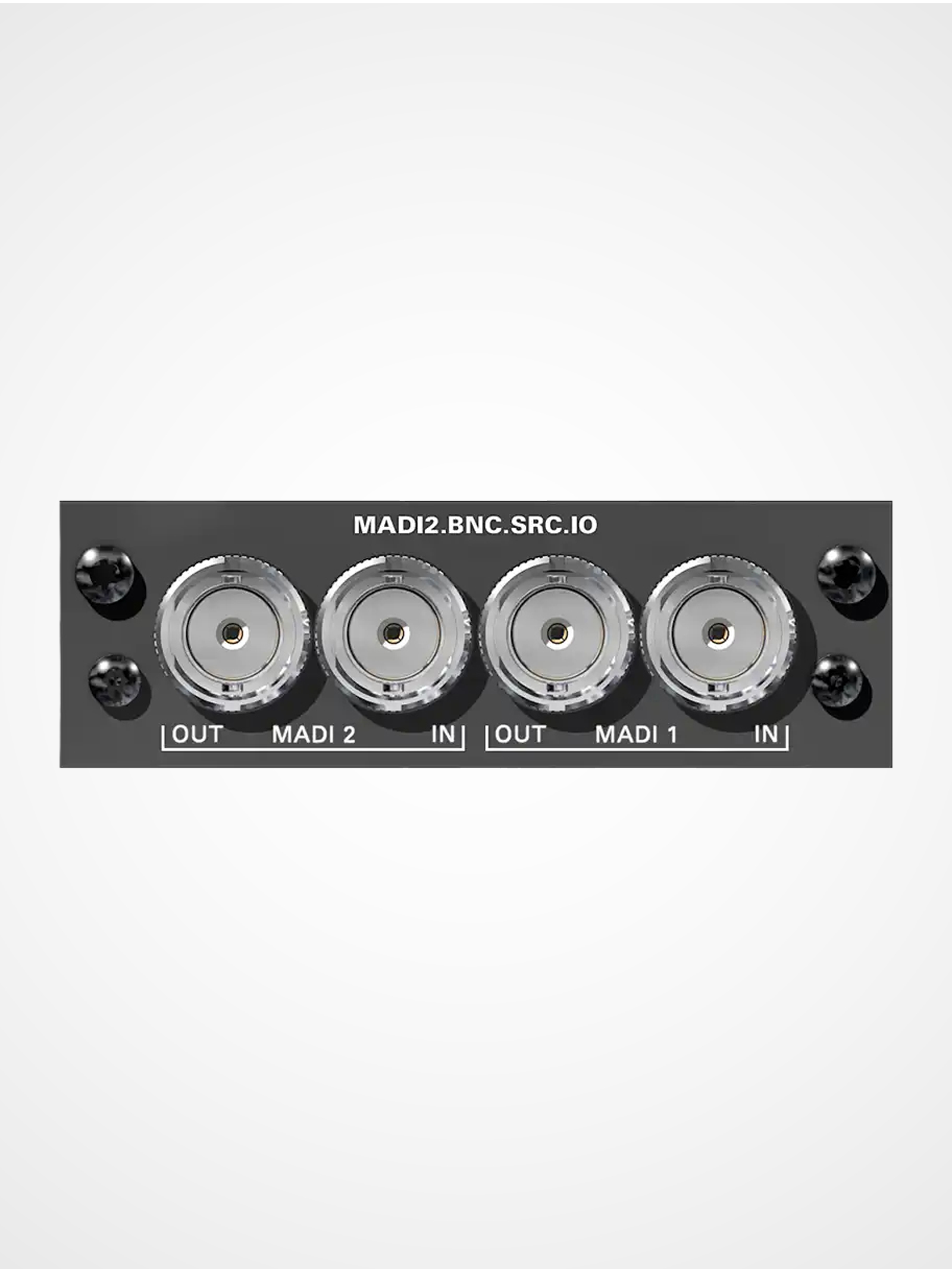

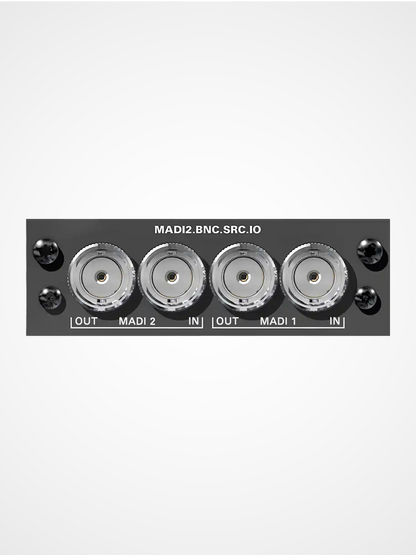

MADI2.BNC.SRC.IO is a multi-port MADI module for the PRODIGY Series and MAVEN.A based on the form factor of the Audio Network modules fitting into an A Slot.
The two MADI ports connect 128 audio channels of digital input and output signals via four coaxial connectors (75 Ω).
The amount of audio channels is reduced at higher sample rates - 64 channels @ 2 FS or 32 channels @ 4 FS.
The transmission via coaxial cable typically allows connections of up to 100 m depending on the quality of the cabling and the sender / receiver device.
MADI2.BNC.SRC.IO offers (HD SRC) on MADI. This function is not available for the single-port MADI modules of the PRODIGY, where only the low latency sample rate conversion (FastSRC™) for input and output is offered.
Collapsible content
Technical Specs
- 128 channels (1 FS), 64 channels (2 FS), 32 channels (4 FS)
- Sample Rate 44.1 kHz up to 192 kHz
- Sample rate conversion, bi-directional
- 48k / 96kFrame
- 56 / 57 / 64 channel mode
- AES10 compliant
- 4 x BNC socket, coaxial 75 Ω (input/output)
Case Studies
FAQ
What is the difference between single network and dual network A Slot modules?
Single network A Slot modules provide one audio network interface, while dual network modules combine two networking technologies in one card, such as Dante-to-Milan or Dante-to-RAVENNA. Dual network modules are ideal for bridging different audio ecosystems and supporting hybrid workflows.
Which DIRECTOUT devices support A Slot modules?
A Slot modules are supported across several DIRECTOUT smart audio platforms, including PRODIGY.MP, PRODIGY.MX, PRODIGY.MC, and MAVEN.A. The number of available A Slots varies by hardware model.
What is the purpose of SRC in DIRECTOUT module names?
SRC stands for Sample Rate Conversion. Modules with SRC functionality include integrated high-definition sample rate conversion, enabling stable interoperability between devices running on different clock domains or sample rates.
What is the maximum channel count for A Slot modules?
Depending on the module type, A Slot modules can support up to 256 audio channels. Certain high-capacity modules, such as MADI4.IO and RAVENNA modules with optional licensing, offer expanded channel capabilities.
Which audio networking protocols are supported by DIRECTOUT A Slot modules?
DIRECTOUT A Slot modules support major professional audio networking standards including Dante, RAVENNA, AES67, ST 2110, Milan/AVB, and SoundGrid. This flexibility enables seamless integration into modern IP-based audio infrastructures.
