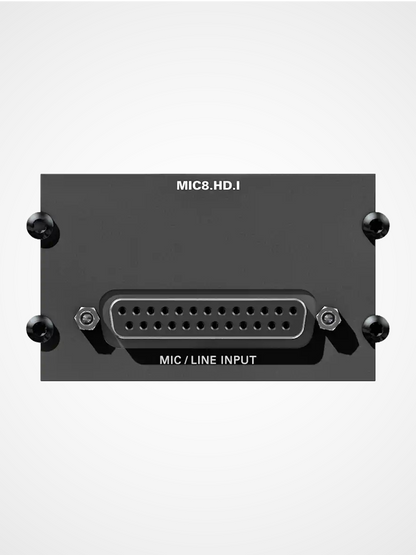

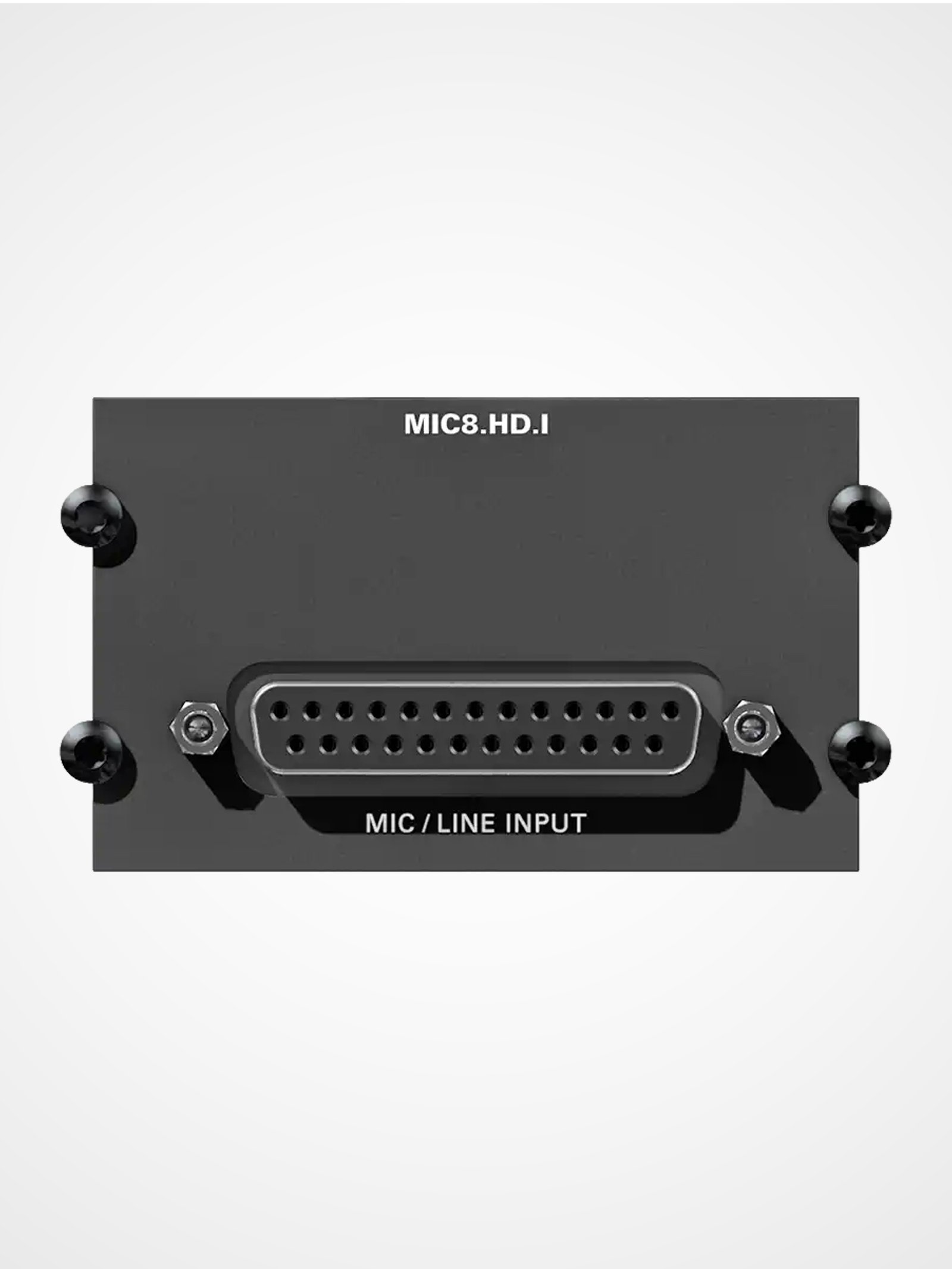

• DirectOut MIC8 HD I C Slot 8-channel high definition mic preamp module for PRODIGY and MAVEN systems in live sound and broadcast audio applications
1 2

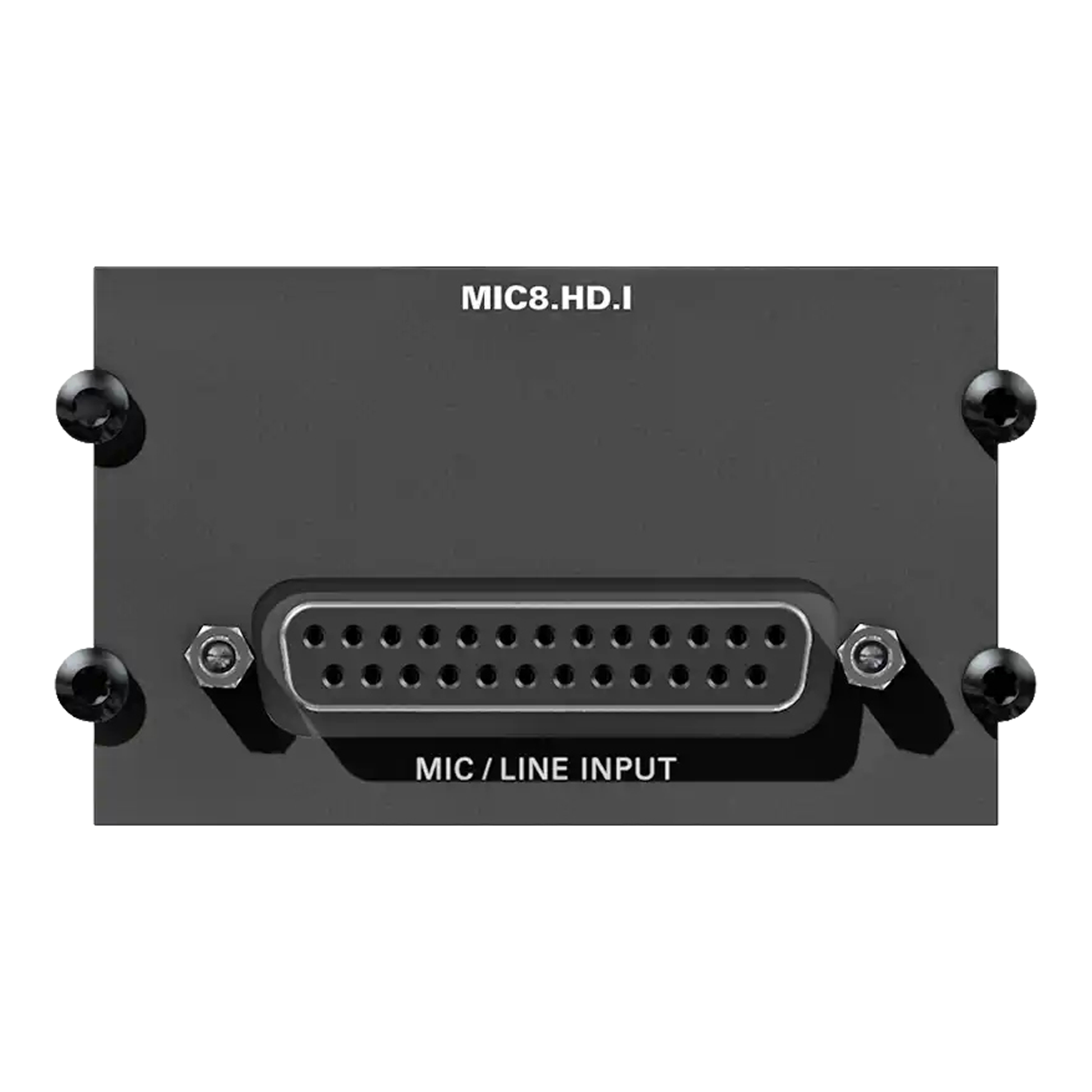

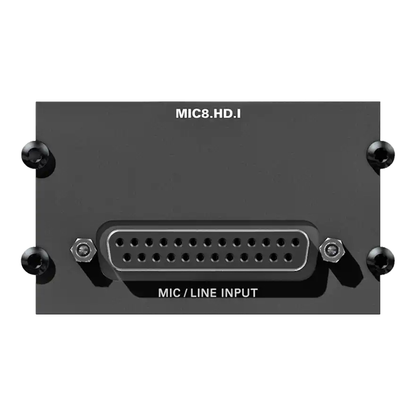

DirectOut MIC8.HD.I C Slot

DirectOut MIC8.HD.I C Slot

£1,320.00
£1,100.00 exVAT.
£1,320.00
£1,100.00 exVAT.
Sale Sold out

In stock

MIC8.HD.I is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A.

Eight analog audio input channels are interfaced via a DSUB-25 connector.
The inputs are balanced and cover signal ranges from mic to line level.

The MIC8.HD.I suits best for superior quality recordings and broadcasting.
The MIC8.LINE.I applies perfect for live sound or installation scenarios where usual high-quality is required.

View full details

Technical Specs

  • 8 channels mic input (High Definition)
  • Input sensitivity: -56 dBu to +30 dBu
  • PAD -30 dB
  • THD @ -1 dBFS: -113 dB
  • SNR @ 0 dB Gain: -114 dBFS RMS (20 Hz - 20 kHz)
  • EIN @ 60 dB Gain: -128 dBu (20Hz Hz - 20 kHz)
  • Frequency response: -0.15 dB (10 Hz) / -0.15 dB (20 kHz)
  • phantom power (+48 V, switchable)



  • 1 x DSUB-25 connector (input)*, according to AES59

* suitable cabling to connect with BREAKOUT is available

Case Studies

FAQ

Which DIRECTOUT platforms support C Slot modules?

C Slot modules are supported by several DIRECTOUT smart audio platforms, including:

  • PRODIGY.MP
  • PRODIGY.MC
  • MAVEN.A

Are DIRECTOUT C Slot modules suitable for broadcast and live production?

Yes. DIRECTOUT C Slot modules are widely used in broadcast, live touring, recording studios, theatres, and installed AV systems where reliable, high-quality analog and digital audio conversion is essential.

Can C Slot modules be combined with network audio modules?

Yes. DIRECTOUT smart audio platforms allow C Slot modules to operate alongside A Slot network audio modules such as Dante, RAVENNA, Milan/AVB, and SoundGrid for hybrid audio infrastructures.

Are DIRECTOUT C Slot modules scalable?

Yes. Users can populate multiple C Slots within compatible platforms to expand microphone inputs, line-level connectivity, or AES3 channels as production requirements grow.

If you wish to chat more about how to build a system around the DirectOut MIC8.HD.I C Slot or integrate this into your current system, give us a call or email at:

sales@niftyaudio.com
+44 (0) 208 050 8750
