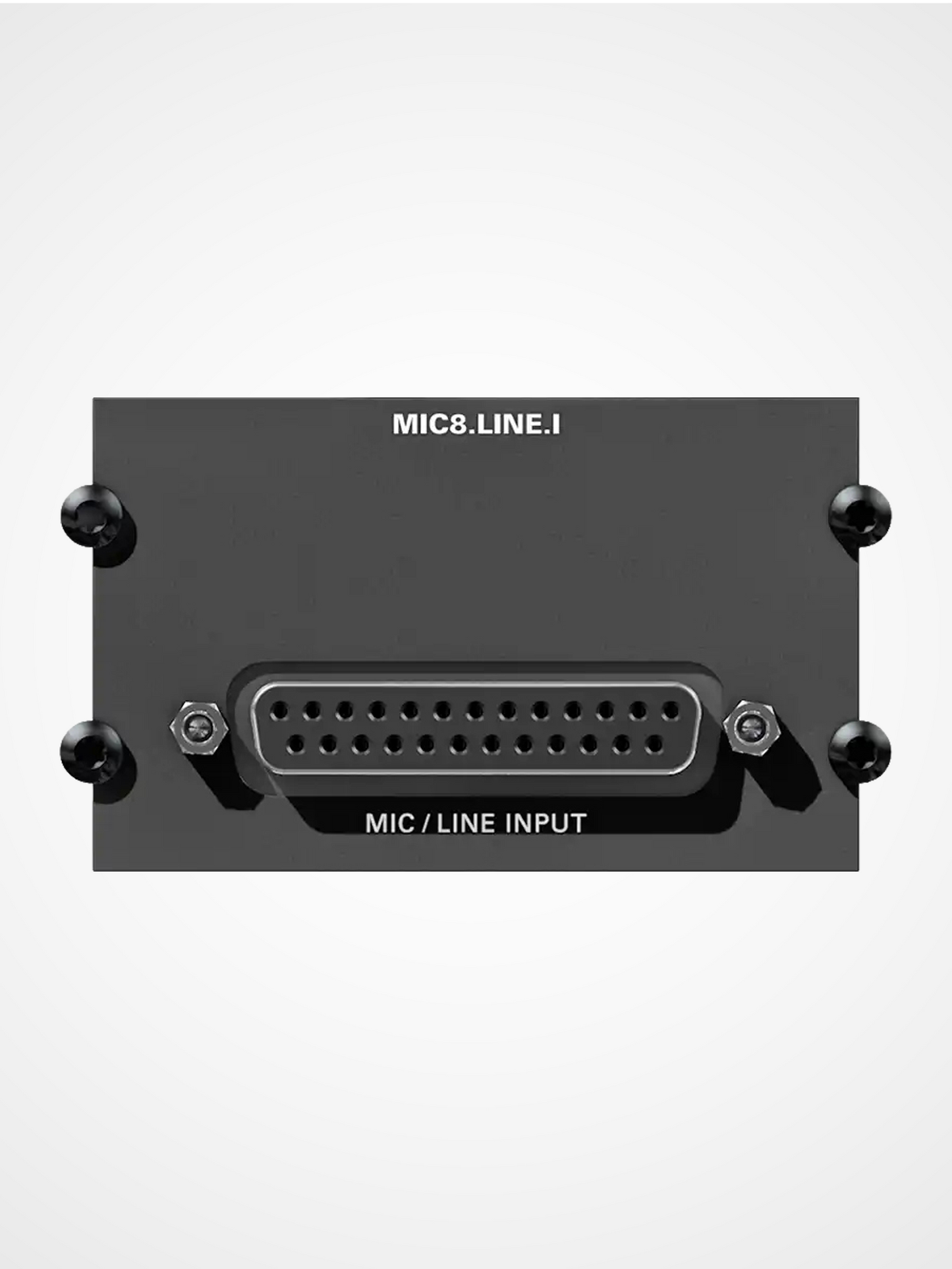

• DirectOut 8 channel microphone preamp input module for high quality live sound and broadcast audio capture
1 2

DirectOut MIC8.LINE.I C Slot

DirectOut MIC8.LINE.I C Slot

£804.00
£670.00 exVAT.
£804.00
£670.00 exVAT.
Sale Sold out

In stock

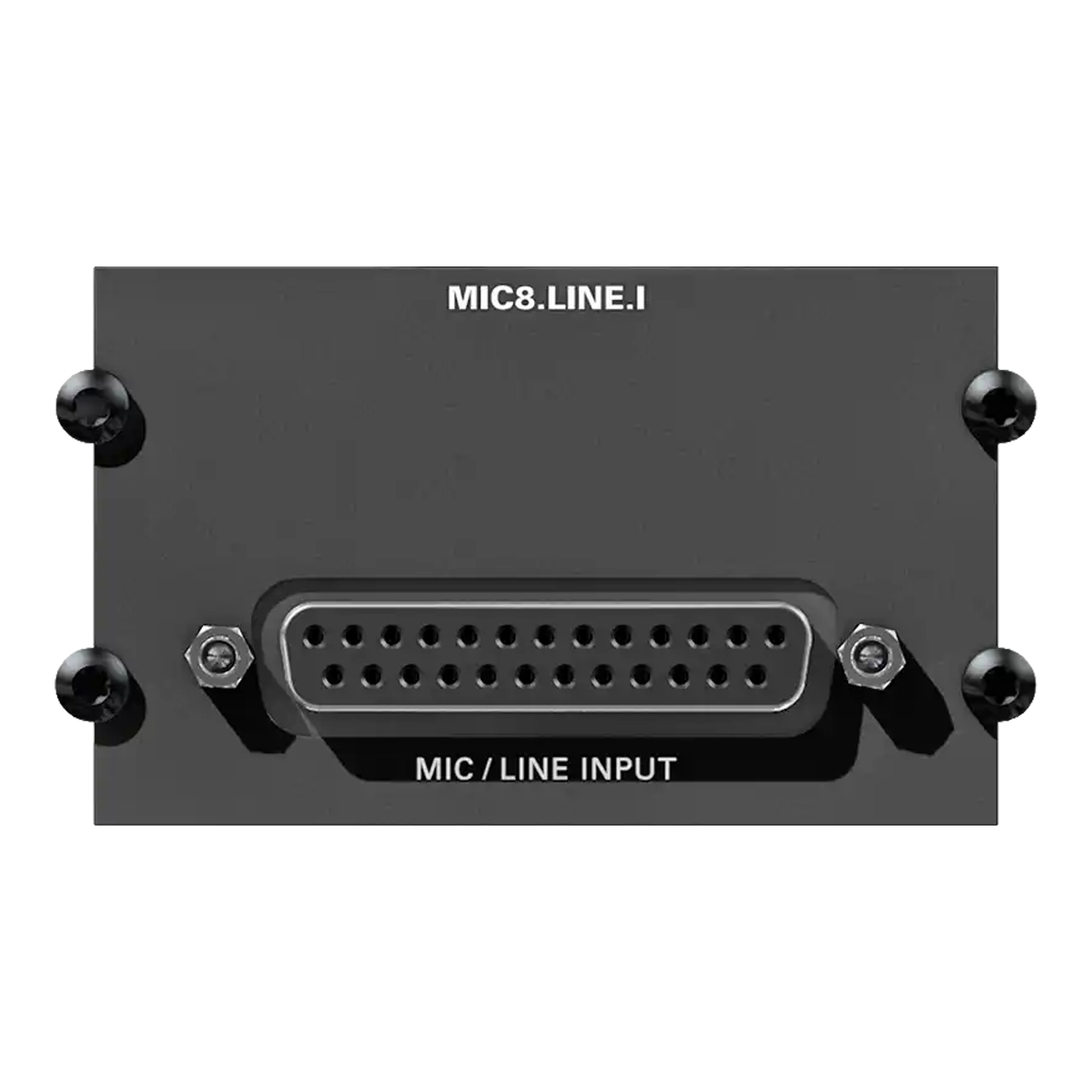

MIC8.LINE.I is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A

Eight analog audio input channels are interfaced via a DSUB-25 connector.
The inputs are balanced and cover signal ranges from mic to line level.

The MIC8.LINE.I applies perfect for live sound or installation scenarios where usual high-quality is required.
The MIC8.HD.I suits best for superior quality recordings and broadcasting.

View full details

Technical Specs

  • 8 channels mic input
  • Input sensitivity: -55 dBu to +24 dBu
  • PAD -9 dB
  • THD @ -1 dBFS: -113 dB
  • SNR @ 0dB Gain: -118 dBFS RMS (20 Hz - 20 kHz)
  • EIN @ 60 dB Gain: -118 dBu (20Hz Hz - 20 kHz)
  • Frequency response: -0.5 dB (10 Hz to FS/2)
  • phantom power (+48 V, switchable)



  • 1 x DSUB-25 connector (input)*, according to AES59

* suitable cabling to connect with BREAKOUT is available

Case Studies

FAQ

Which DIRECTOUT platforms support C Slot modules?

C Slot modules are supported by several DIRECTOUT smart audio platforms, including:

  • PRODIGY.MP
  • PRODIGY.MC
  • MAVEN.A

Are DIRECTOUT C Slot modules suitable for broadcast and live production?

Yes. DIRECTOUT C Slot modules are widely used in broadcast, live touring, recording studios, theatres, and installed AV systems where reliable, high-quality analog and digital audio conversion is essential.

Can C Slot modules be combined with network audio modules?

Yes. DIRECTOUT smart audio platforms allow C Slot modules to operate alongside A Slot network audio modules such as Dante, RAVENNA, Milan/AVB, and SoundGrid for hybrid audio infrastructures.

Are DIRECTOUT C Slot modules scalable?

Yes. Users can populate multiple C Slots within compatible platforms to expand microphone inputs, line-level connectivity, or AES3 channels as production requirements grow.

If you wish to chat more about how to build a system around the DirectOut MIC8.LINE.I C Slot or integrate this into your current system, give us a call or email at:

sales@niftyaudio.com
+44 (0) 208 050 8750
