DirectOut MIC8.LINE.IO C Slot
DirectOut MIC8.LINE.IO C Slot
In stock
Couldn't load pickup availability

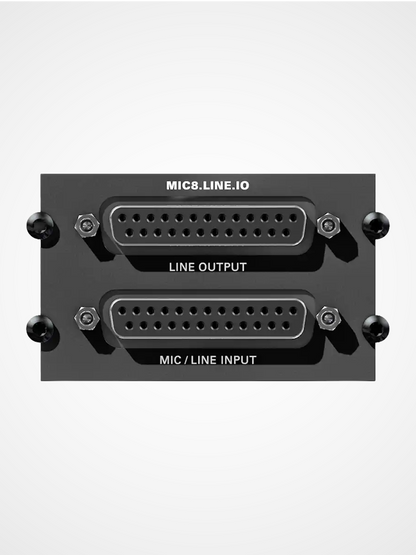

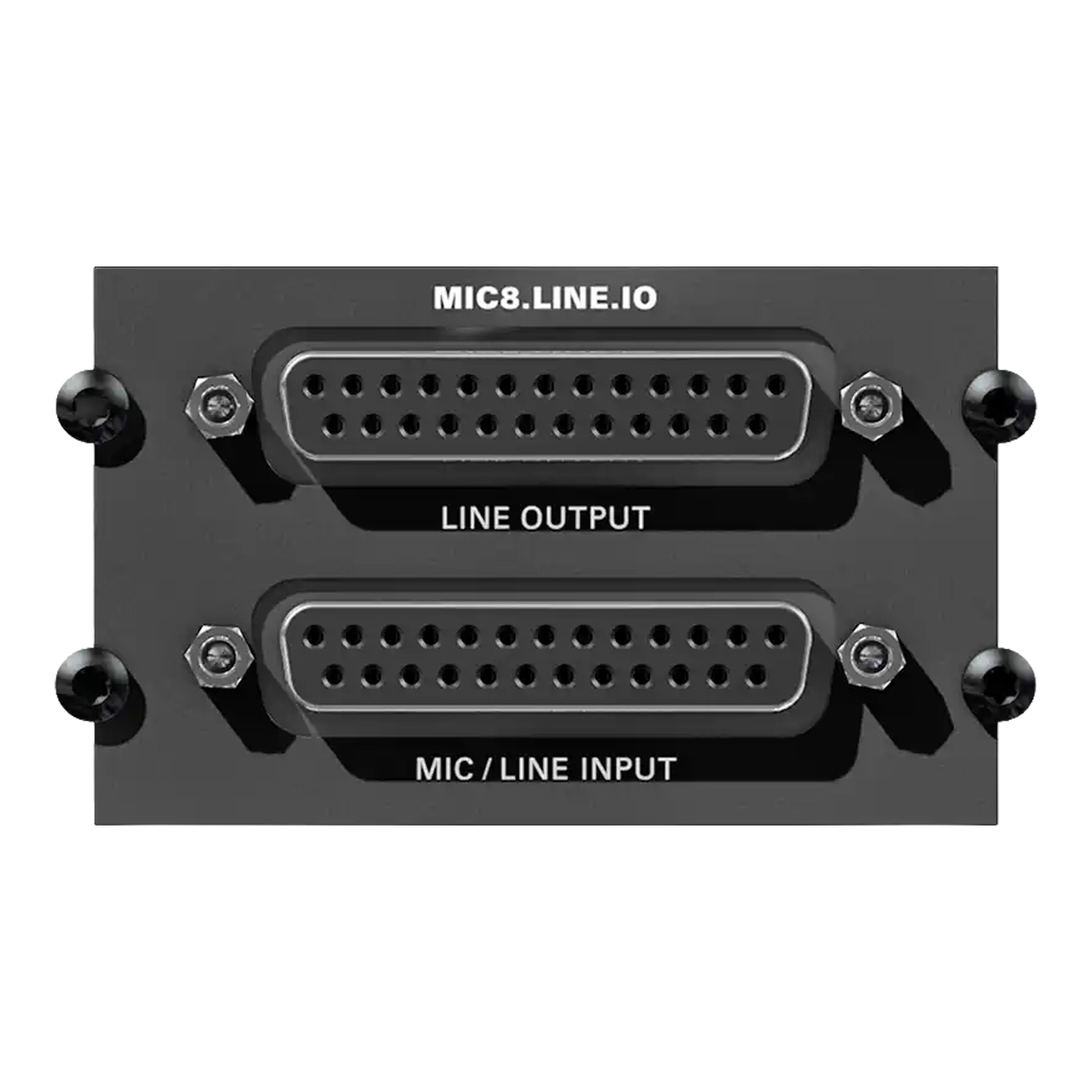

MIC8.LINE.IO is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A.
Eight analog audio input and output channels are interfaced via two DSUB-25 connectors.
The inputs are balanced and cover signal ranges from mic to line level.
The outputs are balanced and the reference level can be adjusted to either +15 / +18 or +24 dBU via jumper - individually per channel.
The MIC8.LINE.IO applies perfect for live sound or installation scenarios where usual high-quality is required.
The MIC8.HD.IO suits best for superior quality recordings and broadcasting.
Collapsible content
Technical Specs
- 8 channels mic input/line output
A/D
- Input sensitivity: -55 dBu to +24 dBu
- PAD -9 dB
- THD @ -1 dBFS: -113 dB
- SNR @ 0dB Gain: -118 dBFS RMS (20 Hz - 20 kHz)
- EIN @ 60 dB Gain: -118 dBu (20Hz Hz - 20 kHz)
- Frequency response: -0.5 dB (10 Hz to FS/2)
- phantom power (+48 V, switchable)
D/A
- reference levels +15 / +18 / +24 dBu via jumper
- SNR: -116,8 dB RMS (20 Hz - 20 kHz) / -119,5 dB(A)
- THD @ -1 dBFS: -109 dB
- Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz)
- 2 x DSUB-25 connector (input/output)*, according to AES59
* suitable cabling to connect with BREAKOUT is available
Case Studies
FAQ
Which DIRECTOUT platforms support C Slot modules?
C Slot modules are supported by several DIRECTOUT smart audio platforms, including:
- PRODIGY.MP
- PRODIGY.MC
- MAVEN.A
Are DIRECTOUT C Slot modules suitable for broadcast and live production?
Yes. DIRECTOUT C Slot modules are widely used in broadcast, live touring, recording studios, theatres, and installed AV systems where reliable, high-quality analog and digital audio conversion is essential.
Can C Slot modules be combined with network audio modules?
Yes. DIRECTOUT smart audio platforms allow C Slot modules to operate alongside A Slot network audio modules such as Dante, RAVENNA, Milan/AVB, and SoundGrid for hybrid audio infrastructures.
Are DIRECTOUT C Slot modules scalable?
Yes. Users can populate multiple C Slots within compatible platforms to expand microphone inputs, line-level connectivity, or AES3 channels as production requirements grow.
