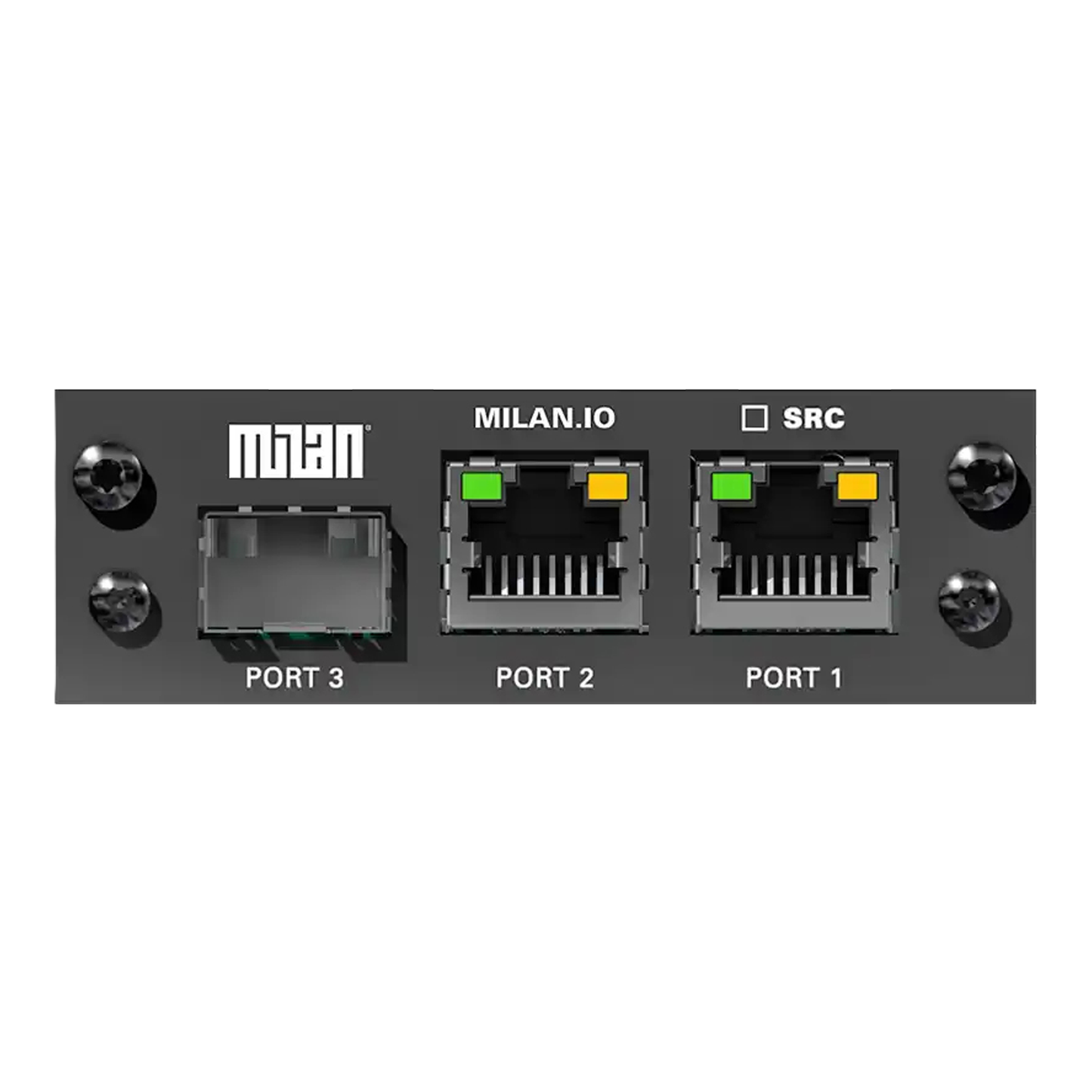

MILAN.IO is an audio network interface card* for the PRODIGY Series and MAVEN.A to connect with AVB/Milan streams.
Optional available as MILAN.SRC.IO with sample rate conversion (HD SRC) on board. The PRODIGY Series also offers low latency sample rate conversion (FastSRC™) for input and output.
Two redundant gigabit network interfaces with RJ45 or SFP connect up to 128 audio channels (input / output) through an internal switch.
The amount of audio channels is reduced at higher sample rates - 64 channels @ 2 FS or 32 channels @ 4 FS.
Milan is an audio networking technology created and maintained by Pro Audio market leaders in the Avnu Alliance®. Milan™ is a standards-based deterministic network protocol for real time media.
*Milan-certified
Collapsible content
Technical Specs
- 128 channels (1 FS), 64 channels (2 FS), 32 channels (4 FS)
- Sample rate 44.1 kHz up to 192 kHz
- Sample rate conversion (FastSRC™ in PRODIGY Series)
- Configurable internal switch
- Ethernet layer 2
- 2 redundant network interfaces (2 x RJ45 gigabit ethernet / 1 x SFP supporting optical connection) *
- Remote control via ATDECC controller (i.e. Hive) and browser
* SFP transceiver Network, compatible and available from DirectOut
Case Studies
FAQ
What is the difference between single network and dual network A Slot modules?
Single network A Slot modules provide one audio network interface, while dual network modules combine two networking technologies in one card, such as Dante-to-Milan or Dante-to-RAVENNA. Dual network modules are ideal for bridging different audio ecosystems and supporting hybrid workflows.
Which DIRECTOUT devices support A Slot modules?
A Slot modules are supported across several DIRECTOUT smart audio platforms, including PRODIGY.MP, PRODIGY.MX, PRODIGY.MC, and MAVEN.A. The number of available A Slots varies by hardware model.
What is the purpose of SRC in DIRECTOUT module names?
SRC stands for Sample Rate Conversion. Modules with SRC functionality include integrated high-definition sample rate conversion, enabling stable interoperability between devices running on different clock domains or sample rates.
What is the maximum channel count for A Slot modules?
Depending on the module type, A Slot modules can support up to 256 audio channels. Certain high-capacity modules, such as MADI4.IO and RAVENNA modules with optional licensing, offer expanded channel capabilities.
Which audio networking protocols are supported by DIRECTOUT A Slot modules?
DIRECTOUT A Slot modules support major professional audio networking standards including Dante, RAVENNA, AES67, ST 2110, Milan/AVB, and SoundGrid. This flexibility enables seamless integration into modern IP-based audio infrastructures.
