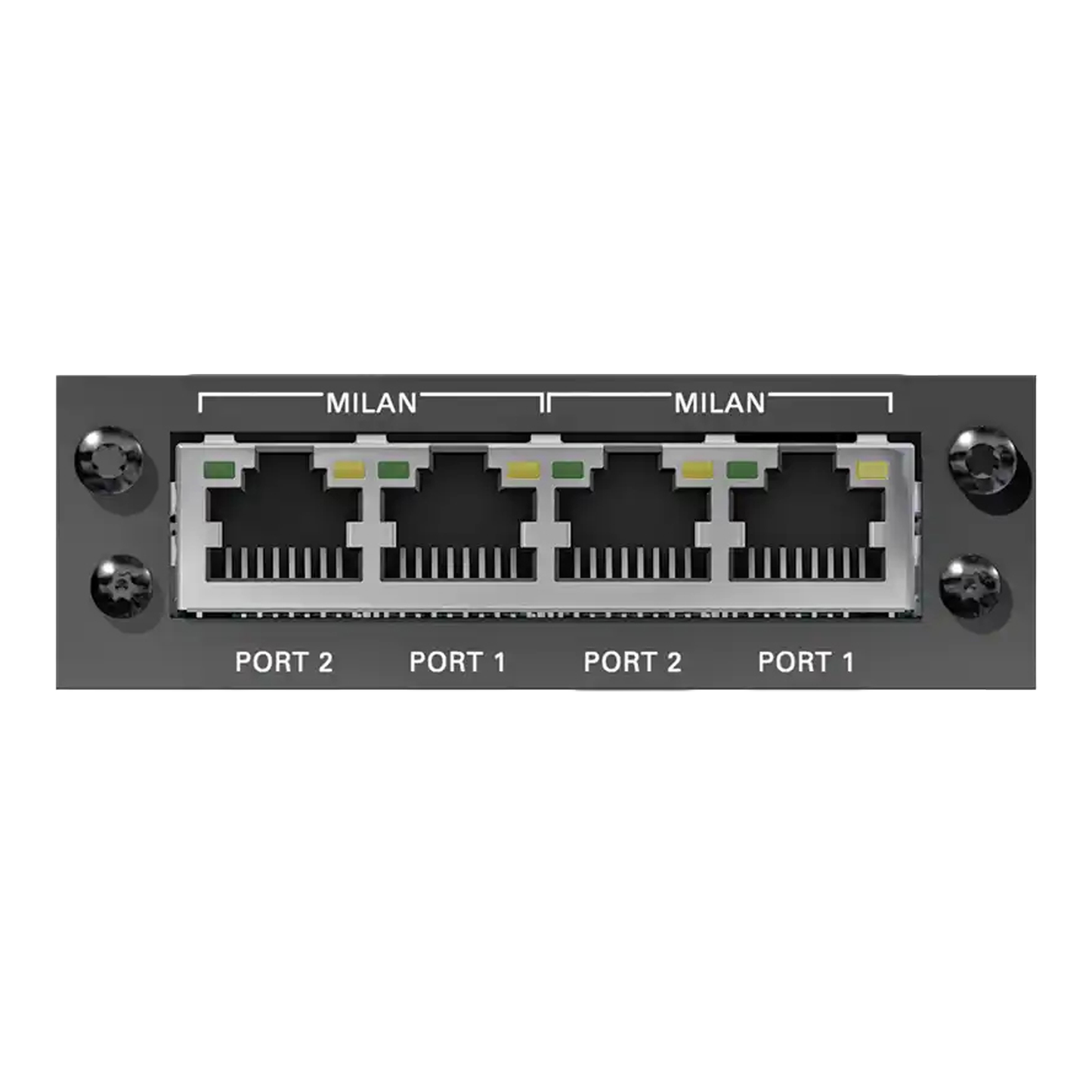

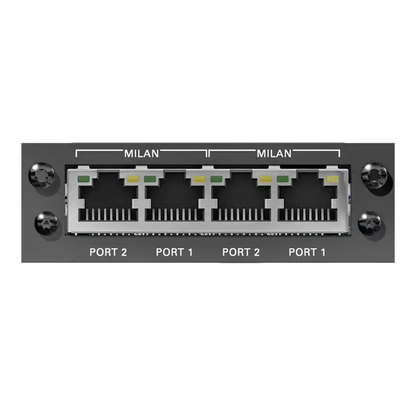

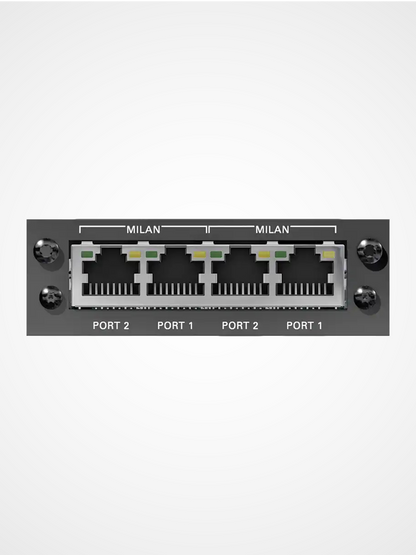

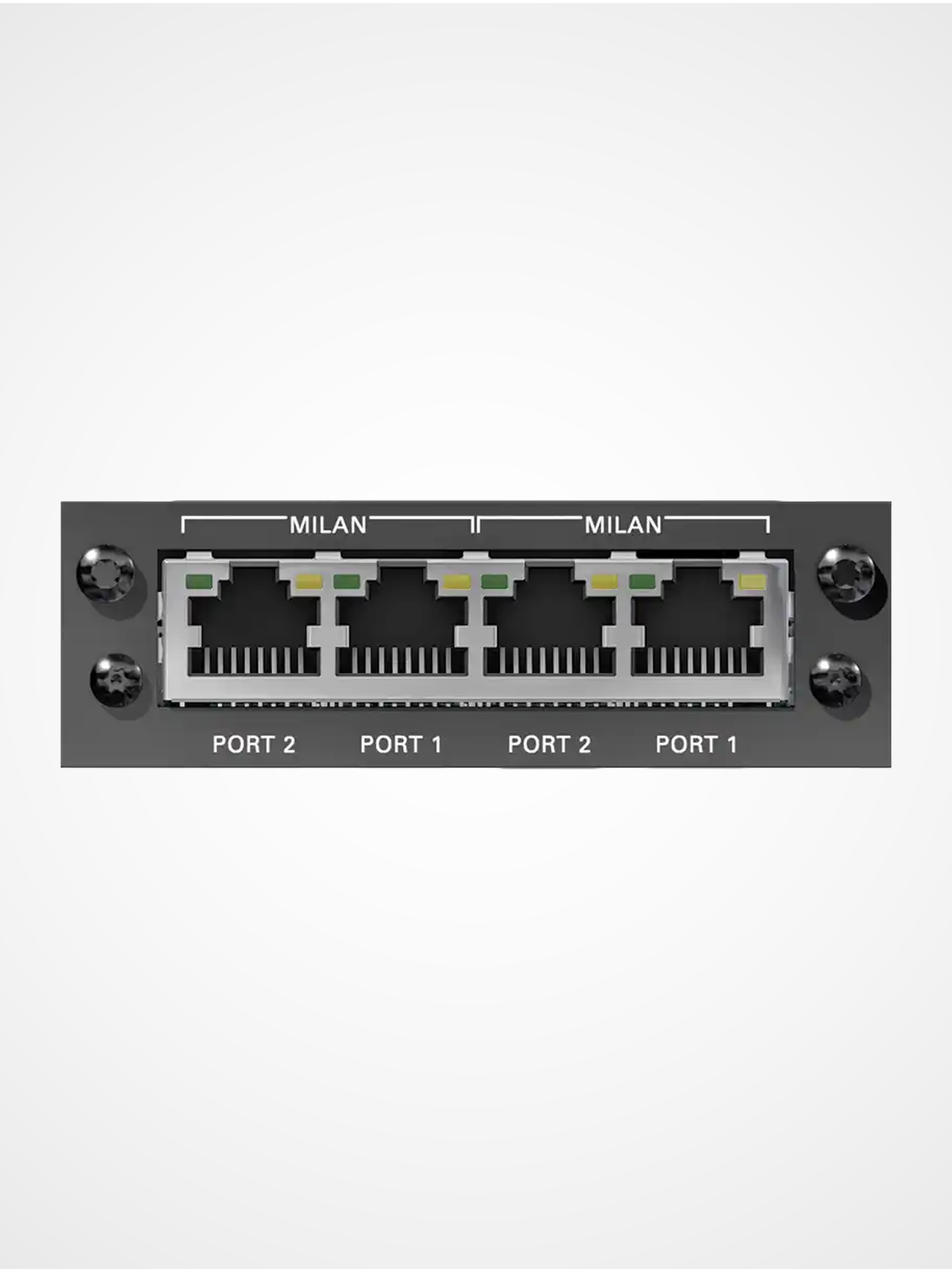

MILAN.MILAN.SRC.IO is a dual network audio interface card for the PRODIGY Series and MAVEN.A to connect with 2 x 64 channels of MILAN* streams.
One interface card, two audio engines
Hosting two miniPCI boards the interface card offers 2 x 64 channels of MILAN input and output, reaching out 128 channels on a single A module. It can also be connected to two different MILAN environments with 64 channels each.
Sample Rate Conversion
Individual HD SRC for bi-directional sample rate conversion is on board as a standard.
The two audio network boards can be operated at different sample rates.
Dual network modules ensure a seamless connection across clock boundaries and different audio protocols on a single module.
Stream Redundancy
There are 2 x 2 independent network interfaces to connect each protocol via a second stream (Port 1 / Port 2).
Milan is an audio networking technology created and maintained by Pro Audio market leaders in the Avnu Alliance®. Milan™ is a standards-based deterministic network protocol for real time media.
*Milan-certified
Collapsible content
Technical Specs
Key features MILAN
- 2 x 64 channels (1 FS), 2 x 32 channels (2 FS), 2 x 16 channels (4 FS)
- Sample rate 44.1 kHz up to 192 kHz
- Sample rate conversion (HD SRC on board)
- Switch configurable (Internal AVB switch)
- Ethernet layer 2
- 2 x 2 RJ45 gigabit ethernet
- Remote control via ATDECC controller (i.e. Hive) and browser
NOTE: DNA modules are not supported by Lawo HOME.
Case Studies
FAQ
What is the difference between single network and dual network A Slot modules?
Single network A Slot modules provide one audio network interface, while dual network modules combine two networking technologies in one card, such as Dante-to-Milan or Dante-to-RAVENNA. Dual network modules are ideal for bridging different audio ecosystems and supporting hybrid workflows.
Which DIRECTOUT devices support A Slot modules?
A Slot modules are supported across several DIRECTOUT smart audio platforms, including PRODIGY.MP, PRODIGY.MX, PRODIGY.MC, and MAVEN.A. The number of available A Slots varies by hardware model.
What is the purpose of SRC in DIRECTOUT module names?
SRC stands for Sample Rate Conversion. Modules with SRC functionality include integrated high-definition sample rate conversion, enabling stable interoperability between devices running on different clock domains or sample rates.
What is the maximum channel count for A Slot modules?
Depending on the module type, A Slot modules can support up to 256 audio channels. Certain high-capacity modules, such as MADI4.IO and RAVENNA modules with optional licensing, offer expanded channel capabilities.
Which audio networking protocols are supported by DIRECTOUT A Slot modules?
DIRECTOUT A Slot modules support major professional audio networking standards including Dante, RAVENNA, AES67, ST 2110, Milan/AVB, and SoundGrid. This flexibility enables seamless integration into modern IP-based audio infrastructures.
