DirectOut Rosendahl MIF4 Timecode Interface

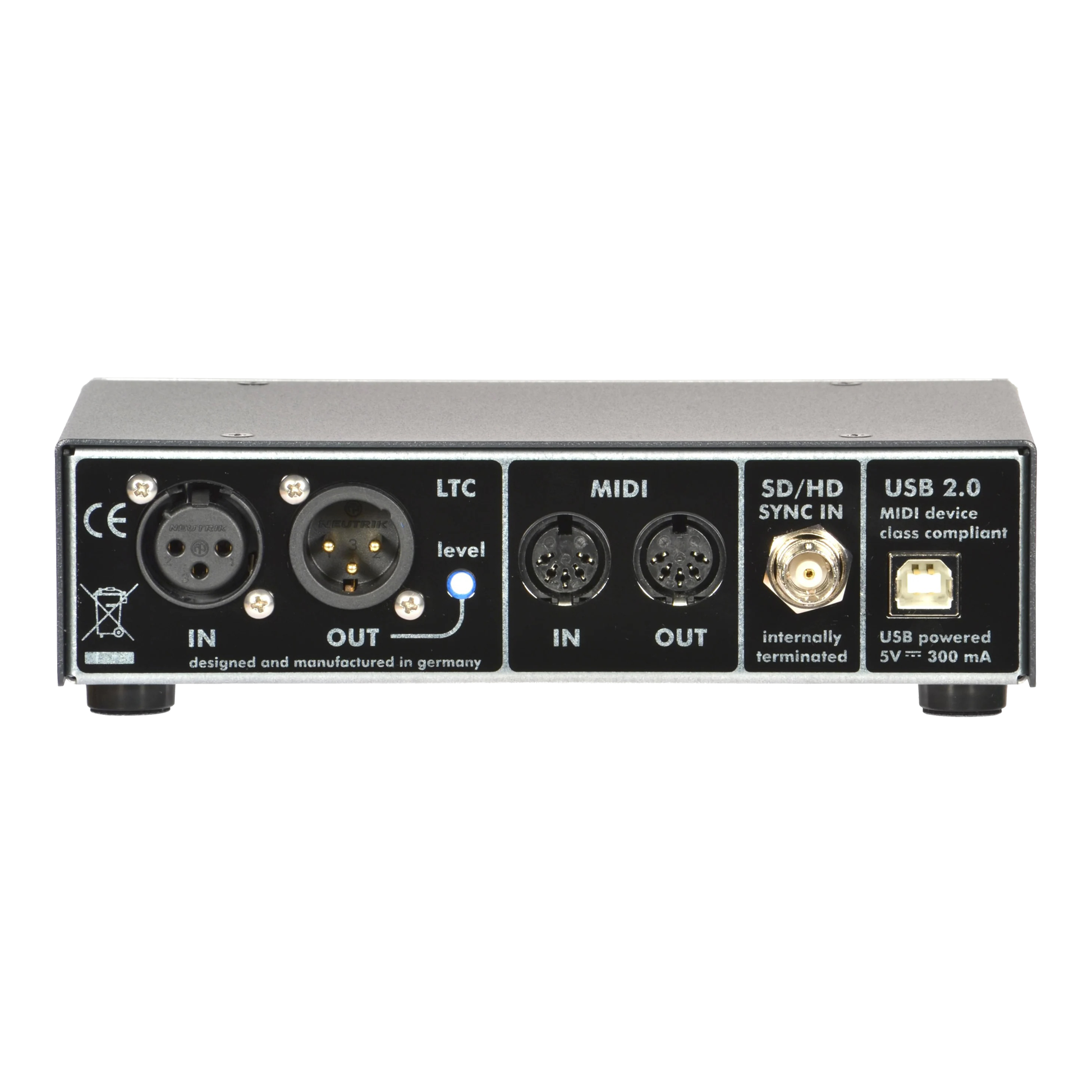

LTC Input

• XLR 3-pin female, balanced
• Pin configuration:
• Pin 1 = GND
• Pin 2 = (+)
• Pin 3 = (-)

• 10 kΩ input impedance
• Reads forward, reverse, and stationary timecode
• Supports 5–500% nominal speed (SMPTE 12M)
• Input level tolerance: -30 to +20 dBu

LTC Output

• XLR 3-pin male, balanced
• Pin configuration:
• Pin 1 = GND
• Pin 2 = (+)
• Pin 3 = (-)

• 1 kΩ source impedance
• Short-circuit protected
• Outputs forward and stationary timecode (SMPTE 12M)
• Output level adjustable from 0 to +8 dBu (5.5 Vpp)

MIDI Input

• 5-pin DIN connector
• MIDI Specification 1.0 compliant

Supports:

• MTC quarter frames
• MTC full message (time and user bits)
• MMC stop/play/deferred play/locate
• Write user bits (field 47)
• Rosendahl SysEx

MIDI Output

• 5-pin DIN connector
• MIDI Specification 1.0 compliant

Supports:

• MTC quarter frames
• MTC full message
• Rosendahl SysEx

USB

• USB Type-B
• Class-compliant MIDI (USB Audio)
• Plug-and-play support:
• Windows XP or later
• macOS OSX
• Supports:
• MTC quarter frames
• MTC full message (time and user bits)MMC stop/play/deferred play/locate
• Write user bits (field 47)
• Rosendahl SysEx

Sync Input

• BNC connector
• Internally terminated
• 300 mV sync
• ±300 mV tri-level sync
• Auto-detects video standards:
• 576i47.95
• 576i48
• 576i50 (PAL)
• 480i59.94 (NTSC)
• 480i60
• 720p50
• 720p59.94
• 720p60
• 1080i47.95
• 1080i48
• 1080i50
• 1080i59.94
• 1080i60
• 1080p23.98
• 1080p24
• 1080p25
• 1080p29.97
• 1080p30
• 1080p50
• 1080p59.94
• 1080p60

Power

• USB bus powered
• 5V DC<300 mA via host computer
• Can also operate standalone using external power adapter

Dimensions

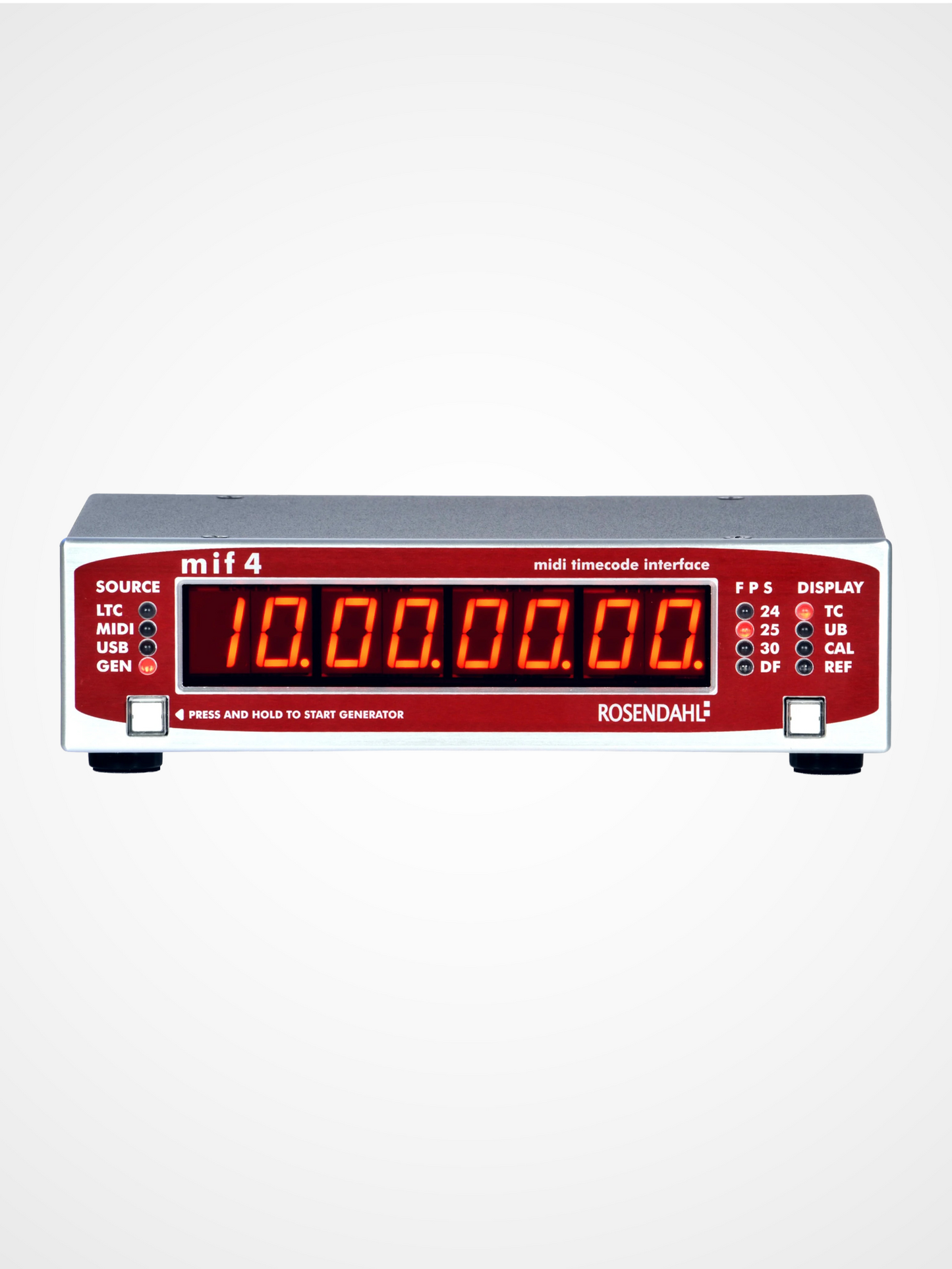

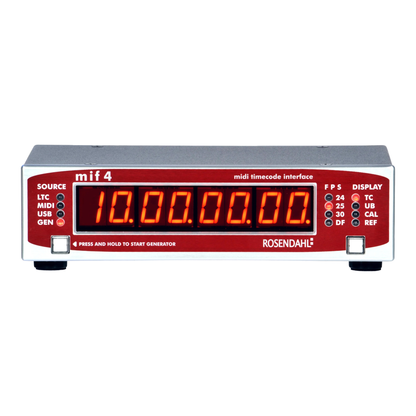

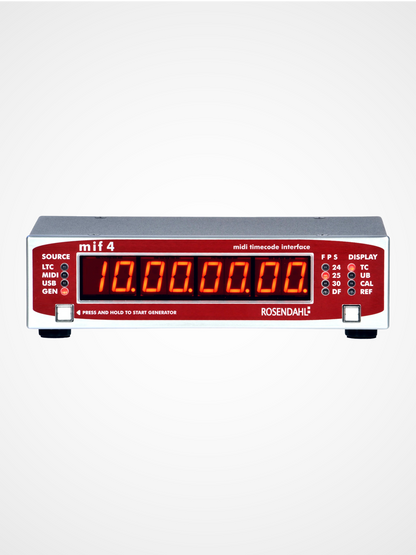

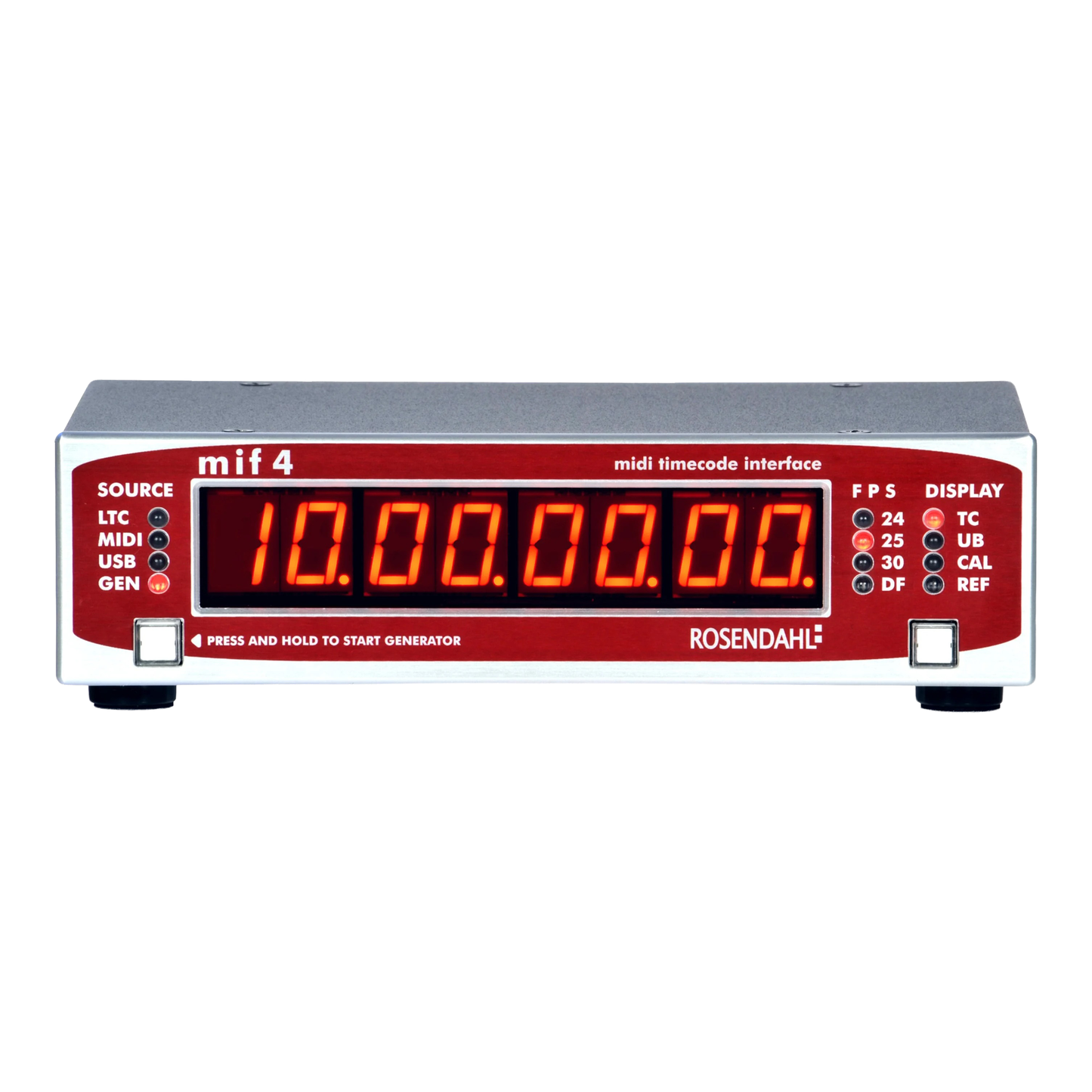

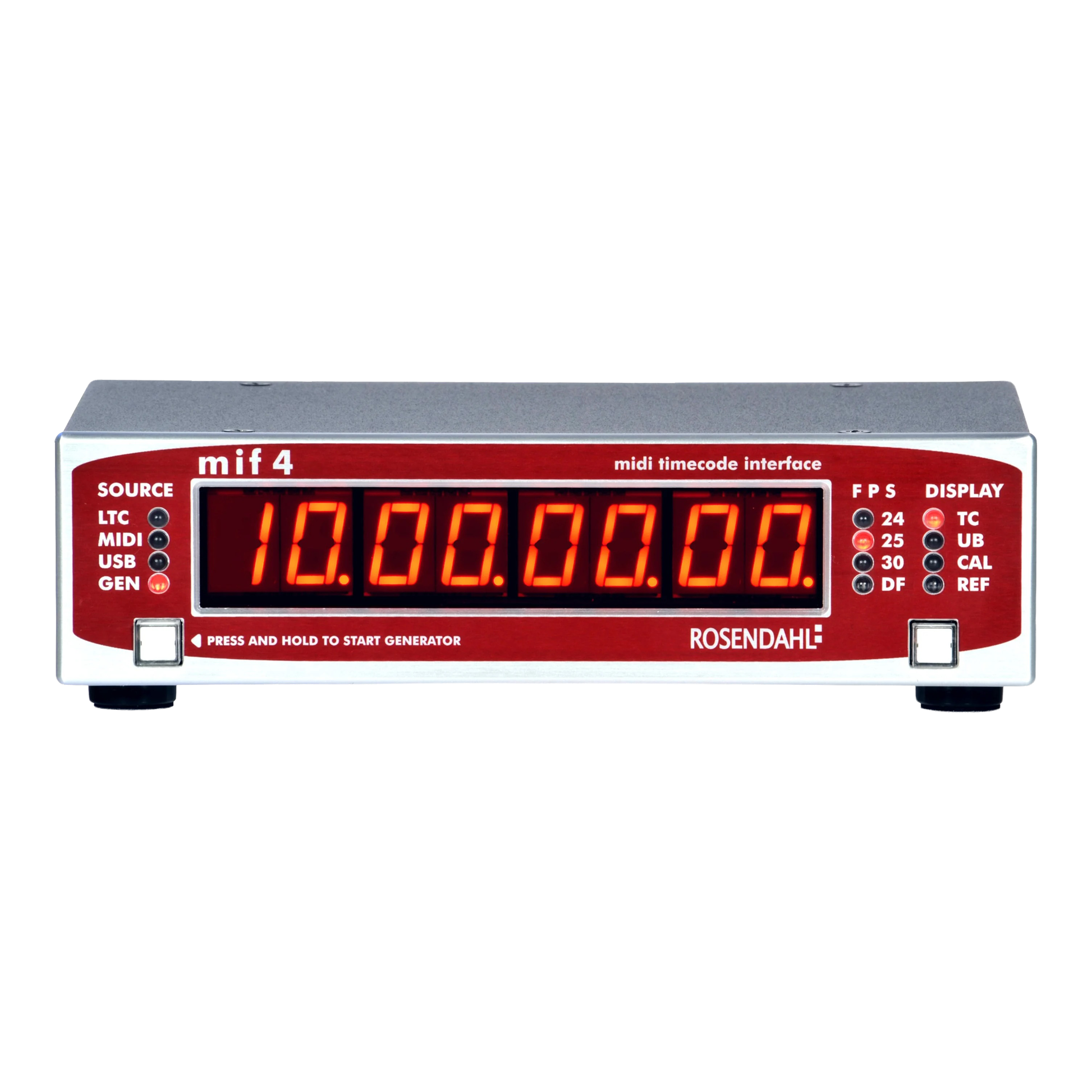

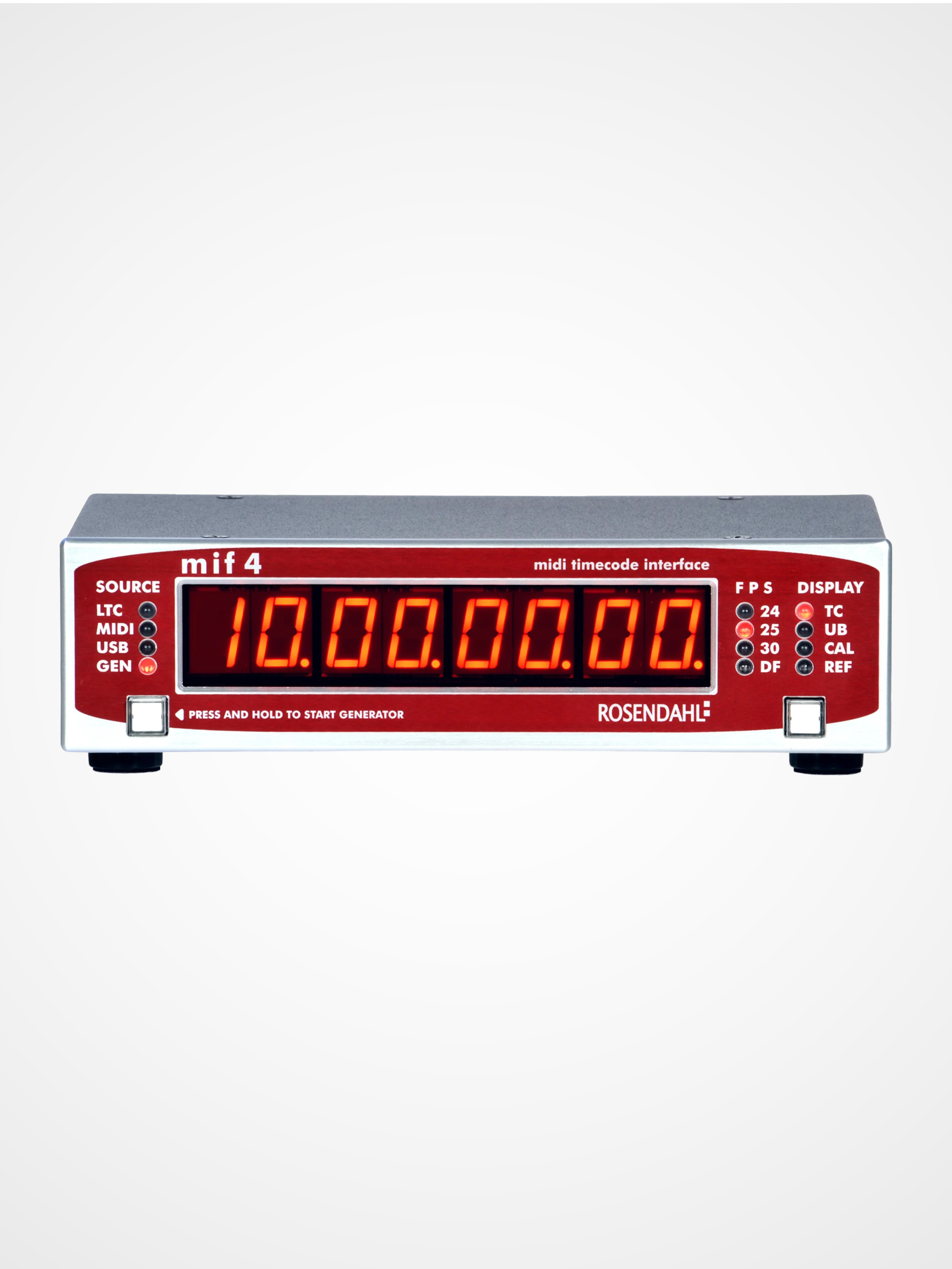

• 0.56" 7-segment LED display
• 44 mm (H = 1U) × 168 mm (W) × 110 mm (D without BNC)
