DirectOut SC.IO B Slot
DirectOut SC.IO B Slot
In stock
Couldn't load pickup availability

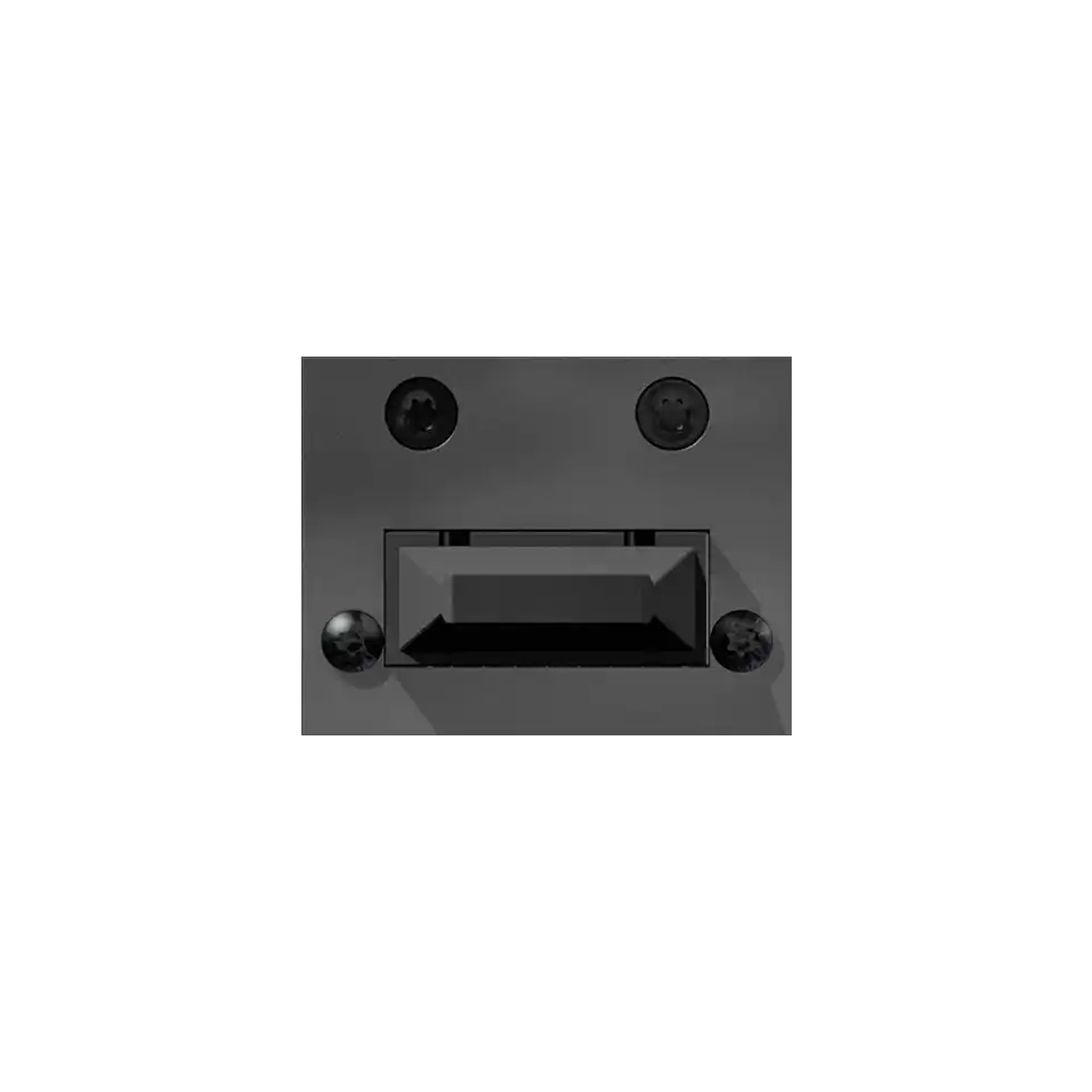

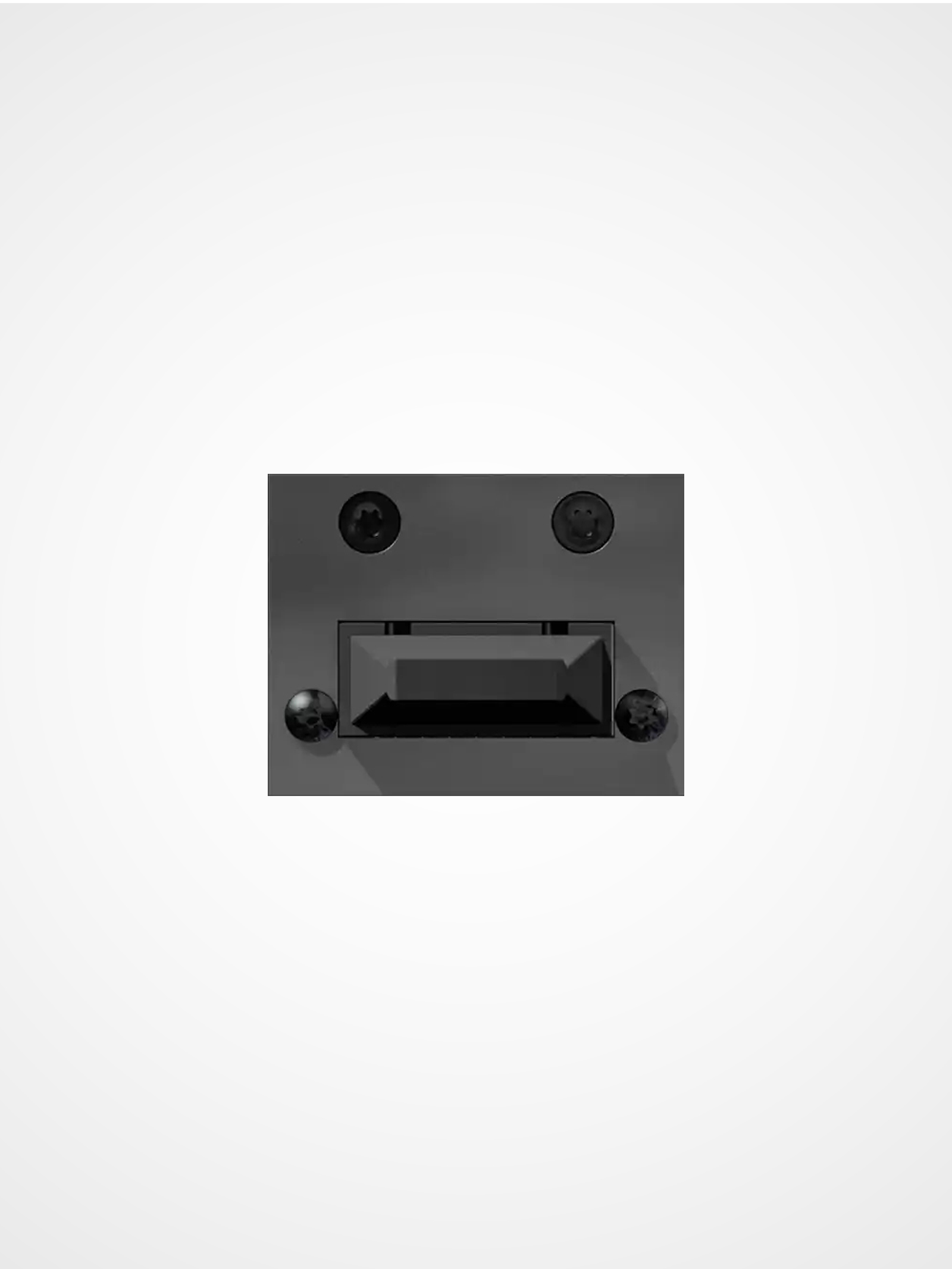

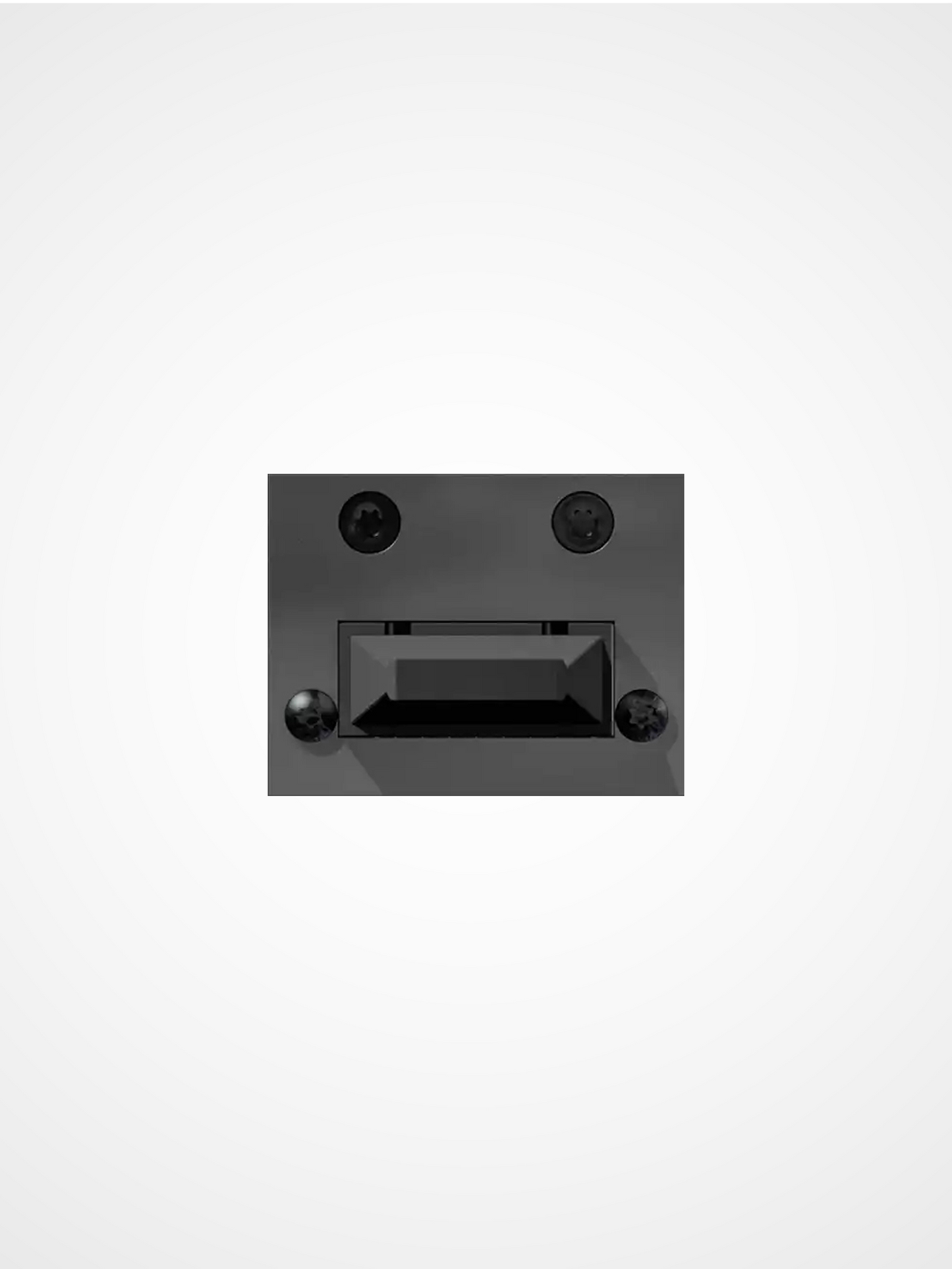

SC.IO is a single-port MADI module for the PRODIGY Series.
The MADI port connects 64 audio channels of digital input and output signals via a SC socket.
The socket is available for multi-mode cabling. A version for single-mode cabling is available on request.
The amount of audio channels is reduced at higher sample rates - 32 channels @ 2 FS or 16 channels @ 4 FS.
The transmission via fibre cable typically allows for long distance connections depending on the fibre mode (up to 2000 m, multi-mode or 10000 m, single mode) and the sender / receiver device.
The fibre modes of transceiver and cabling are required to match.
The PRODIGY Series offers low latency sample rate conversion (FastSRC™) for input and output.

Collapsible content
Technical Specs
- 64 channels (1 FS), 32 channels (2 FS), 16 channels (4 FS)
- Sample Rate 44.1 kHz up to 192 kHz
- Sample rate conversion (FastSRC™ in PRODIGY Series)
- 48k / 96kFrame
- 56 / 57 / 64 channel mode
- AES10 compliant
- 2 x BNC socket, coaxial 75 Ω (input/output)
Case Studies
FAQ
Which DIRECTOUT platforms support B Slot modules?
B Slot modules are supported by several DIRECTOUT platforms including:
- PRODIGY.MP
- PRODIGY.MC
- PRODIGY.MX
The number of available B Slots depends on the hardware model.
How many channels do DIRECTOUT B Slot modules support?
All DIRECTOUT B Slot modules support up to 64 channels of MADI audio per module, compliant with the AES10 MADI standard.
What is the difference between A Slot and B Slot modules?
A Slot modules support audio networking, USB, and multi-port MADI with higher channel capacities, while B Slot modules are dedicated single-port MADI interfaces with 64-channel operation. B Slot modules are optimized for compact and reliable MADI expansion.
Can B Slot modules be combined with audio network modules?
Yes. DIRECTOUT smart audio platforms allow users to combine B Slot MADI modules with A Slot network audio modules such as Dante, RAVENNA, Milan, and SoundGrid for hybrid audio workflows.
