DirectOut USB.IO A Slot
DirectOut USB.IO A Slot
In stock
Couldn't load pickup availability

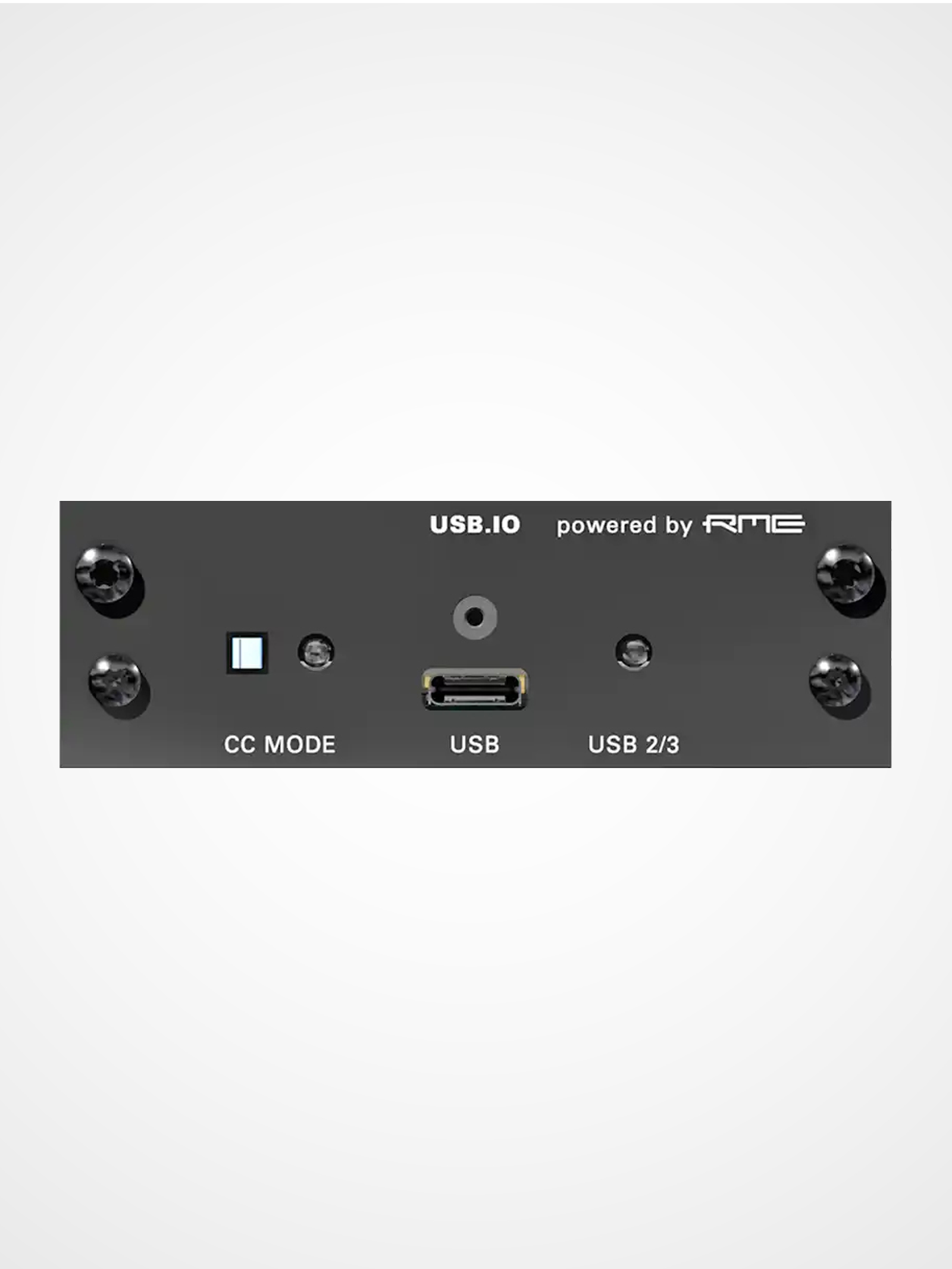

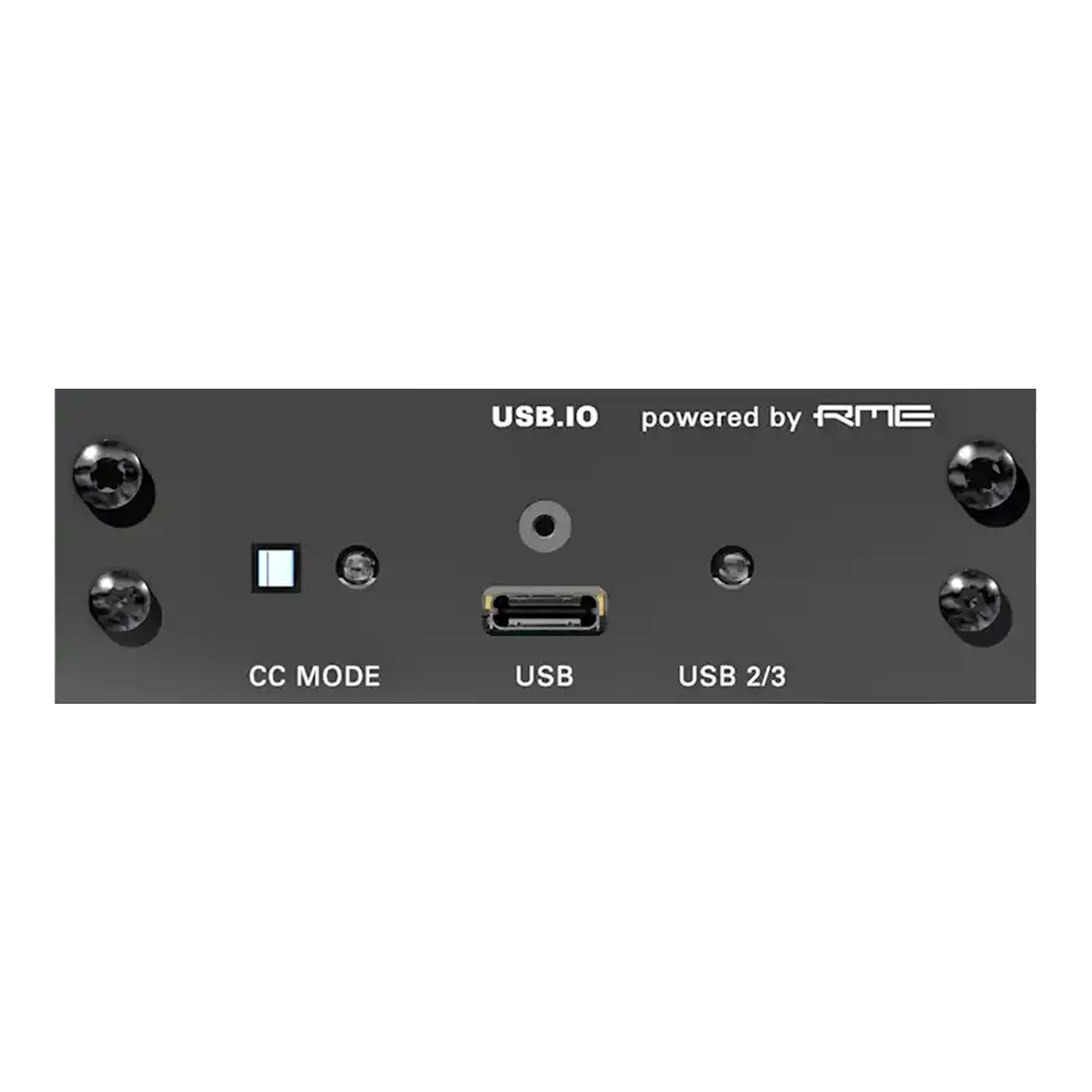

USB.IO is a USB audio interface module for the PRODIGY Series and MAVEN.A.
Based on the USB 3.0 core by RME it offers 128 channels of I/O at standard sample rates.
USB.IO benefits from high performance drivers for Windows and macOS with unrivalled stability and RME's renowned low latency technology.
USB.IO eases the integration of DirectOut’s converters and multifunction processors into computer-based production systems, on tour and in the studio.
Operation
Driver-based USB 3 for Windows and macOS
Class Compliant mode (CC)
Class Compliant mode allows for driverless operation of the module, making it instantly compatible with iPads and other devices for seamless, on-the-go audio production.
TotalMix FX
RME's TotalMix FX offers an extensive range of mixing and routing options. From up to 128 separate sub-mixes over internal Loopback routing to mixer and matrix views and controls, TotalMix FX allows flexible and versatile handling of the available record and playback channels, providing users with an all-in-one solution for interfacing to an external computer.
EARS
DirectOut's proprietary Enhanced Automatic Redundancy Switching technology ensures continuous audio playback by automatically switching to a backup source in the event of a signal loss. Managed via globcon control of the host device, EARS provides an additional layer of reliability for live performances and broadcasts.
Collapsible content
Technical Specs
- USB 3.0: 128 channels (1 FS), 64 channels (2 FS), 32 channels (4 FS)
- USB 2.0: 64 channels
- USB C with USB 2/3 support and top screw locking
- Driver Windows: ASIO, WDM
- Driver macOS: Kernel Extension, Driver Kit Core Audio
- USB class-compliant mode with full USB 3.0 support and 128 channels I/O
- TotalMix FX
- Sample rate: 44.1 kHz up to 192 kHz
No liability for misprints and technical changes assumed.
Case Studies
FAQ
What is the difference between single network and dual network A Slot modules?
Single network A Slot modules provide one audio network interface, while dual network modules combine two networking technologies in one card, such as Dante-to-Milan or Dante-to-RAVENNA. Dual network modules are ideal for bridging different audio ecosystems and supporting hybrid workflows.
Which DIRECTOUT devices support A Slot modules?
A Slot modules are supported across several DIRECTOUT smart audio platforms, including PRODIGY.MP, PRODIGY.MX, PRODIGY.MC, and MAVEN.A. The number of available A Slots varies by hardware model.
What is the purpose of SRC in DIRECTOUT module names?
SRC stands for Sample Rate Conversion. Modules with SRC functionality include integrated high-definition sample rate conversion, enabling stable interoperability between devices running on different clock domains or sample rates.
What is the maximum channel count for A Slot modules?
Depending on the module type, A Slot modules can support up to 256 audio channels. Certain high-capacity modules, such as MADI4.IO and RAVENNA modules with optional licensing, offer expanded channel capabilities.
Which audio networking protocols are supported by DIRECTOUT A Slot modules?
DIRECTOUT A Slot modules support major professional audio networking standards including Dante, RAVENNA, AES67, ST 2110, Milan/AVB, and SoundGrid. This flexibility enables seamless integration into modern IP-based audio infrastructures.
