Waves Certified Network Cable - Ethercon Panel Feedthrough

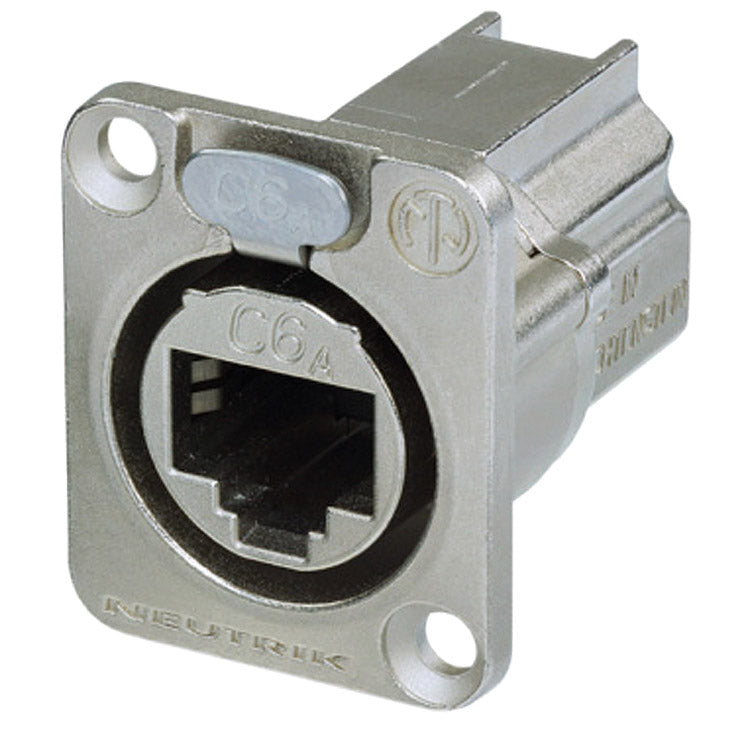

The NE8FDX-P6 etherCON CAT6A panel feedthrough connector is a professional panel-mount network connector designed for building robust Ethernet patch panels and rack interfaces for audio networking systems.

Featuring a shielded CAT6A feedthrough design, this connector allows engineers to extend Ethernet connections through rack panels, stage boxes, or equipment chassis while maintaining full network performance. Standard RJ45 cables connect on both sides of the connector, making it easy to create clean, professional patch points within touring racks and installations.

This type of connector is commonly used when building Waves SoundGrid network infrastructure, where reliable Ethernet connectivity is critical for communication between consoles, servers, stageboxes and network switches.



Designed for Waves SoundGrid Systems

In Waves SoundGrid networks, panel feedthrough connectors like the NE8FDX-P6 are frequently used to add etherCON ports to rack patch panels. This allows engineers to create robust network interfaces for touring racks and stage systems while protecting internal cabling.

When used with Waves SoundGrid-certified cables, these connectors help maintain stable network communication between key SoundGrid components such as:

LV1 Classic consoles

Waves SoundGrid servers

Waves Ionic stageboxes

Network switches



Typical Waves LV1 Classic System Application

A common use case is building a stage rack networking interface for an LV1 system.

For example:

• A Waves-certified NETGEAR AV Line switch located on stage connects to Ionic stageboxes and other SoundGrid devices.

• The network connection is then routed to front-of-house via an etherCON cable.

• The NE8FDX-P6 panel connector is used to create a secure patch point on the rack panel for that connection.

This allows engineers to easily connect and disconnect the FOH network link while protecting the internal wiring inside the rack. It also creates a robust, touring-ready interface for SoundGrid systems.

Rugged etherCON Design

The connector uses the etherCON ruggedised shell design, providing secure locking connections for professional stage environments. The latch-locking mechanism prevents accidental disconnection while the shielded construction helps protect against electrical noise and interference.

The CAT6A specification supports data transmission speeds up to 10 Gb/s, ensuring sufficient bandwidth for demanding audio networking applications.

Key Features

• etherCON CAT6A panel feedthrough connector

• Part number: NE8FDX-P6

• Designed for patch panels and rack mounting

• RJ45 feedthrough connection on both sides

• Shielded construction for reliable network performance

• Supports CAT6A / 10 Gb Ethernet

• Compatible with etherCON locking connectors

• Ideal for Waves SoundGrid system infrastructure
