WAVES Extreme-C SoundGrid Server
WAVES Extreme-C SoundGrid Server
In stock
Couldn't load pickup availability
WAVES Extreme-C SoundGrid Server in stock and available to buy now from Nifty Audio, the UK’s exclusive Waves and DiGiGrid distributor.
Updated with a 10th-generation Intel® Core™ CPU and a sleek new industrial design, the Extreme Server-C is a compact powerhouse. It effortlessly processes hundreds of SoundGrid-compatible plugins in real time, with ultra-low latency as low as 0.8 milliseconds.

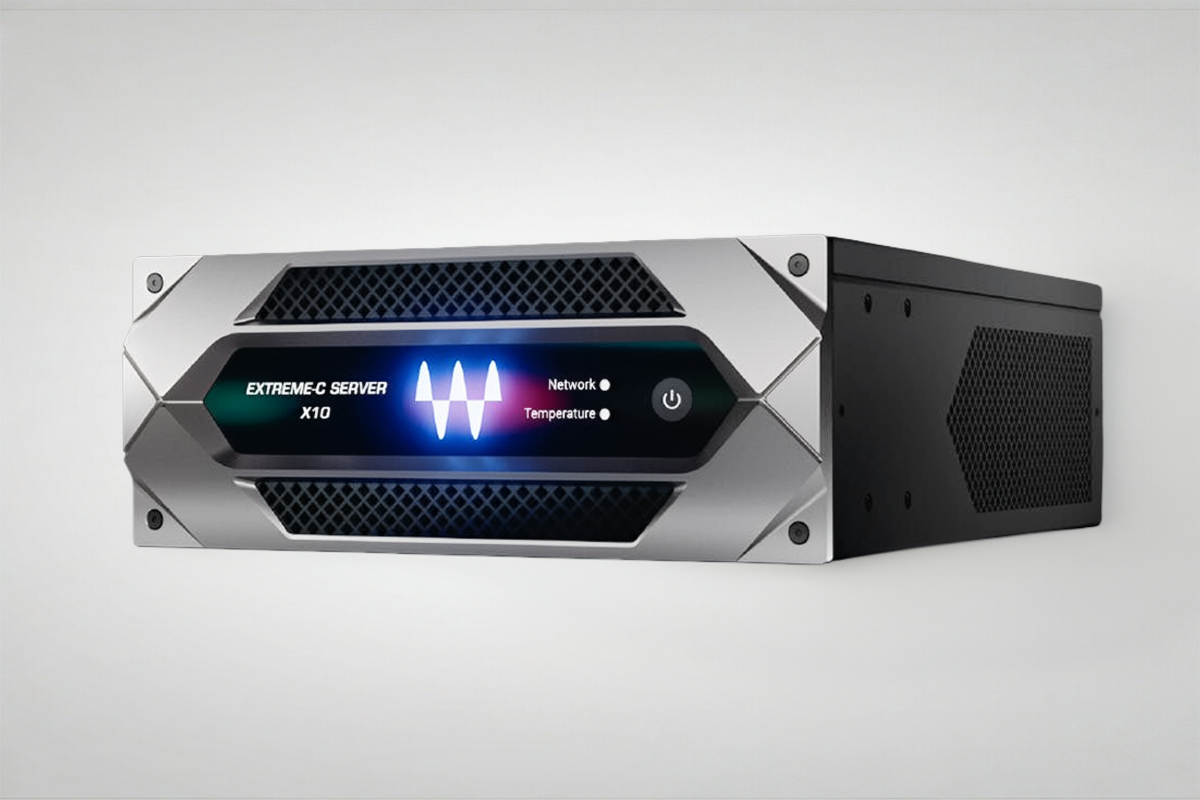

Built for durability and performance, the next-gen Extreme Server-C features a robust 2U chassis at just half the width of a standard 19-inch rack. You can mount a single server with rack ears, or pair two units side-by-side for redundancy.

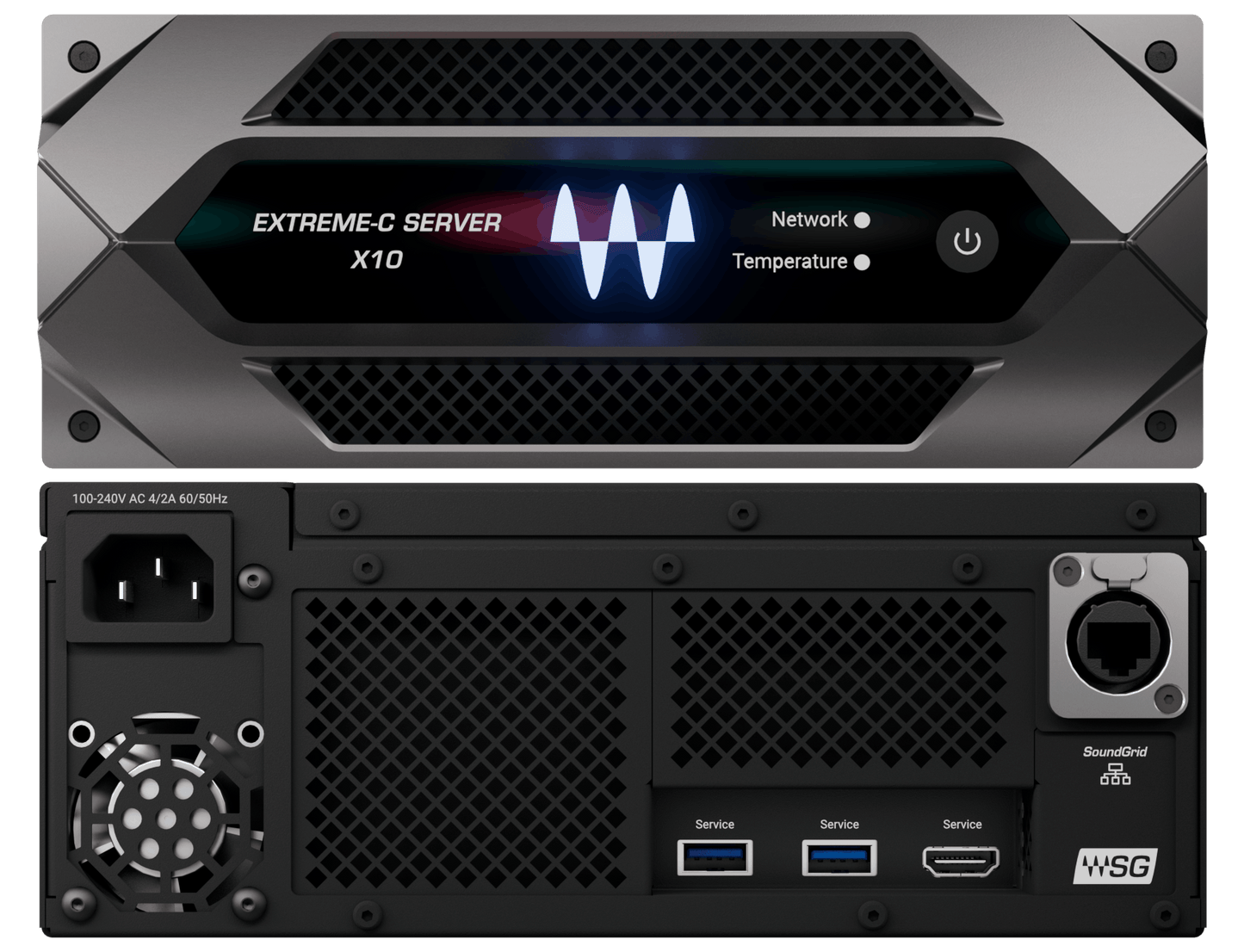

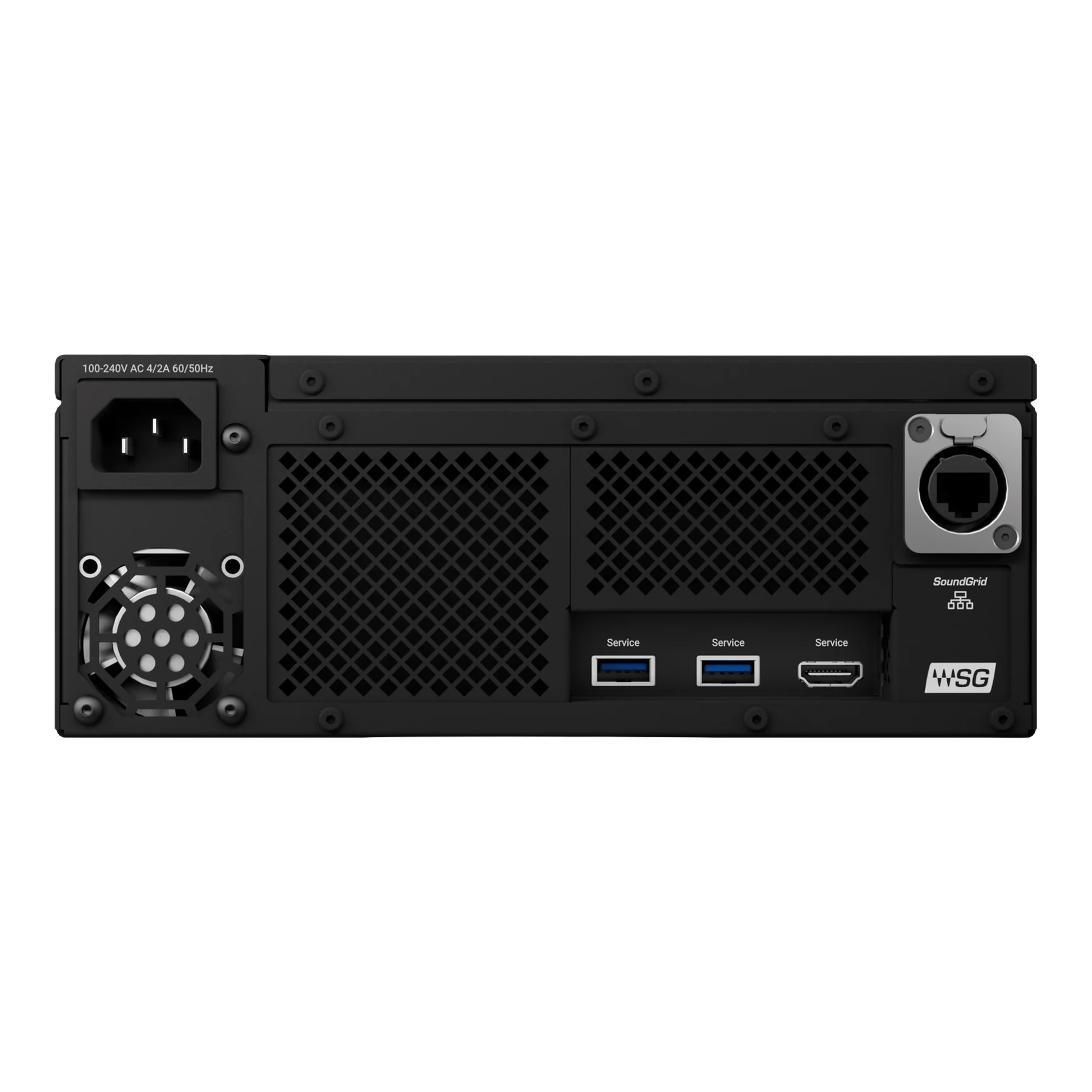

Designed for serious reliability, Extreme Server-C offers LED indicators for easy network and temperature monitoring, rugged Neutrik etherCon connections, and enhanced sturdy RAM positioning. Plus, it’s compact enough to fit in your carry-on, making it easy to take your mixing setup anywhere.
Key Features:
-

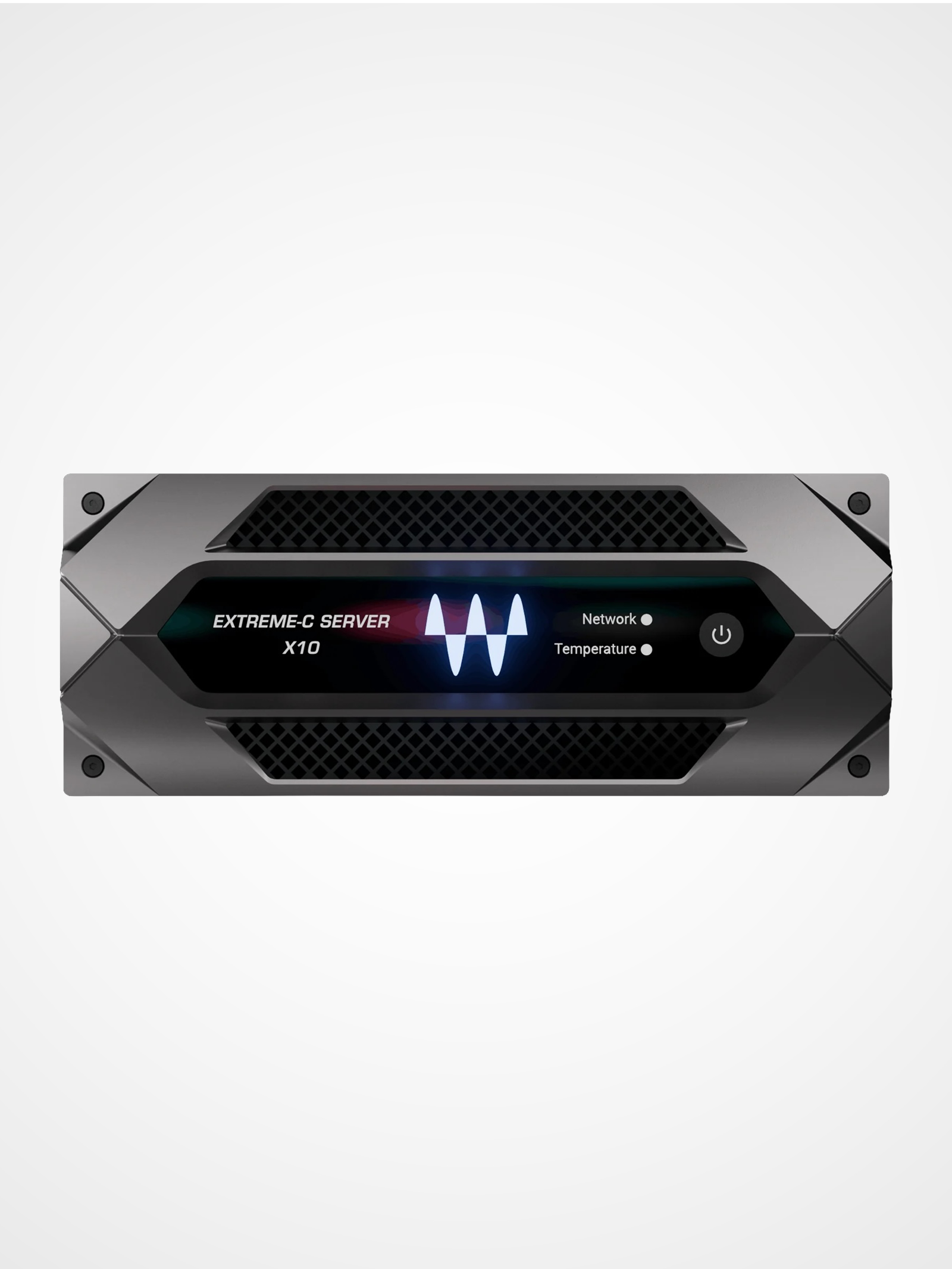

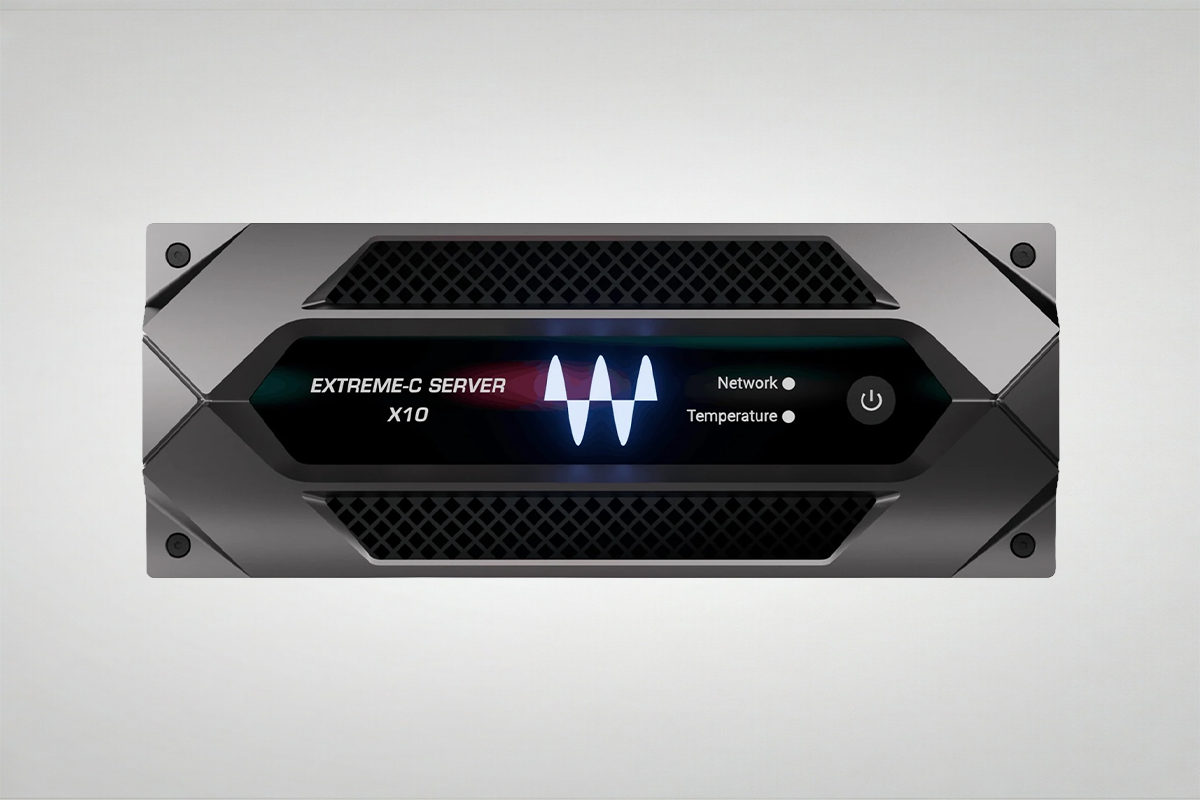

NEW: LED indicators for easy network and temperature monitoring
-
NEW: Powered by Intel® 10th Generation Core™ i7-10700 CPU and 8 GB RAM
-
NEW: Sleek, durable industrial design with a 2U half-rack form factor
-
Massive real-time plugin processing power
-
Ultra-low latency: as low as 0.8 milliseconds at 44.1–96 kHz
-

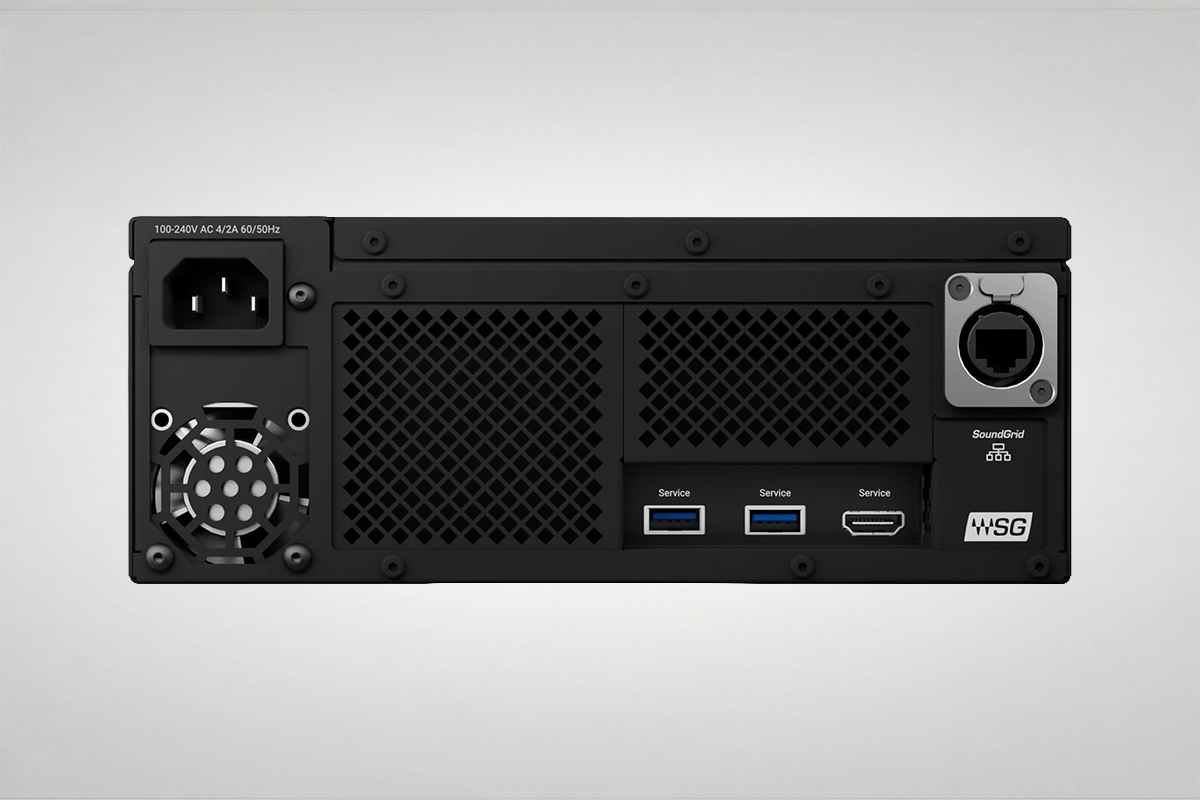

Rugged Neutrik etherCon connector for secure networking
-
Reliable, travel-friendly design. Perfect for mobile setups
-
Free 1-year warranty included; extended warranties available
Take your mixing to the extreme, wherever you go.
Collapsible content
Technical Specs
CPU: Intel® i7-10700
RAM: 8 GB
Motherboard: Gigabyte GA-IMB410N
LAN Card: Intel® I211
Dimensions
- Length: 22 cm / 8.7 in
- Height: 8.6 cm / 3.4 in
- Depth: 28.4 cm / 11.2 in
- Device Weight: 3.4 kg / 7.5 lb
Power Consumption (100~240VAC 50/60Hz): 65W
Operating Environment temperature range: 50° to 95°F / 10° to 35°C
Max Environment temperature: 104°F / 40°C
Case Studies
FAQ
What latency can I expect from the Extreme-C?
The Extreme-C delivers ultra-low latency as low as ~0.8 ms, depending on system configuration and sample rate.
This makes it suitable for:
- Real-time insert processing
- Monitor mixing
- Live vocal and instrument processing
How compact is the Extreme-C?
One of its key advantages is its portable form factor:
- 2U height, half-rack width
- Lightweight and travel-friendly
- Can be mounted side-by-side for redundancy
This makes it ideal for compact fly rigs and touring systems.
Does the Extreme-C SoundGrid Server support redundancy?
Yes. The Extreme-C is commonly used in redundant server configurations:
- Primary + secondary DSP servers
- Automatic failover within SoundGrid systems
- Dual mounting (two units in one rack space)
This is standard practice in touring, broadcast, and mission-critical environments.
Can I use multiple Extreme-C servers in one system?
Yes. Multiple Extreme-C servers can be used to:
- Increase total DSP capacity
- Split processing across systems
- Provide redundancy
This is common in larger live and broadcast systems.
What’s the difference between Waves Extreme-C SoundGrid Server, Waves Titan SoundGrid Server, and Waves Titan-R SoundGrid Server?
All three servers run the same Waves SoundGrid DSP engine and provide identical audio quality. The differences are in processing capacity, form factor, and power supply design.
- Extreme-C: Compact, high-performance server designed for portable and mid-to-large systems
- Titan: Higher processing capacity, full 2U rack format
- Titan-R: Same processing capacity as Titan, with dual redundant power supplies
