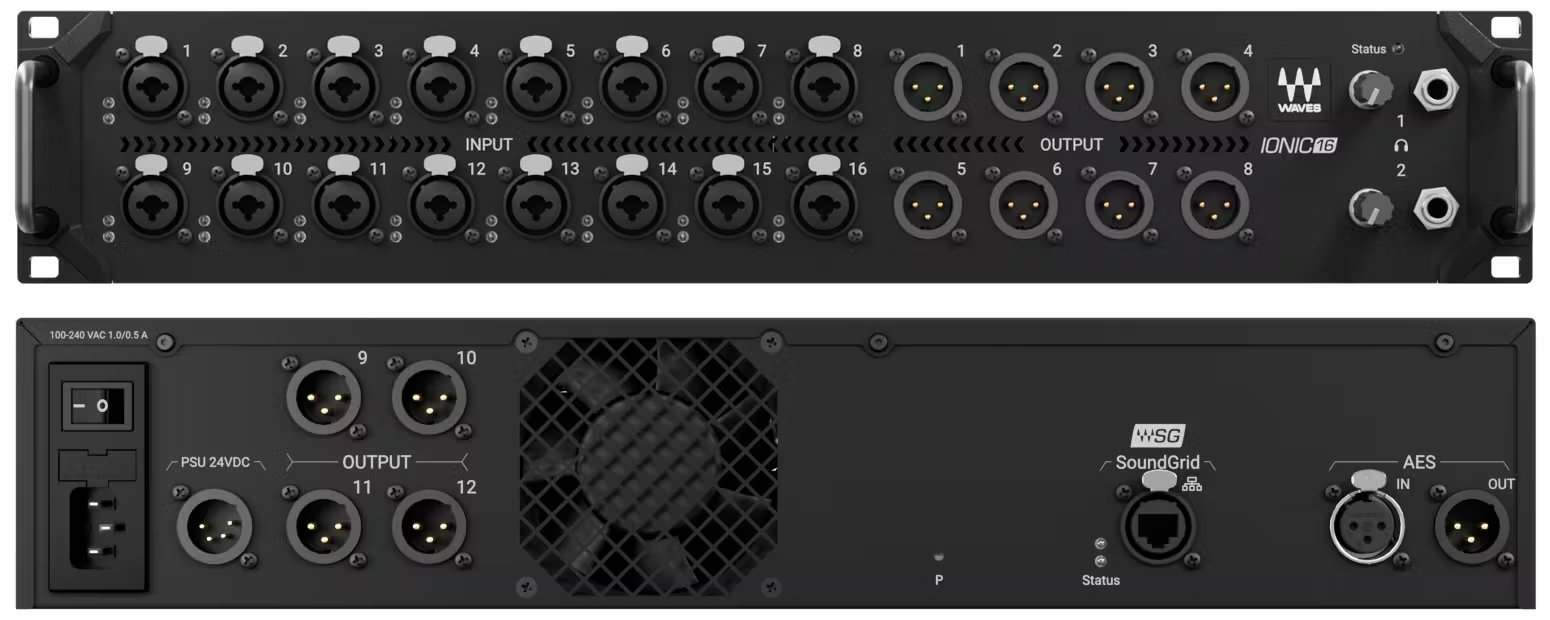

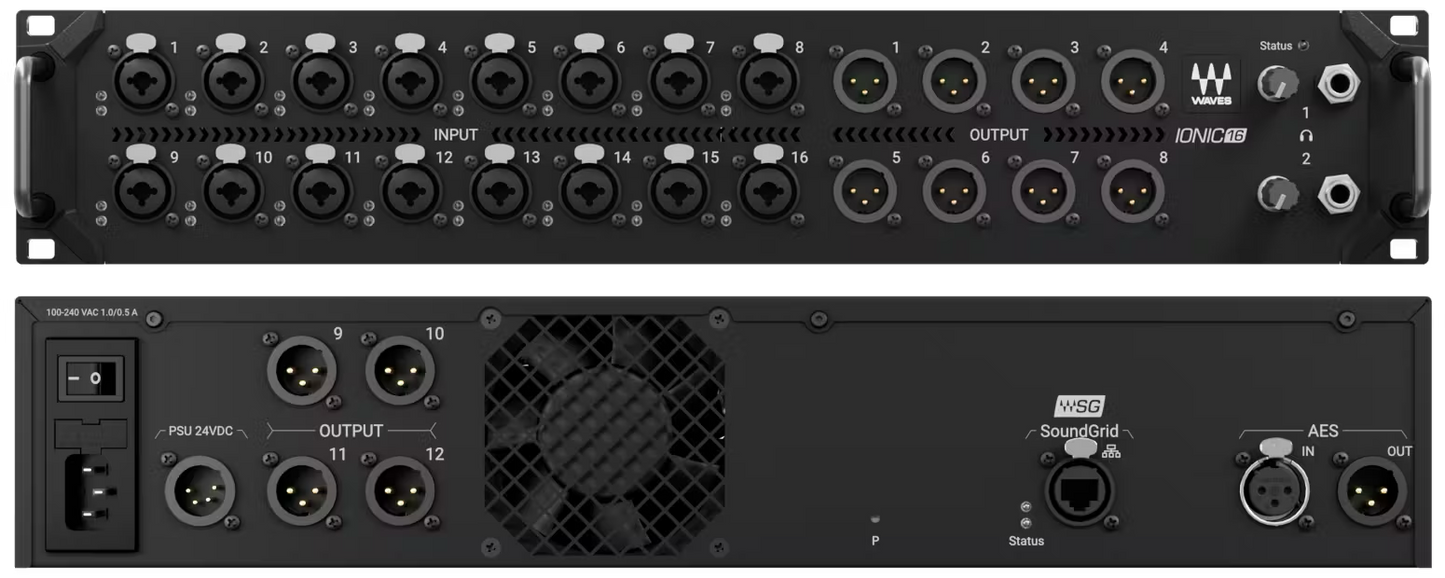

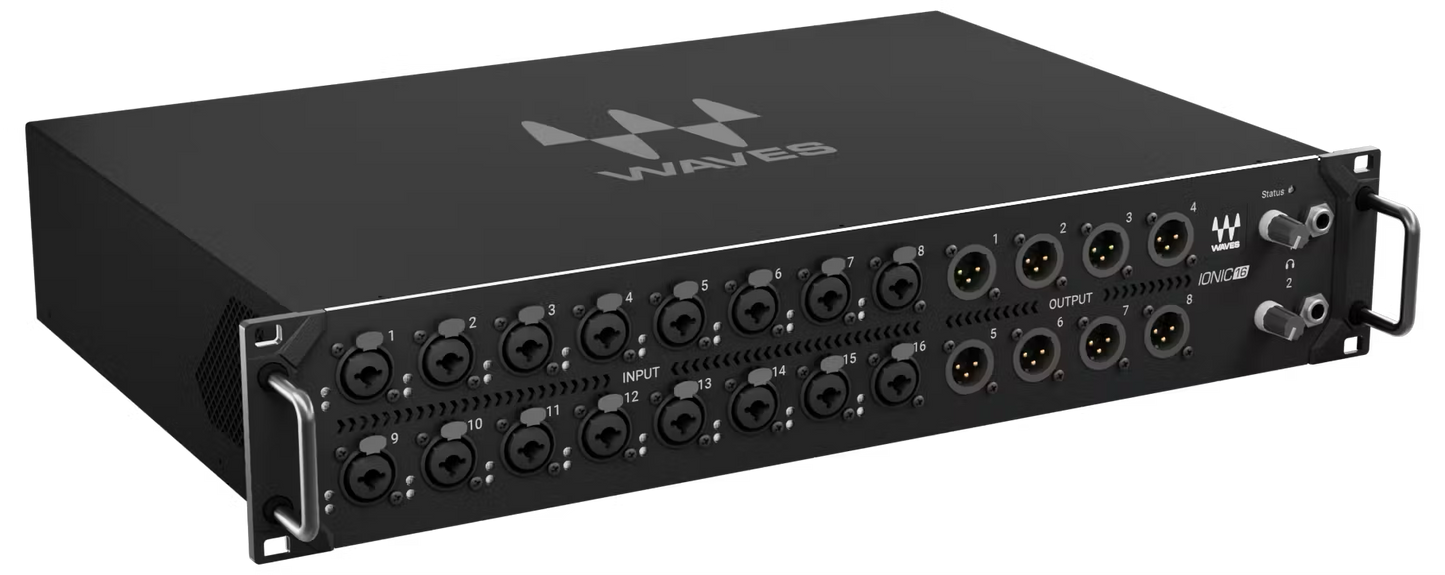

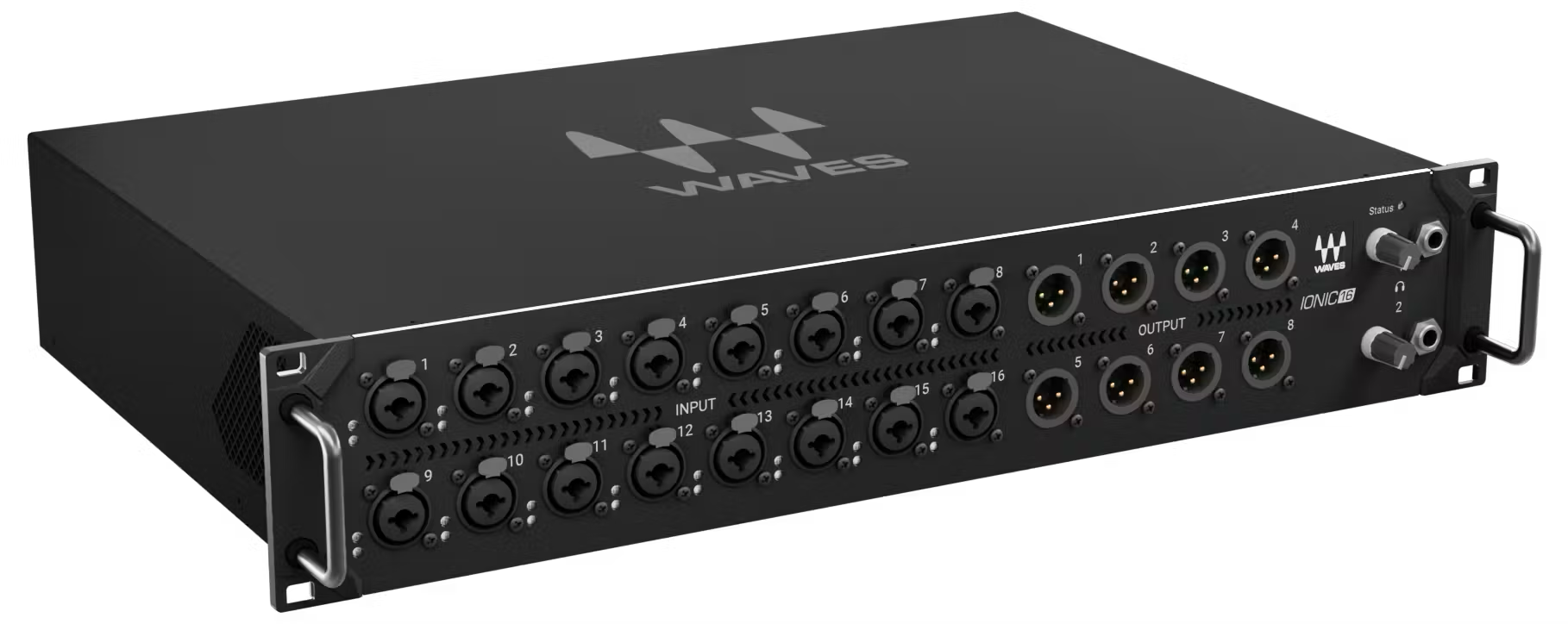

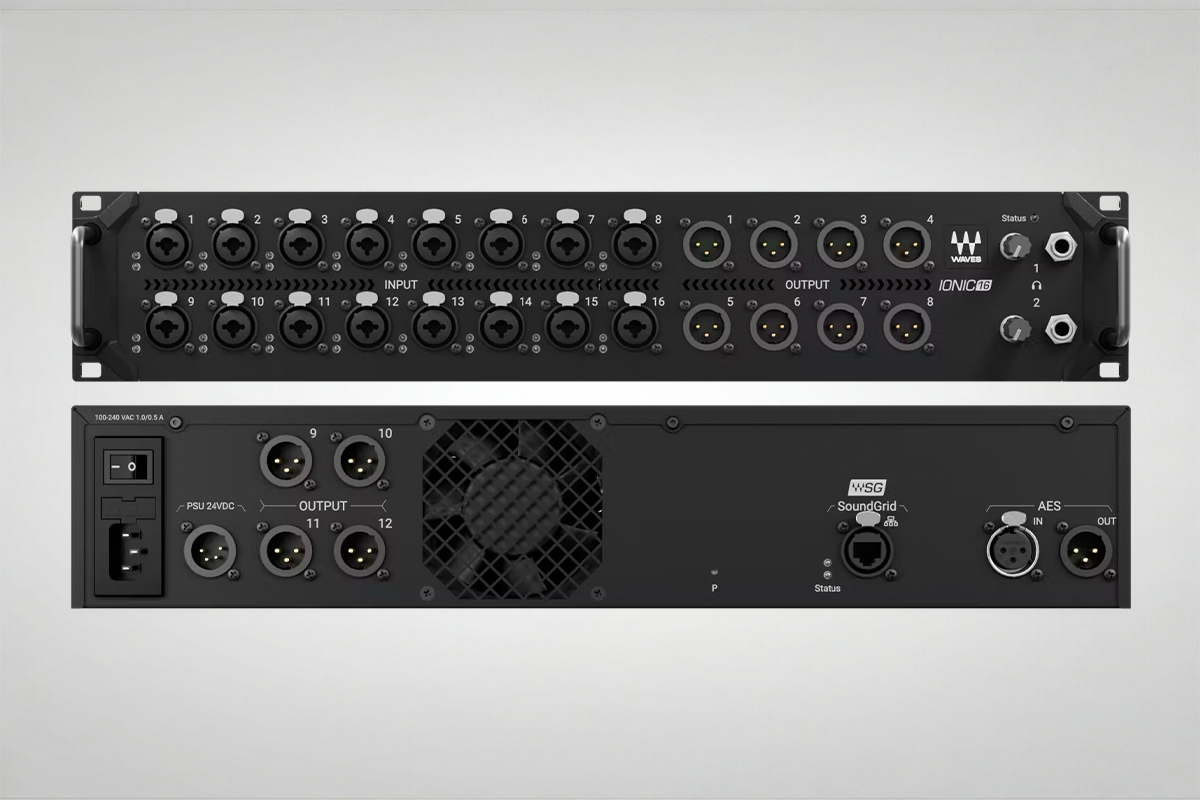

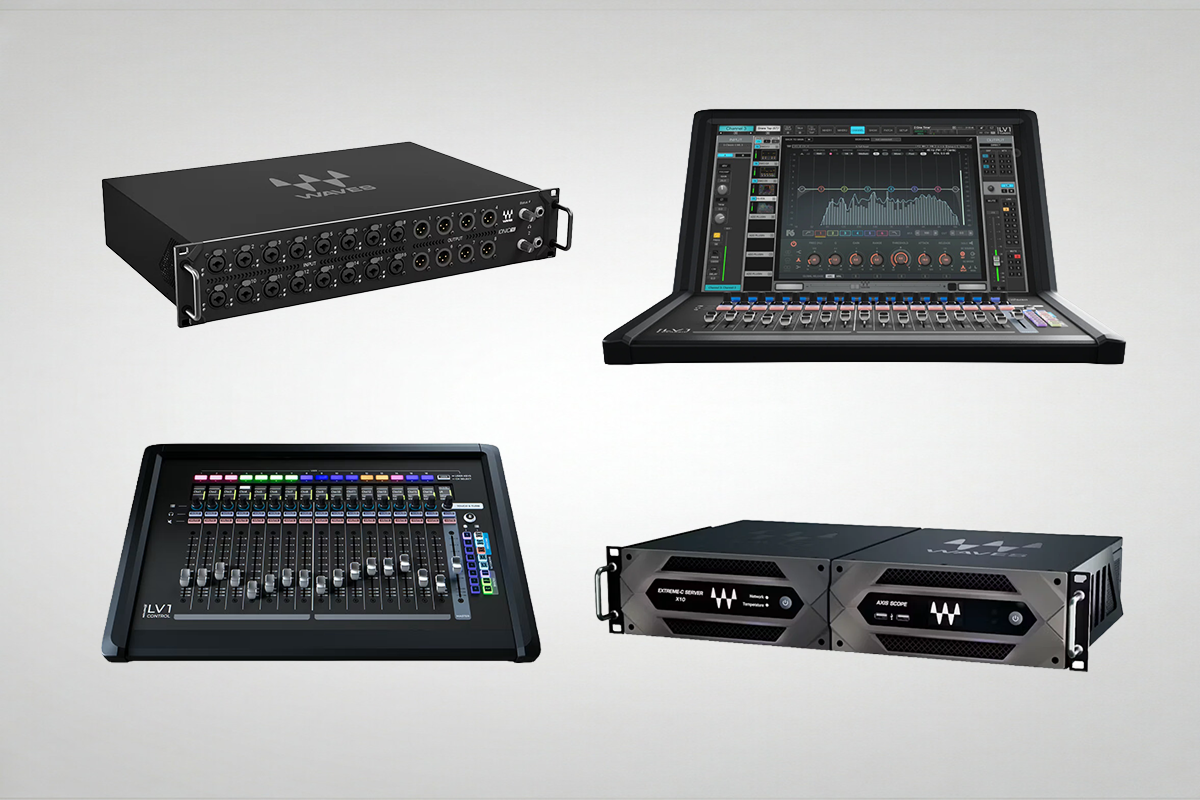

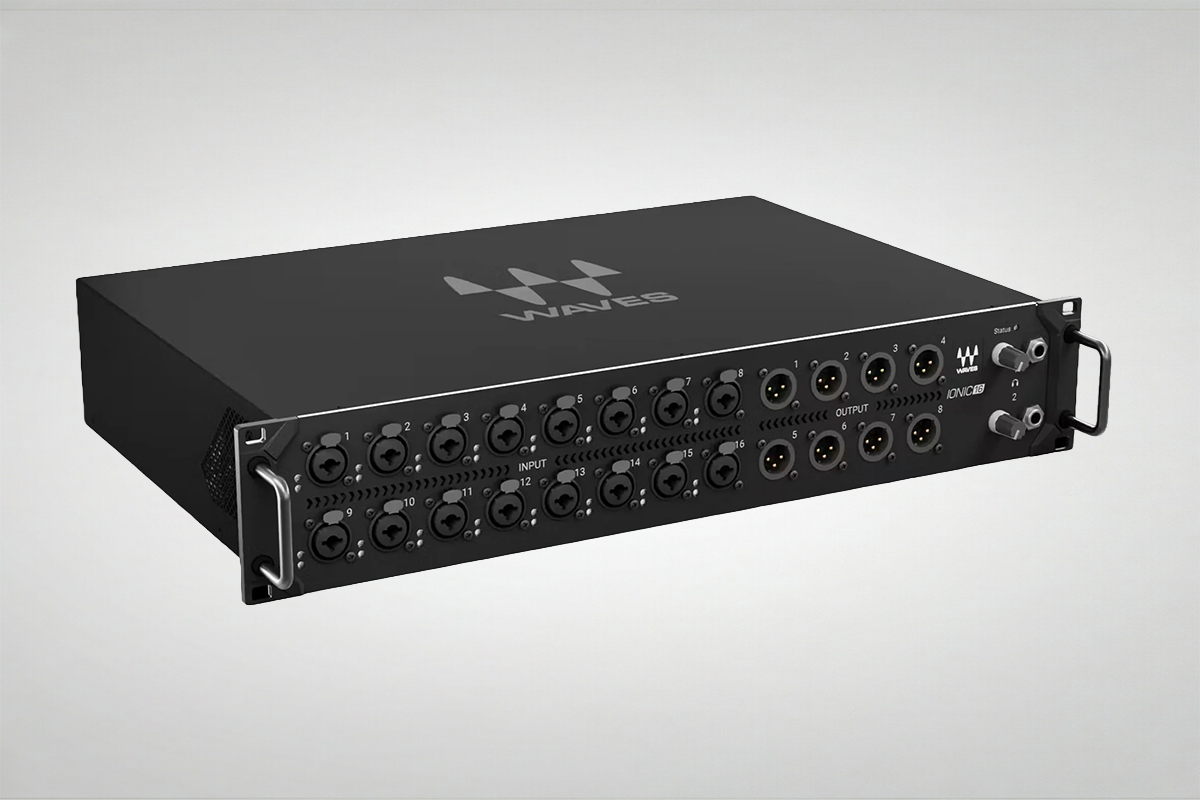

WAVES Ionic 16 Stage Box For LV1 Classic Console

Sample Rates:

• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Microphone/Line Inputs

• Input Gain: adjustable from -3 dB to 60 dB in steps of 1dB
• Frequency response: (+18 dBu input)
  +/- 0.1 dB, 20 Hz to 20 kHz
  +/ -1.0 dB, 10 Hz to 40 kHz
• Dynamic range: >110 dB (20 kHz BW, 0 dB Gain)
• EIN -130 dBu (gain 60 dB, 0 ohms source, A-weighted)
  THD+N -100 dB (997 Hz, +18dBu source, 0 dB Gain, 20kHz BW)
• Input impedance:
  XLR: 2k ohms / 7k ohms, selectable per input
  TRS: 14.6K ohms
• Input Sensitivity:
  XLR: -33 dBu to +27 dBu, adjustable in 1 dB steps
  TRS: -27 dBu to +33 dBu, adjustable in 1 dB steps
• CMRR: 50 dB (20 Hz to 1 kHz, 0 dB gain)
• Crosstalk: > 90 dB (20 Hz to 20 kHz, +27 dBu input, 0 dB gain)
• 48V phantom power switchable per input
• Input transformer simulation, switchable per input
• Front panel signal presence and clip indicator, per channel

Line Output

• Maximum output level: +18 dBu or + 24 dBu, switchable per output
• Frequency Response:
  +/- 0.1 dB, 20 Hz to 20 kHz @ 48 kHz SR
  +0.1 / -1.0 dB, 10 Hz to 40 kHz @ 96 kHz SR
• THD+N: -100 dB @ +24 dBu, -105 dB @ +18 dBu (997 Hz, 20 kHz BW)
• Crosstalk: > 90 dB (20 Hz to 20 kHz)
• Residual output noise: -87 dBu (A-Weighted)
• Output impedance: 150 ohms

Headphones Output

• Adjustable output-gain up to 6V
• Frequency Response:
  +/- 0.1 dB, 20 Hz to 20 kHz @ 48 kHz SR
  +0.1 / -1.0 dB, 10 Hz to 40 kHz @ 96 kHz SR
• THD+N: -80 dB (3V @ 30 ohm load, 997 Hz, 20 kHz BW)
• Output impedance: 20 ohms

AES3

• Input / Output impedance: 110 ohms
• Input SR with auto conversion (SRC)
• Output SR support: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

SoundGrid

• Ethernet 1GB

Power

• 100 V–240 V auto-switching PSU 0.5A / 0.25A, Redundant PSU external input

Operating Temperature

• 0 to 35 degrees Celsius (32 to 95 degrees Fahrenheit)

Dimensions

• 19 x 12 x 3.42 inches (482.1 x 305.9 x 87 mm)

Weight

• 11.7 lbs. (5.3 kg)
