WAVES Ionic 24 Stage Box For LV1 Classic Console
WAVES Ionic 24 Stage Box For LV1 Classic Console
In stock
Couldn't load pickup availability
Waves IONIC 24 – The Perfect Stagebox and I/O for Waves LV1 Classic in stock and available to buy now from Nifty Audio, the UK’s exclusive Waves and DiGiGrid distributor.
Take your Waves LV1 Classic system to the next level with the Waves IONIC 24 — a premium 24-channel preamp and I/O interface built for seamless SoundGrid integration. Designed specifically for live sound professionals, the IONIC 24 offers world-class audio quality, rugged reliability, and the expandability you need for modern stage and broadcast environments.
Key Features:

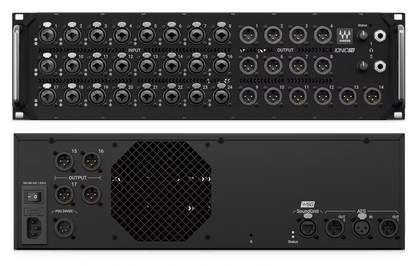

• 24 Pristine Mic/Line Inputs – Capture every performance with ultra-clean preamps delivering outstanding clarity, dynamic range, and low noise.
• 18 Premium Line Outputs – Selectable between 18/24 dBu
• Optimized for Waves LV1 Classic – Seamless SoundGrid connectivity makes the IONIC 24 the ideal I/O for LV1 systems in any live or studio setup.
• Ultra-Low Latency Processing – Enjoy real-time plugin processing and flexible routing with virtually zero latency, essential for professional live sound.
• Road-Ready Construction – Rugged, compact, and built to withstand the demands of touring and installation environments.

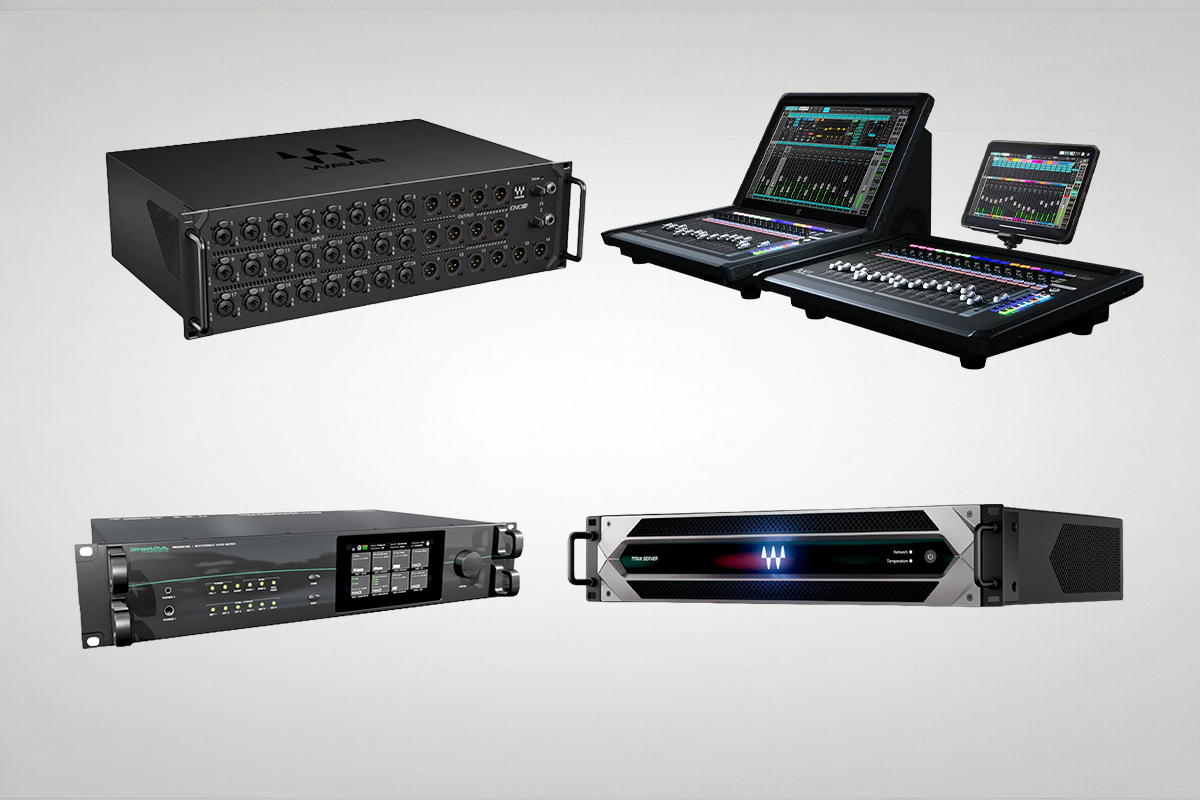

• Expandable SoundGrid System – Easily scale your setup by adding more SoundGrid devices, ensuring adaptability for any future production.
• High-Resolution Audio Conversion – Premium A/D and D/A converters preserve every detail of your source audio with stunning accuracy.
Applications:
• Live Sound – The perfect 24-channel stagebox for FOH, monitors, and broadcast workflows with Waves LV1 Classic.
• Studio Recording – Delivers pristine signal capture for professional recording and overdubbing.
• Broadcast – Provides reliable, high-quality I/O for both live and recorded broadcast applications.
Why Choose the Waves IONIC 24 for Your LV1 Setup?
The Waves IONIC 24 is the ultimate stagebox solution for Waves LV1 Classic users. Offering premium sound quality, robust design, and effortless SoundGrid integration, it’s built to deliver flawless audio performance — on any stage, in any studio, or in any broadcast environment. Available now from Nifty Audio with fast next day UK delivery.
Collapsible content
Technical Specs
Sample Rates:
- 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Microphone/Line Inputs
- Input Gain: adjustable from -3 dB to 60 dB in steps of 1dB
- Frequency response: (+18 dBu input)
+/- 0.1 dB, 20 Hz to 20 kHz
+/ -1.0 dB, 10 Hz to 40 kHz - Dynamic range: >110 dB (20 kHz BW, 0 dB Gain)
- EIN -130 dBu (gain 60 dB, 0 ohms source, A-weighted)
THD+N -100 dB (997 Hz, +18dBu source, 0 dB Gain, 20kHz BW) - Input impedance:
XLR: 2k ohms / 7k ohms, selectable per input
TRS: 14.6K ohms - Input Sensitivity:
XLR: -33 dBu to +27 dBu, adjustable in 1 dB steps
TRS: -27 dBu to +33 dBu, adjustable in 1 dB steps - CMRR: 50 dB (20 Hz to 1 kHz, 0 dB gain)
- Crosstalk: > 90 dB (20 Hz to 20 kHz, +27 dBu input, 0 dB gain)
- 48V phantom power switchable per input
- Input transformer simulation, switchable per input
- Front panel signal presence and clip indicator, per channel
Line Output
- Maximum output level: +18 dBu or + 24 dBu, switchable per output
- Frequency Response:
+/- 0.1 dB, 20 Hz to 20 kHz @ 48 kHz SR
+0.1 / -1.0 dB, 10 Hz to 40 kHz @ 96 kHz SR - THD+N: -100 dB @ +24 dBu, -105 dB @ +18 dBu (997 Hz, 20 kHz BW)
- Crosstalk: > 90 dB (20 Hz to 20 kHz)
- Residual output noise: -87 dBu (A-Weighted)
- Output impedance: 150 ohms
Headphones Output
- Adjustable output-gain up to 6V
- Frequency Response:
+/- 0.1 dB, 20 Hz to 20 kHz @ 48 kHz SR
+0.1 / -1.0 dB, 10 Hz to 40 kHz @ 96 kHz SR - THD+N: -80 dB (3V @ 30 ohm load, 997 Hz, 20 kHz BW)
- Output impedance: 20 ohms
AES3
- Input / Output impedance: 110 ohms
- Input SR with auto conversion (SRC)
- Output SR support: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

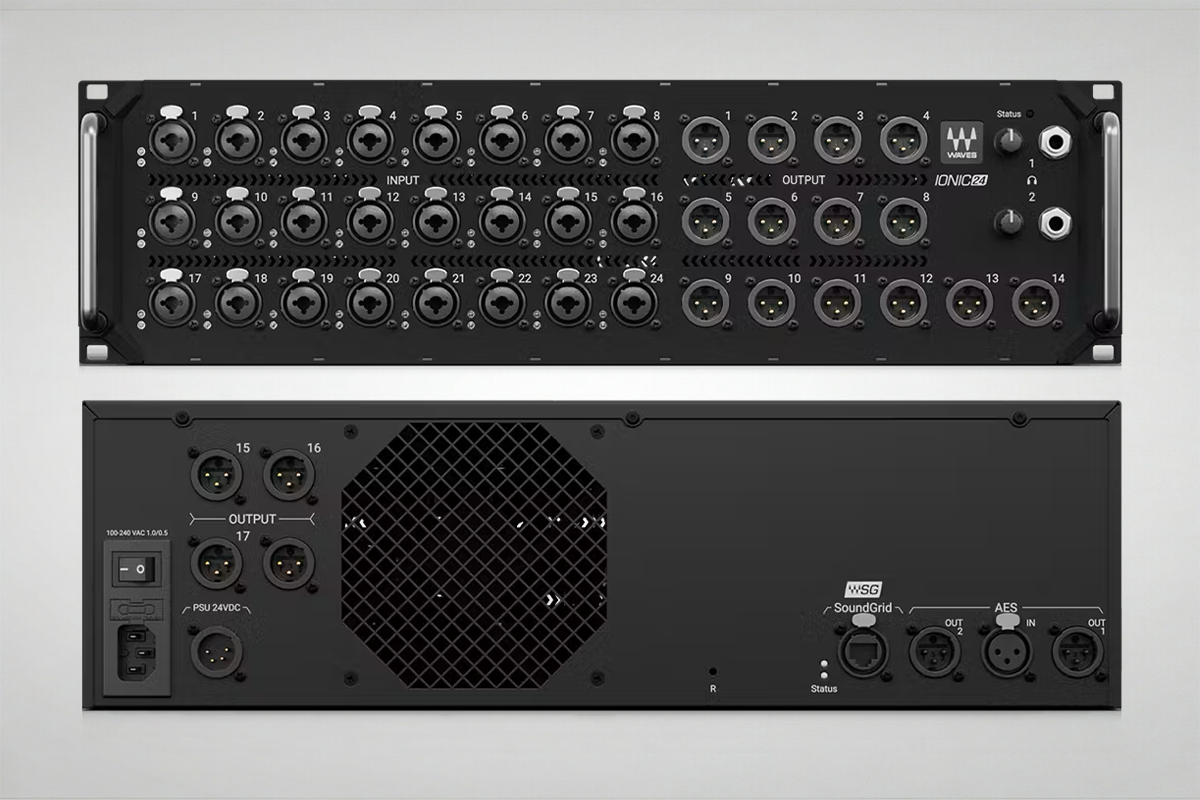

SoundGrid
- Ethernet 1GB
Power
- 100 V–240 V auto-switching PSU 0.5A / 0.25A, Redundant PSU external input
Operating Temperature
- 0 to 35 degrees Celsius (32 to 95 degrees Fahrenheit)
Dimensions
- 19 x 12.2 x 5.17 inches (482.1 x 310.8 x 131.4 mm)
Weight
- 14.77 lbs (6.7 kg)
Case Studies
FAQ
Can I mix IONIC 16 and IONIC 24 in the same system?
Yes. Both units operate on the same SoundGrid network protocol, allowing them to be combined within a single system for expanded input and output capacity.
They can be used together in:
- LV1 systems
- SuperRack setups
- Larger distributed audio networks
If you wish to chat more about how to build a system around the WAVES Ionic 24 Stage Box For LV1 Classic Console or integrate this into your current system, give us a call or email at:
