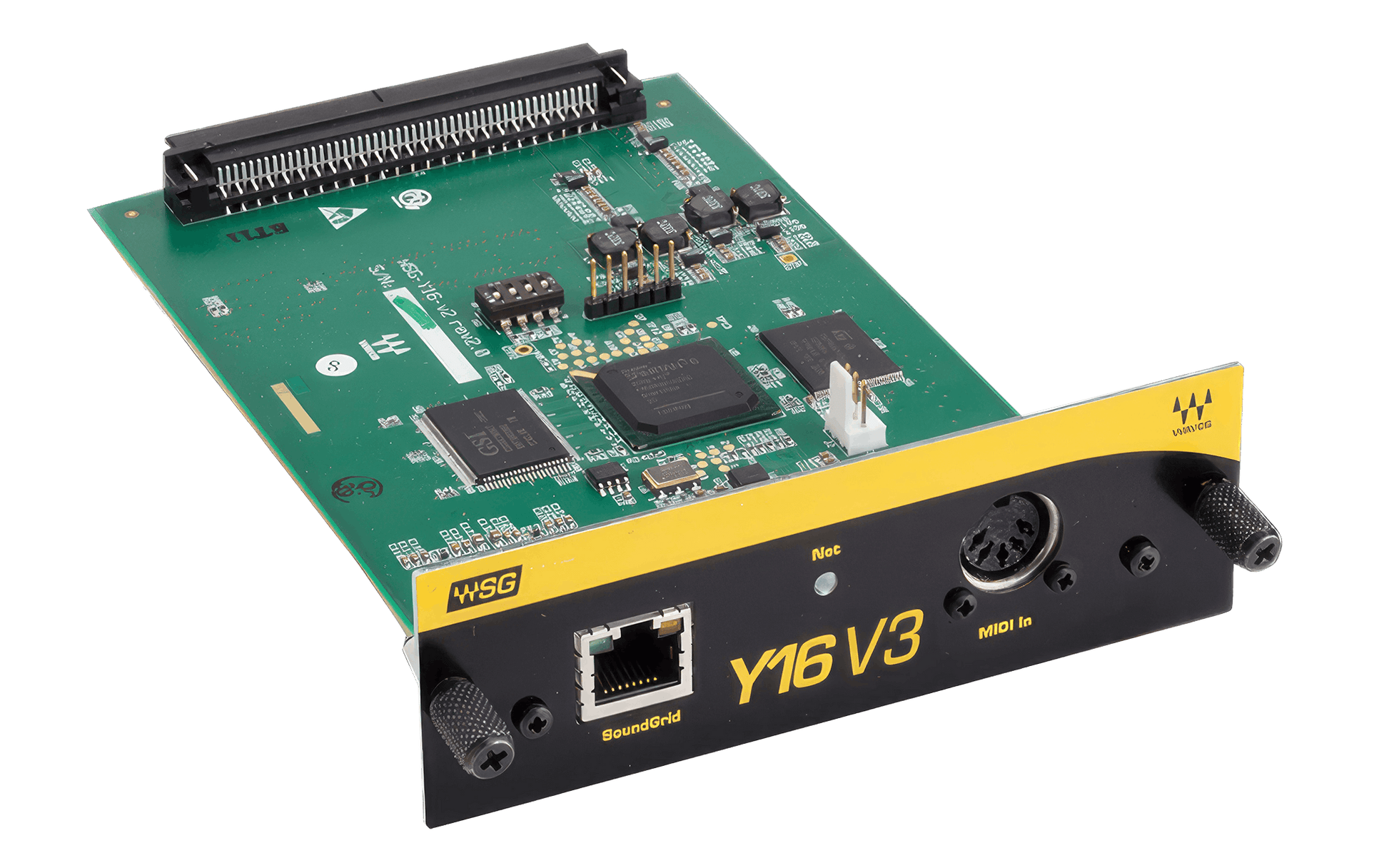

WAVES WSG-Y16 V3 mini-YGDAI Yamaha I/O Card
WAVES WSG-Y16 V3 mini-YGDAI Yamaha I/O Card
In stock
Couldn't load pickup availability
The WAVES WSG-Y16 V3 mini-YGDAI I/O Card in stock and available to buy now from Nifty Audio, the UK’s exclusive Waves and DiGiGrid distributor.
Add the Power of Waves Plugins to Yamaha Digital Consoles
The Waves WSG-Y16 I/O card brings the power of Waves’ award-winning plugins to Yamaha digital consoles, integrating seamlessly with the SoundGrid platform. Live sound engineers can now access world-class EQs, compressors, reverbs, and more with ultra-low latency directly from their Yamaha console.
Paired with a SoundGrid DSP server and a standard Mac or PC, the WSG-Y16 card enables 16 channels of real-time plugin processing, multitrack recording, playback, and even syncing across multiple consoles.
Key Features:
-
Seamless integration of Waves plugin processing into Yamaha digital consoles
-
High-speed SoundGrid platform for processing, recording, and playback
-
Ultra-low latency across supported sample rates (44.1 to 96 kHz)
-
16 I/O audio channels at 44.1/48 kHz, 8 I/O channels at 88.2/96 kHz
-
Compatible with standard computers and network switches
-
Record and play back via ASIO/Core Audio using the SoundGrid Studio application
-
Clock Sync over Ethernet (SoE) enables digital splits and console networking
-
MIDI input port for console-based MIDI control
-
Works alongside WSG-Y16 V1 and V2 cards in compatible Yamaha consoles
-
Comprehensive redundancy and recovery options for maximum reliability
-
Supports syncing multiple consoles together via Ethernet
-
Add up to four cards for expanded 64/32-channel processing and recording
Expand your Yamaha digital console with the ultimate in plugin processing, flexibility, and performance powered by Waves.
Collapsible content
Technical Specs
The following Yamaha consoles and mixers are compatible with the WSG-Y16 mini-YGDAI card:
Console Model
WSG-Y16 I/O cards
- Rivage PM3 / PM5 / PM7 / PM10 - x 4 Cards
- PM5D / PM10 / DM2000 / O2R96 / DME64N - Upto 4 Cards
- M7CL / CL Series - Upto 3 Cards
- DM1000 / LS9-32 / QL Series - Upto 2 Cards
- LS9 / O1V96 / DME24N / TXn series - 1 Card
WSG-Y16 V3 is not supported with Multirack
Case Studies
FAQ
Which Yamaha consoles are compatible with the Waves WSG-Y16?
The Waves WSG-Y16 is compatible with Yamaha digital mixers that support Mini-YGDAI expansion cards, including selected:
- Yamaha CL Series
- Yamaha QL Series
- Yamaha M7CL
- Yamaha LS9
- Yamaha PM5D
- Other compatible Mini-YGDAI-equipped consoles
Compatibility may vary depending on firmware and system configuration.
How many channels does the WSG-Y16 support?
The WSG-Y16 supports:
- 16 input and 16 output channels at 44.1/48 kHz
- 8 input and 8 output channels at 88.2/96 kHz
with 24-bit audio resolution.
What latency does the Waves WSG-Y16 provide?
The WSG-Y16 is designed for ultra-low-latency audio processing suitable for professional live sound applications where monitoring and real-time plugin response are critical.
Can I use the WSG-Y16 for multitrack recording?
Yes. The WSG-Y16 supports multitrack recording and playback over SoundGrid networks, including virtual soundcheck workflows commonly used in live production.
What plugins can I use with the Waves WSG-Y16?
The WSG-Y16 supports Waves and third-party SoundGrid-compatible plugins including:
- Waves SSL plugins
- Vocal Rider
- CLA compressors
- H-Reverb
- F6 Dynamic EQ
- X-FDBK feedback suppression
- Live vocal processing tools
and many more...
