WAVES Hear Technologies Dante-WSG XS
WAVES Hear Technologies Dante-WSG XS
In stock
Couldn't load pickup availability
The Dante-WSG XS brings two of audio’s most widely adopted ecosystems together in a format that is compact and uncomplicated.
Designed by Hear Technologies in collaboration with Waves, it creates a seamless bridge between Dante networks and SoundGrid processing, giving engineers a compact, reliable way to integrate Waves’ real-time plugin environment into modern audio infrastructures.
Supporting up to 64 channels of bidirectional audio at 44.1–48 kHz, the Dante-WSG XS delivers professional-grade connectivity without demanding additional rack space or complexity.
Built for Modern Workflows
As Dante continues to define networked audio across live sound, broadcast and installed systems, flexibility has become just as important as performance.

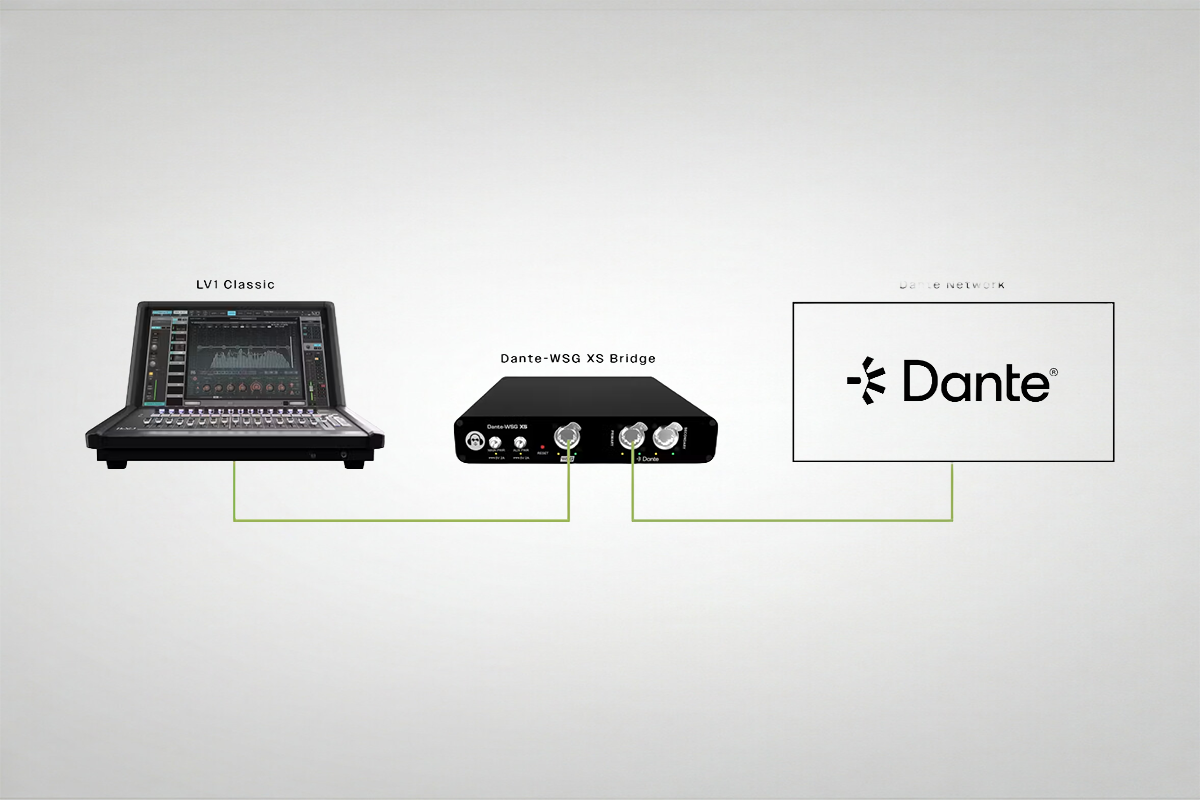

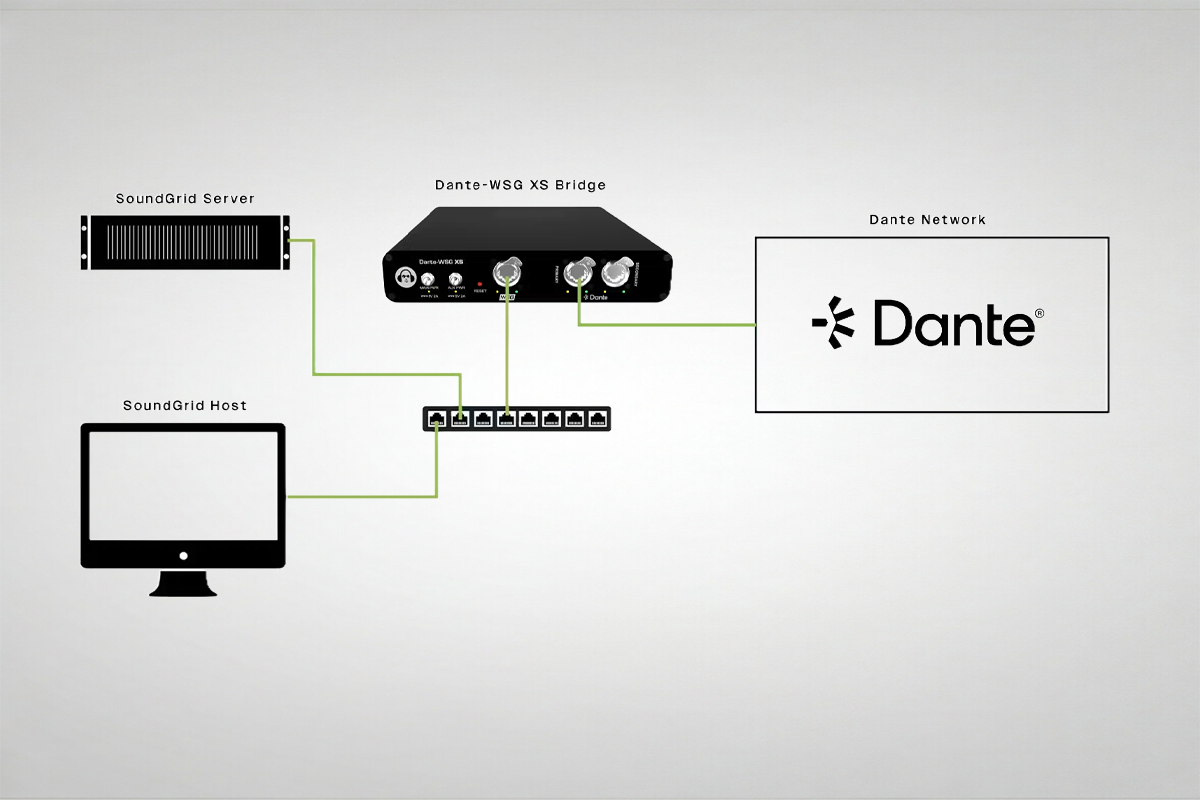

The Dante-WSG XS enables engineers to move effortlessly between platforms, connecting SoundGrid servers, LV1 systems and SuperRack environments directly into Dante-based workflows.
The result is a streamlined signal path that preserves the low-latency performance SoundGrid is known for while expanding integration possibilities across increasingly connected production environments.
Compact by Design
Not every production has the luxury of spare rack space.
With its half-rack footprint and lightweight construction, the Dante-WSG XS is designed for flypacks, touring systems, portable production rigs and installations where efficiency matters.
Its reduced form factor makes deployment easier without compromising capability, offering the same professional bridge between Dante and SoundGrid in a package that feels purpose-built for contemporary workflows.
Confidence in Every Connection
The best technology disappears into the background, allowing engineers to focus entirely on the mix.
Supporting up to 64 channels of bidirectional audio at standard sample rates and 32 channels at higher sample rates, the Dante-WSG XS delivers dependable network performance with the stability required for demanding live and installed environments.
It is a straightforward solution to a complex challenge, bringing together the power of Waves processing and the ubiquity of Dante in a way that feels natural, efficient and ready for the next production.
Collapsible content
Technical Specs
System I/O
Latency
Typical Dante to WSG or WSG to Dante Latency:*
0.787ms @ 44.1kHz
0.778ms @ 48.0kHz
0.580ms @ 88.2kHz
0.520ms @ 96.0kHz
*For round-trip time, latency is exactly double
**Does not include any A/D or D/A conversion time or plugin processing time
Clock Source
A: Input “A” as clock master (Dante)
B: Input “B” as clock master (WSG)
Sampling Rate
44.1kHz, 48kHz, 88.2kHz, 96kHz
Waves SoundGrid Card
Audio Inputs
64 (8-pin RJ45 jack 1000BaseT Ethernet for WSG audio network)
Audio Outputs
64 (8-pin RJ45 jack 1000BaseT Ethernet for WSG audio network)
Sampling Rates (Supported)
44.1kHz, 48kHz, 88.2kHz, 96kHz
Dante Card
Audio Inputs
64 @ 44.1kHz or 48kHz; 32 @ 88.2kHz or 96kHz (8-pin RJ45 jack 100BaseT or 1000BaseT Ethernet for Dante audio network)
Audio Outputs
64 @ 44.1kHz or 48kHz; 32 @ 88.2kHz or 96kHz
(8-pin RJ45 jack 100BaseT or 1000BaseT Ethernet for Dante audio network)
Sampling Rates (Supported)
44.1kHz, 48kHz, 88.2kHz, 96kHz
Physical
Dimensions
H: 1.64” / 4.17 cm
W: 8.66” / 22 cm
D: 8.95” / 22.74 cm
Unit Weight
3 lbs. / 1.36 kg
Mounting
1U Shelf or Rack Ears
Power
External Power Supply
4.75 watts (5V, 950mA)
Case Studies
FAQ
How many channels does the WSG Bridge support?
The WSG Bridge supports up to 64 channels of bidirectional audio between Dante and SoundGrid at sample rates from 44.1kHz to 96kHz.
Can I use Waves plugins on a Dante network with the WSG Bridge?
Yes. The WSG Bridge allows you to run Waves plugins on a Dante network by connecting to a Waves SoundGrid Server for real-time DSP processing.
What latency can I expect from the WSG Bridge?
The system is built around ultra-low-latency SoundGrid processing.
In a properly configured setup, engineers can achieve plugin processing latency well below what’s typically expected from native systems, making it suitable for live vocals, monitor mixes, broadcast chains, and time-sensitive live production environments. Waves SoundGrid systems are capable of operating as low as 0.8ms network latency under optimal conditions.
Who is the WSG Bridge designed for?
The WSG Bridge is designed for professional audio environments where Dante infrastructure and Waves processing need to coexist seamlessly.
Typical applications include:
- Touring systems
- Broadcast and OB trucks
- Theatre installations
- Houses of worship
- Recording studios
- Hybrid live-stream production
- Large-scale installed AV systems
It’s especially valuable in systems where Dante is already deeply integrated and replacing infrastructure simply isn’t practical.
If you wish to chat more about how to build a system around the WAVES Hear Technologies Dante-WSG XS or integrate this into your current system, give us a call or email at:
